Germany QNix4200P5 magnetic Film Thickness Gauge split 0-5000um

SE
The range of the German Nix QNix4200P5 is 0-5000um, which is a split Film Thickness Gauge, the principle of magnetic Induction thickness measurement, the QNix4200P/5 magnetic Film Thickness Gauge adopts Hall Sensors, and the measurement Stability is good.
Model：
Contact
Details SPEC OI
Similar products

Qnix QNix4200P5 Coating Thickness GaugeSPEC

Qnix QNix4200P5 Coating Thickness GaugeDetails

Qnix QNix4200P5 Coating Thickness GaugePacking list

SKU
NB016667
Measurement principle
Magnetic Induction
Measurement range
0~5000μm
margin of error
±3%
Resolution
0.1μm|1μm
Minimum measurement surface
25mm
Minimum radius of curvature
Convex 5mm; Concave 25mm
thinnest substrate
0.2mm(F)
probe
Split probe
Probe material
ruby
Calibrated Certificate
Yes.
Calibrated mode
No need to calibrate
Unit display
μm
Interface
USB
Data storage
Temperature -10~60 ℃ (14~ 140 ° F)
Power Supply
2 AA batteries
Standards
DIN EN ISO 2808, ISO 2178, ASTM B 499, ASTM D 7091
Language
German, English
Display screen
LCD screen
Operating temperature
0~50℃
Machine Weight
105g
Machine size
100*60*27mm
QNix4200P5
Coating Thickness Gauge

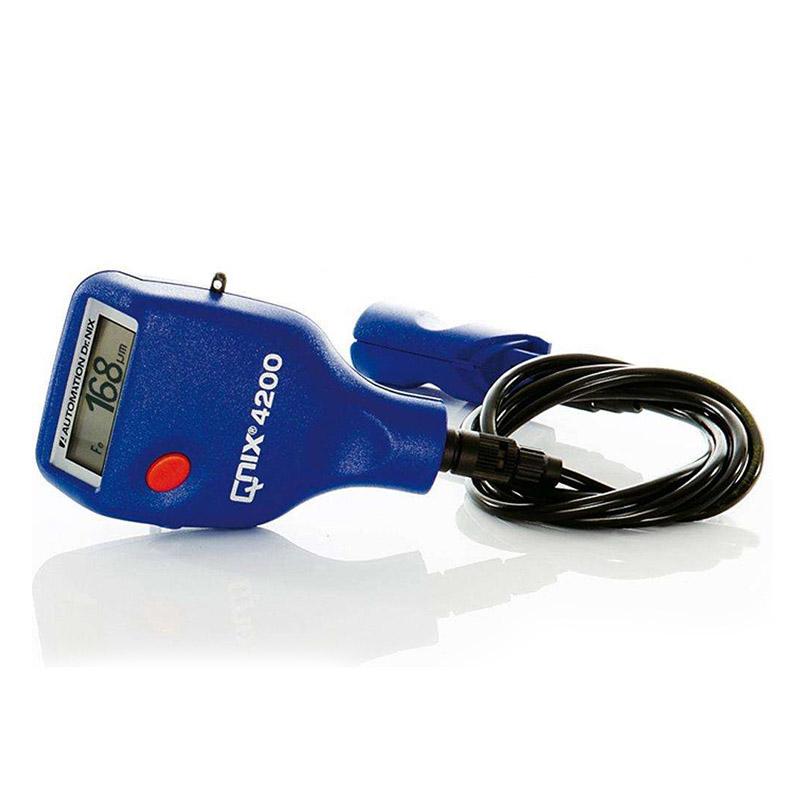

Germany QNix4200P5 magnetic Film Thickness Gauge split 0-5000um Picture

Introduction

Germany's QNix4200 magnetic paint Film Thickness Gauge is widely used in the fields of coatings and automotive coatings. It is a standard split coating Thickness Gauge that uses an iron-based probe. The measurement range of QNix4200P/5 is 0~5000μm. The minimum measurement diameter of the QNix4200 magnetic paint Film Thickness Gauge is 25mm and has a temperature compensation function.

German QNix4200 magnetic induction coating Thickness Gauge display diagram

product advantages

1. Simple and fast measurement

2. No calibration required

3. Automatic switch on and off

4. Large range FE: 0-5000um NFE: 0-3000um

5. Dual-purpose probe, high cost performance

6. Hall sensor makes measurement more stable

7. Sound synchronization during measurement

8. Ruby wear-resistant head, long life

9. Backlight LED display for clearer readings

10. Automatically identify the measurement substrate

11. Split probe to meet different measurement environments

plan

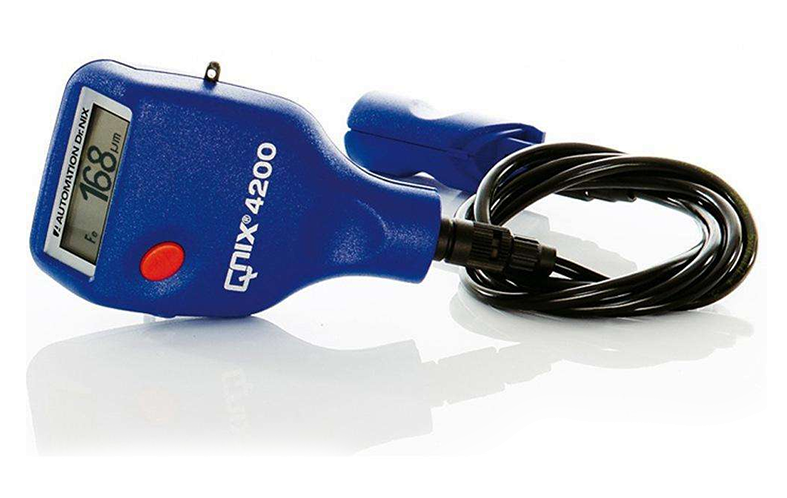

Display picture of German Nix QNix4200P/5 magnetic paint Film Thickness Gauge

German NIX QNIX full range of Thickness Gauges

model4200/4200P4500/4500P1200150075008500
matrixFeFe/NFeFeFe/NFeFe, NFe, Fe/NFeFe/NFe
Probe formOne body, two bodiesOne bodyOne body, two bodiesWired/wireless split
Measuring range

0-3000μm​​

0-5000um

Fe:0-3000μm

0-5000um

NFe: 0-3000μm

0-2000μm0-5000μm

0-2000μm

0-5000μm

(optional)

measurement accuracy0-50μm: ≤±1μm; 50-1000μm: ≤±1.5%; 1000-2000μm: ≤±2%; 2000-5000μm: ≤±3%
Display accuracy0.1μm0-99μm: 0.1μm; 100μm-999um: 1um; above 999um, 0.01mm0.1um/0.01um (optional)
Operating temperature-10 - +60℃
Temperature compensation0-50℃
storage-1500M typeModel 7500MType 8500M
3900 measured values, 999 data sets9999 readings, 100 data sets
Statistics function-Average, maximum, minimum, standard deviation
Over limit alarm-Upper and lower limits
small matrix10mm×10mm
small curvatureConvex and concave radius: 3mm/25mmConvex radius: 5mm, concave radius: 25mm
thin matrixFe: 0.2mm, NFe: 0.05mm
power supply2 AA batteries1 9V alkaline battery
2 AA batteries
weight110g130g150g130g
size110×60×27mm166×64×34mm110×60×24mm124mm×67mm×33mm


FAQ
QQNix this film thickness gauge can slide continuous thickness measurement?
A Hello, this one is not supported.
QQNix4200P5 Coating thickness gauge can be used to test anti-corrosion coatings?
A Yes, this is a magnetic Induction Coating thickness gauge. The range is 5mm.
QDo you have the Coating thickness gauge involved in ISO2178?
A The QNix4200P5 Coating thickness gauge can be
QHow many measurement ranges does the Nix 4200P have?
A Hello, there are two kinds of QNix4200P/5 film thickness gauge, one is 0~ 3000μm and the other is 0~ 5000μm.
QHow to maintain the QNix4200P/5 Coating thickness gauge?
A Hello, the thickness gauge should prevent falling, moisture-proof and corrosion-proof gas contact, and the probe should be checked and cleaned regularly to avoid residual dirt affecting the subsequent measurement results.
