900-357

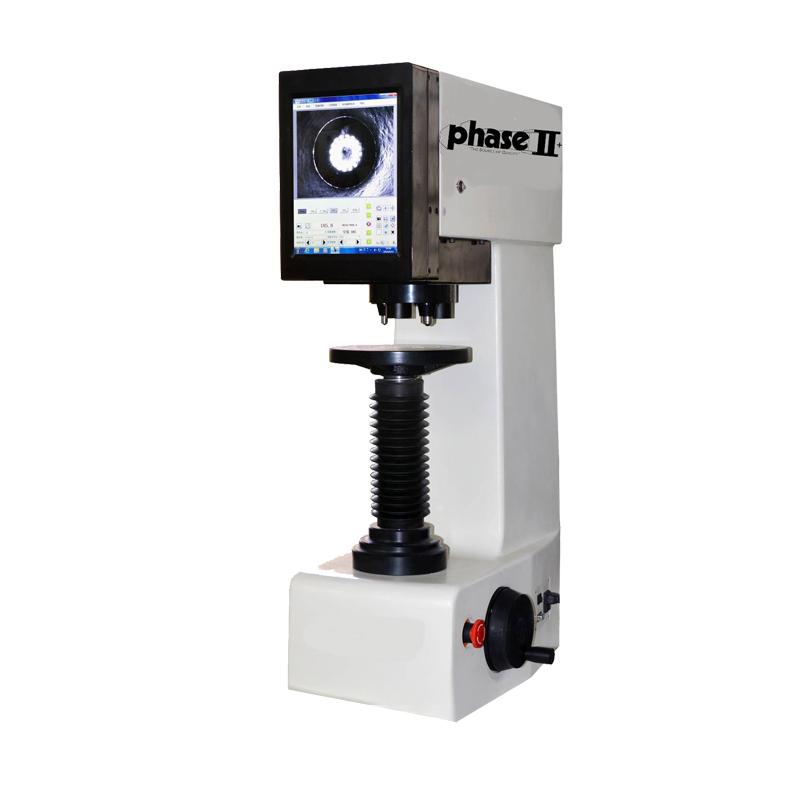

PhaseII 900-357 Brinell Hardness TesterSPEC
PhaseII 900-357 Brinell Hardness TesterDetails
PhaseII 900-357 Brinell Hardness TesterPacking list
- SKU
- NB016737
- test force
- 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf
- Hardness testing range
- 3.18~653HBW
- Test loading force application method
- Automatic (load/hold/unload)
- Hardness reading
- Display indentation, touch screen automatically gets Hardness value
- computer system
- CPU: Intel I3, Memory: 2G, SSD: 32G
- Hardness system that can be converted
- HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBS, HBW
- Interface
- Built-in USB interface, VGA interface, network interface
- Objective lens and indenter switching
- Automatic identification and automatic switching of three indenter and double objective lenses
- objective lens
- 1× ，2×
- Microscope magnification
- 20X，40X
- resolution
- 1.25μm ，0.625μm
- Load time
- 0~95s
- Maximum test space in the vertical direction
- 260mm
- The maximum distance from the center of the indenter in the horizontal direction to the outer wall
- 150mm
- Power Supply
- AC220V，50Hz
- execution standard
- ISO 6506，ASTM E10-12，JIS Z2243，GB/T 231.2
- Dimension
- 600*330*890mm
- Outer box size
- 820×460×1170mm
- Net Weight
- 150kg
- Gross Weight
- 180kg
Features
The load cell drive system provides precise control of the test force
Direct touchscreen control
3 ball indenters and 2 sets of objectives cover all common Brinell hardnesses
The indication value is stable and the accuracy is high
It is suitable for laboratories, production workshops, tool libraries, testing laboratories and so on
Measuring range: 8-650HBW
Features
Innovative, closed-loop technology. This Brinell Hardness Tester uses a new load cell technology. The force is applied via a closed-loop control unit consisting of a load cell, a DC motor and an electronic measurement control unit. The test force in the test process is automatically and accurately controlled, and the control accuracy is up to 0.5%. With conventional weight loading or open-loop control systems, the common overload or underload problem can be eliminated. The absence of mechanical weight construction not only eliminates friction problems, but also makes the Hardness Tester less sensitive to weight misalignment or displacement caused by vibration.

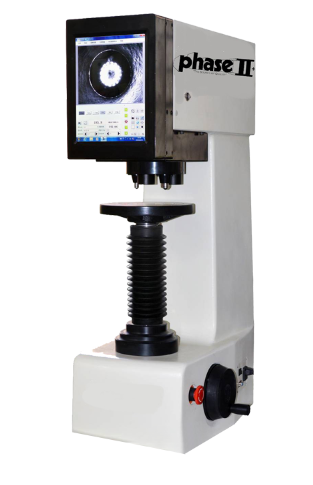

The Brinell Hardness Tester 900-357 combines a tablet and a Brinell Hardness Tester into a complete new model of Brinell Hardness Tester. On the tablet, you can choose to set all the parameters. The touch screen display is clear, the operation is simple and can eliminate misoperation well. The clear CCD screen interface directly displays the dynamic indentation image, focuses the surface, and automatically measures the Brinell hardness value. The operator is able to select a hardness system that can be converted, save the results of each measurement and generate an image report. The load of the test force is carried out using a specialized load cell system in conjunction with a precision mechanical drive system.
