US Phase II UTG-2800 Ultrasonic Thickness Gauge for Metal and Non-metallic Materials

The US Phase II UTG-2800 Ultrasonic Thickness Gauge uses professional ultrasonic technology, intelligent operation and high-end model functions, providing basic measurement, scanning, Speed of sound adjustment, large memory and USB output functions. This dynamic multi-function Ultrasonic Thickness Gauge is mainly used for thickness measurement of metal and Non-metallic materials
Model：
Contact
Details SPEC CAT
Similar products

PhaseII UTG-2800 Ultrasonic Thickness GaugeSPEC

PhaseII UTG-2800 Ultrasonic Thickness GaugeDetails

PhaseII UTG-2800 Ultrasonic Thickness GaugePacking list

SKU
NB016739
Measurement range
0.5~300mm
Probe style
Integrated probe
Probe Frequency
5MHz
Speed of sound
1000~9999m/s
measurement error
±(0.5%H+0.04)mm
Display resolution
0.1/0.01mm
Data storage
20 groups (100/group)
Operating language
Chinese
Display
4-Bit LCD with backlight
Host size
150*74*33mm
Weight
245g
Application
Steel, Titanium, Plastic Products, Ceramics, Glass and Miscellaneous Ultrasonic Conductors
Power Supply
2 * 3V AA alkaline battery
Max/min alarm preset
Yes.
Environmental temperature
0~50℃
Probe Frequency
4Hz
Interface
USB
micro printer
optional
Operating Time
More than 100h (when the backlight is not turned on)
Power consumption
Operating current not more than 3v
UTG-2800
Ultrasonic Thickness Gauge

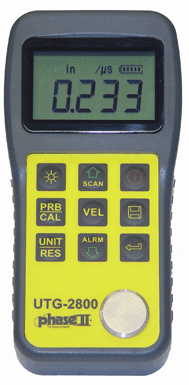

US Phase II UTG-2800 Ultrasonic Thickness Gauge for Metal and Non-metallic Materials Picture

The UTG-2800 uses professional ultrasonic technology, intelligent operation and high-end model functions, which can provide basic measurement, scanning, sound velocity adjustment, large memory and USB output functions. This dynamic multi-function ultrasonic Thickness Gauge is primarily used to measure the thickness of metallic and non-metallic materials such as steel, titanium, plastics, ceramics, glass, and other ultrasonic conductors. As long as the upper and lower surfaces of the workpiece are parallel, the UTG-2800 can accurately display the measured values in metric or imperial systems with a simple calibration of known thickness and sound velocity.

UTG-2800

FAQ
QFor the UTG-2800 matching high temperature probe, can the required high temperature coupler be replaced by butter?
A High temperature coupler, there is no substitute, it needs to withstand high temperature of 350 degrees. Temperature-regulating couplers can be replaced by butter, oil, and anti-rust oil.
QCan this Ultrasonic Thickness Gauge print data?
A Hello, yes, but you need to buy another micro printer.
QHow thick can this UTG-2800 Ultrasonic Thickness Gauge be measured?
A UTG-2800 Ultrasonic Thickness Gauge can detect a minimum sample thickness of 0.5mm
QCan this Ultrasonic Thickness Gauge be applied to JJF1126?
A OK
