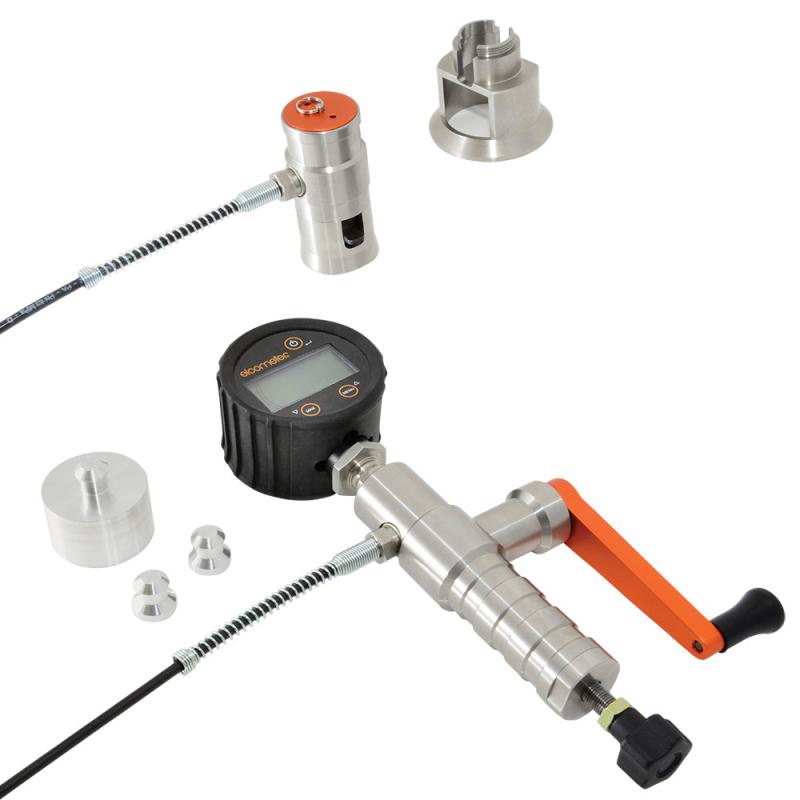

Elcometer 506 F506-20DC Digital Adhesion Tester Kit; 20mm with Certificate

F506-20DC

Drawing adhesion Tester

The Elcometer 506 is a lightweight, portable and easy to use adhesion Tester available with analogue or digital adhesion Testers for coating 50MPa (7250psi) suitable for measuring pull-off adhesion either in the field or in the lab.

The Elcometer 506 is designed to ensure easy and uniform pressure application over the entire range when rotating the hand crank, ensuring repeatable results with an accuracy of ±1%.

The Elcometer 506 Quick Connect 14.2, 20 and 50mm diameter dolly fittings and a wide range of accessories allow coating adhesion testing on flat, curved, thick and thin substrates – including metal, wood, concrete and other fibre materials.


The Elcometer 506's test head (brake) has been designed to be small, ergonomic and easy to carry - it is an excellent choice for testing the adhesion of coatings with one hand, even in awkward or confined spaces.


Safety testing on vertical surfaces is also taken into account. With the magnetic cable clip attachment, the brakes stay secure – preventing accidental damage to the surrounding area.

Powerful

• Suitable for metal, wood, concrete, and other substrates

• Rugged and lightweight—ideal for frequent inspections

• Smoothly applied loads up to 50MPa (7250psi)


flexible

• Easy-to-use handheld design

• Ideal for laboratory and field use

• 14.2, 20 and 50 mm (0.56, 0.76 and 1.96") diameter reusable dollies

• Measure on small, curved or flat surfaces

Accurate readings

• Measuring range up to 50MPa (7250 psi) with accuracy of ±1% of all scale ranges

durable

• Sealed, heavy-duty, impact resistant

• Dustproof and waterproof rating, equivalent to IP65

• Suitable for extreme environments

Coating inspection of low-adhesive substrates

When inspecting coatings on low-adhesion substrates, such as concrete, wood, or other fibrous materials, the surface area of the dolly needs to be large to improve accuracy, repeatability, and reproducibility.

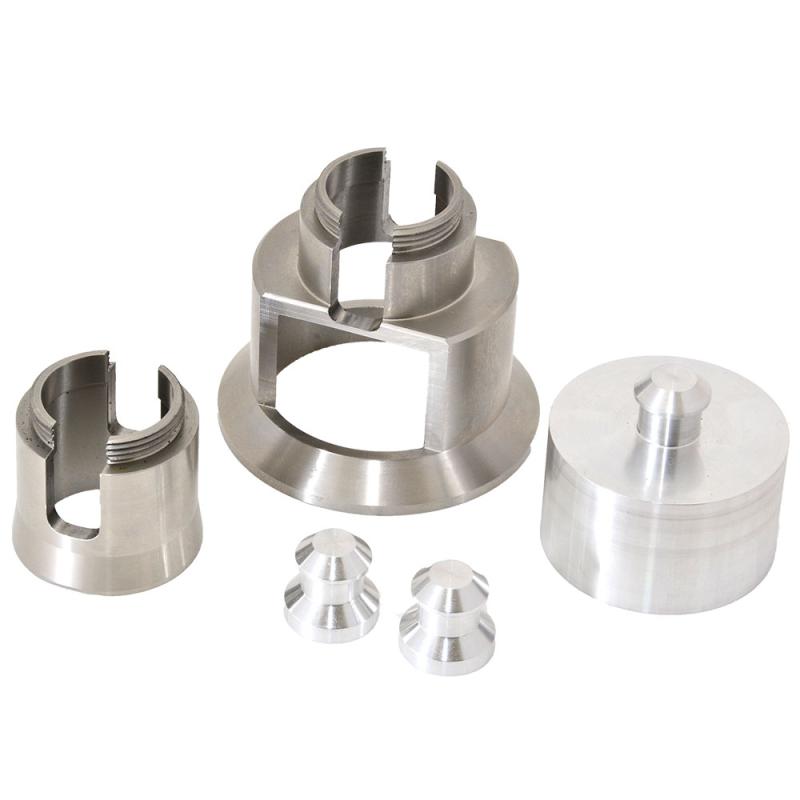

The Elcometer 506 Concrete Adhesion Tester is supplied as a kit or with a single 50mm attachment (support ring, dolly, cutter) which can be incorporated into the Elcometer 506 instrument.

Packing list：Elcometer 506 Adhesion Tester x1 with 20mm forging die (x10), 20mm forging die standard support ring x1, 20mm forging die cutter handle x1, 20mm forging die cutter x1, Araldite standard two-part epoxy gluing agent (2 x 15ml hose) x1, ground pad x1, carry case x1, 2 LR6 (AA) batteries x1, test certificate and operation manual.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
