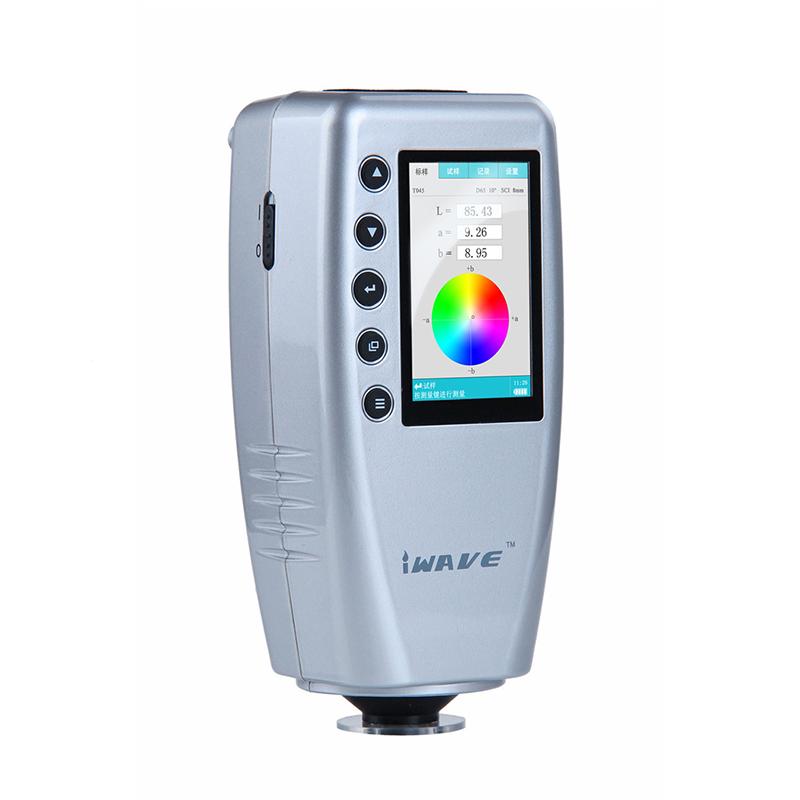

IWAVE WR-10 handheld Colorimeter 8mm chemical/leather/food/plastic color difference measurement
WR-10
IWAVE WR-10 ColorimeterSPEC

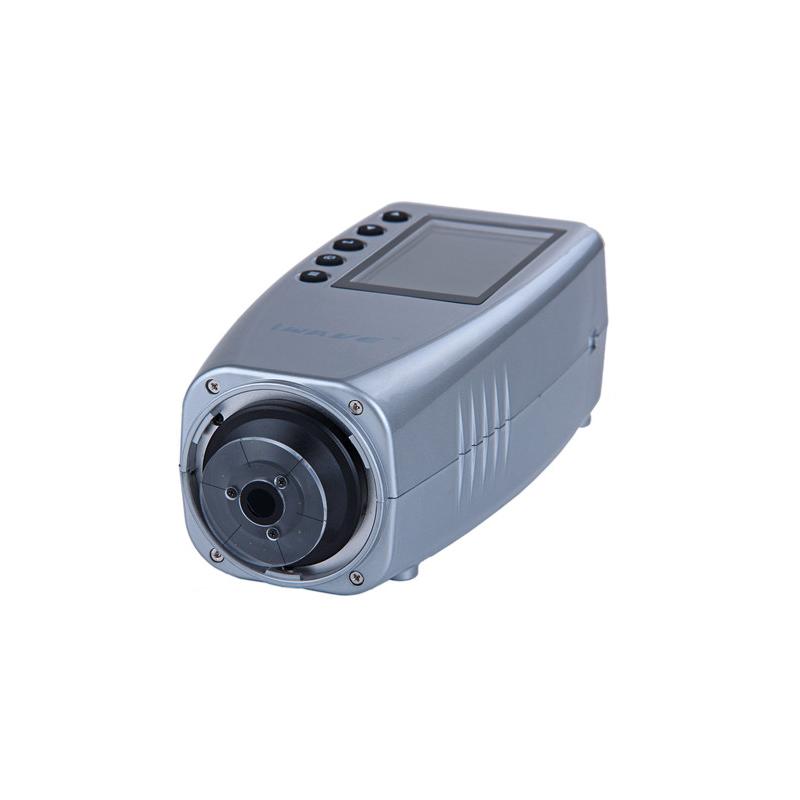

IWAVE WR-10 ColorimeterDetails

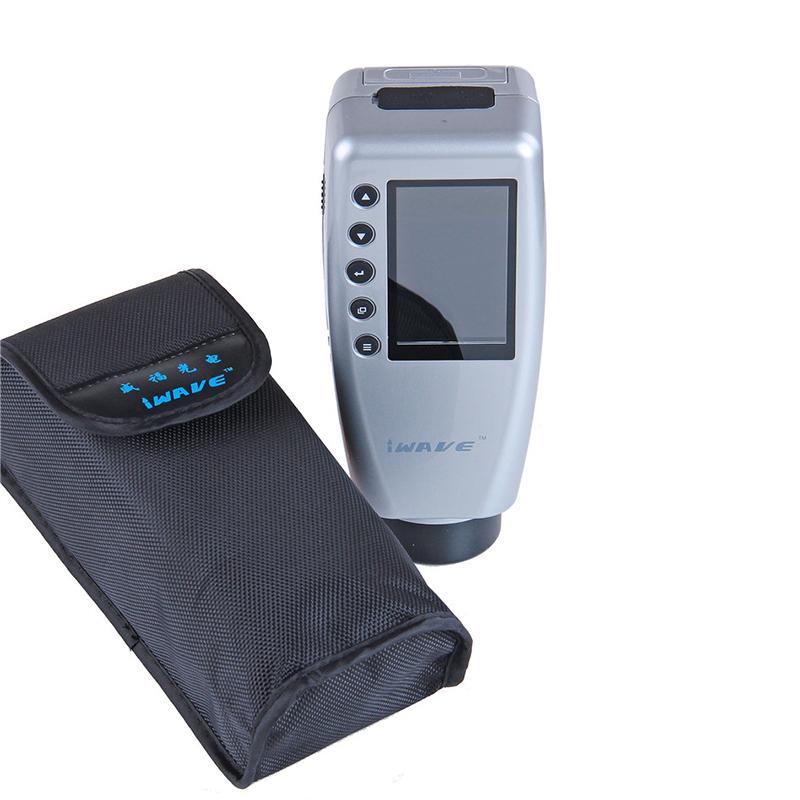

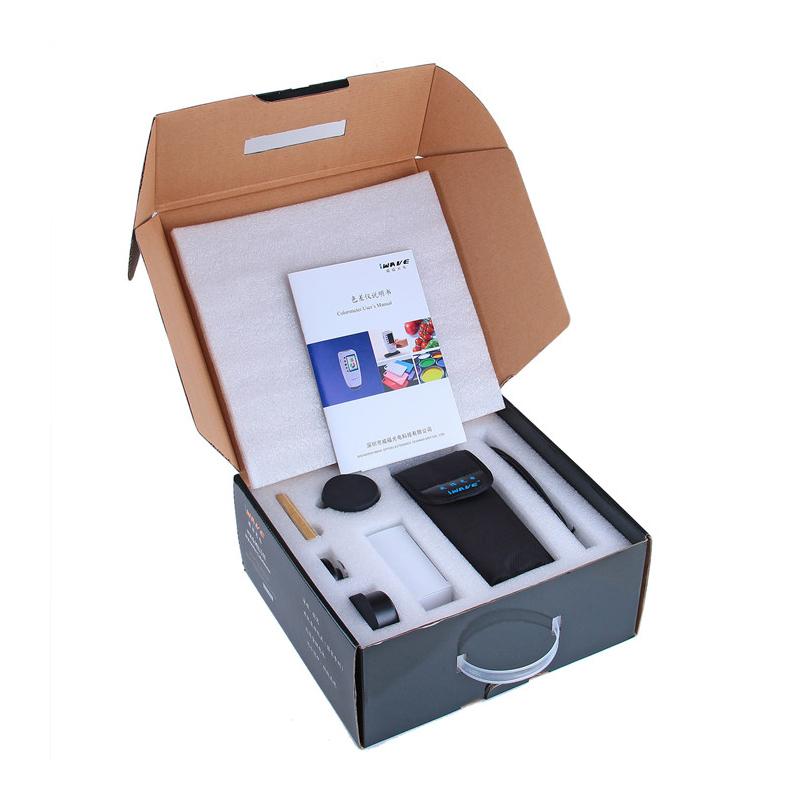

IWAVE WR-10 ColorimeterPacking list
- SKU
- NB016874
- Lighting method
- 8°/d
- Sensors
- Integrated photodiode array
- Measurement Range
- L:0~100
- Measurement light source
- D65
- Measurement time
- 1.0s
- Measurement caliber
- Φ8mm
- Sexual repeability
- ΔE*ab<0.08
- operating language
- Simplified Chinese, English
- Data Interface
- USB 2.0 (USB-B type), RS-232 (115200bps)
- Viewing Angle
- CIE 10°
- color difference formula
- ΔE*ab
- data storage
- 100 master standard data, 100 sample data under each master standard
- Power Supply
- Lithium battery can be measured 5000 times after being fully charged
- display mode
- CIELAB
- Operating environment
- 0 ℃ -40 ℃ (32 ° F -104 ° F); Relative Humidity below 85% without condensation
- Storage environment
- -20℃-50℃
- Dimensions
- 199*68*90mm
- Weight
- 700g
- Inter-instrument Agreement
- ΔE*ab<0.2
- Lighting source life
- More than 1.60 million measurements in 5 years
- Display
- TFT True Color 2.8inch @(16:9)
- packing size
- 400*240*340mm
- Standard Accessories
- 3000mAH lithium battery, power adapter, manual, warranty card.
- optional accessories
- Powder test box, micro printer
Introduction
Weifu WR-10 Colorimeter is a handheld Colorimeter with a measurement diameter of 8mm, which has the advantages of stable and fast measurement, simple and convenient operation, and uses lithium battery, which not only saves resources but also protects the environment, and the power consumption of the Colorimeter is very low.The vertical structure design of the WR-10 Colorimeter determines its advantages in production line detection and mobile measurement, and it is easy to carry. The photodiode array sensor enables fast acquisition of full-wavelength data in a short period of time, and fast measurements.
Weifu WR-10 Colorimeter is a professional handheld Colorimeter developed and produced according to the relevant standards of the International Commission on Illumination (CIE) and national standards.
Features
1、Weifu WR-10 Colorimeter uses lithium battery, low power consumption design, energy saving and environmental protection.
2. It has the function of automatic calibration at start-up, which reduces the process procedures of operation.
3. Large LCD color display, easy to read.
4、The WR-10 Colorimeter has a measuring aperture of 8mm and has a wide range of adaptability.

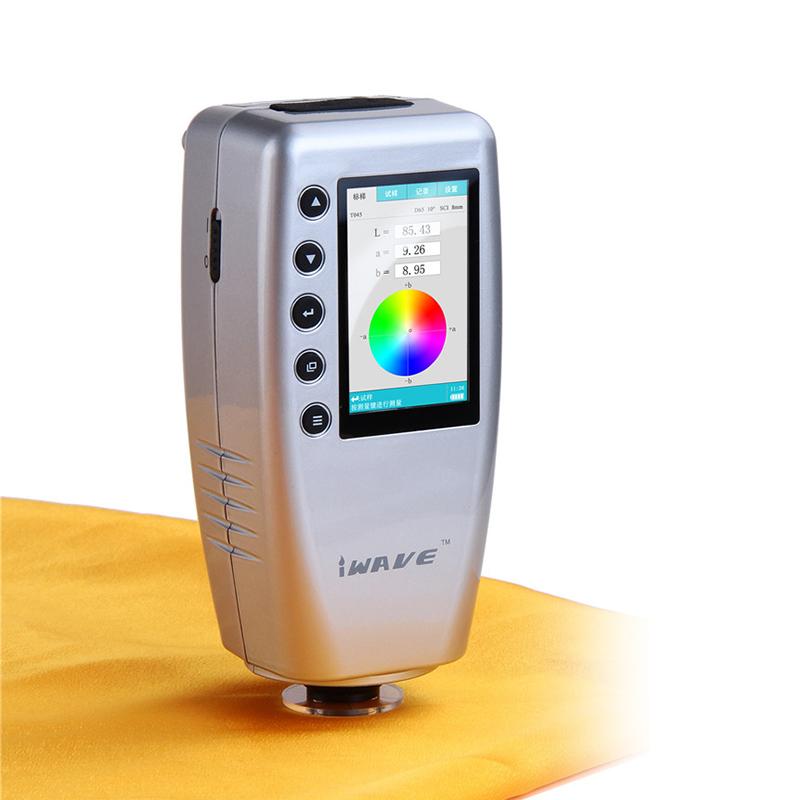

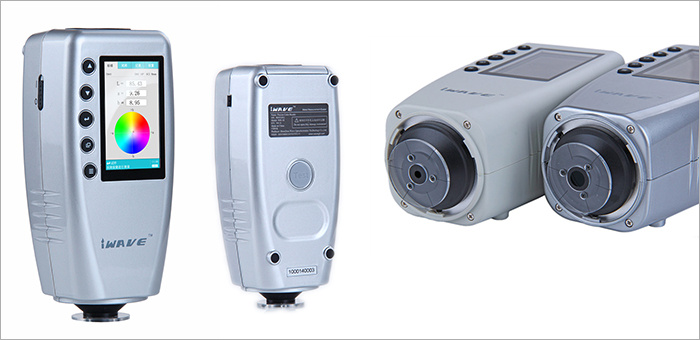

Actual picture of the product
Product Applications
The application industries of Weifu WR-10 Colorimeter are: textile, printing, chemical, clothing, leather, camera, food, plastic, paint, toys, hardware, etc.
