TIMEPOWER TP122 conductivity analyzer

Model：
Certificate
Contact
Details SPEC CAT

TIMEPOWER TP122 Conductivity analyzerSPEC

TIMEPOWER TP122 Conductivity analyzerDetails

TIMEPOWER TP122 Conductivity analyzerPacking list

SKU
NB016999
Measurement range
0~1000mS/cm
Measurement error
±2.5% F.S
Resolution
0.1mS/cm
Temperature compensation range
0~60℃
Dimensions
145*120*150mm
Weight
0.64kg
Display
128 × 64 dot matrix LCD, Chinese display
Temperature sensor
Pt1000
Water sample temperature
5~50℃
Operating temperature
5~45℃
Operating humidity
≤ 90% RH (non-condensing)
Display resolution
0.1℃
An indication of temperature error
0.5℃
Current Output
0~10mA, 0~20mA, 4~ 20mA optional, load < 300Ω
Alarm relay
2 normally open points can be set arbitrarily, AC 220V 3A/DC 30V 3A
output load Capacity
≤750Ω
Output Accuracy
1%F.S
Relay load Capacity
AC 250V 5A/DC 30V 5A
Power Supply
AC (85~ 265) V Frequency (45~ 65) Hz
Power
≤ 15W
opening size
138 mm×138 mm
TP122
Conductivity analyzer

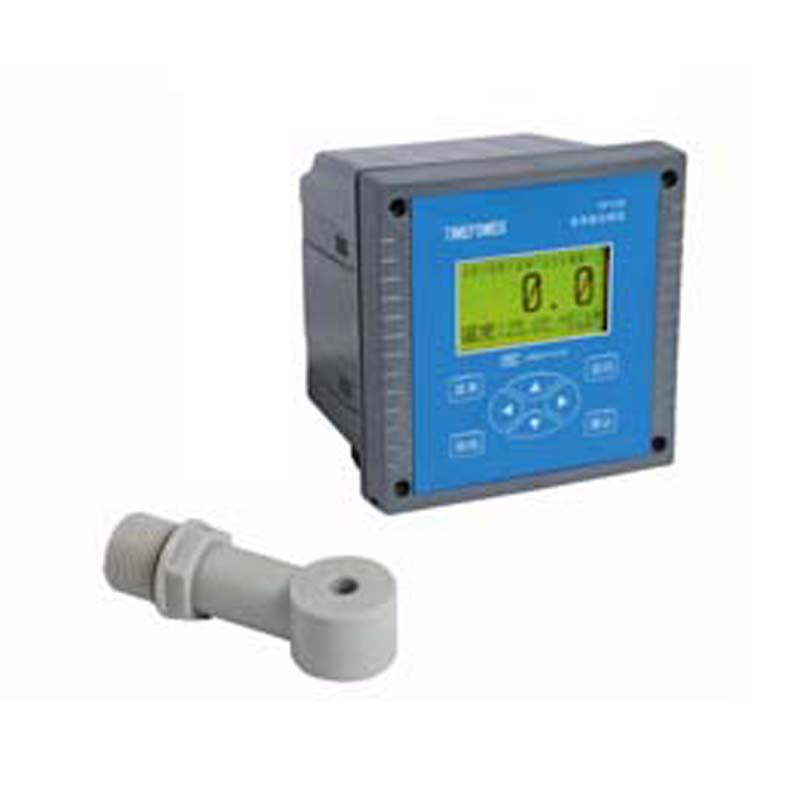

TIMEPOWER TP122 conductivity analyzer Picture

Introduction

TP122 conductivity analyzer is a new generation of our company's new generation of all-Chinese microcomputer high-end instrument, with full Chinese display, Chinese menu-based operation, high intelligence, multi-function, high measurement performance, strong environmental adaptability and other characteristics. It can be widely used in thermal power, chemical fertilizer, metallurgy, environmental protection, biochemical, food and tap water and other solutions for continuous monitoring of conductivity values.

Times Xinwei TP122 conductivity analyzer

Features

  • It is displayed in Chinese and English, and it is easy to operate

  • The instrument adopts high-precision AD conversion and microprocessor microprocessor technology

  • The components are integrated into a single circuit board, eliminating the need for complex function switches, adjustment knobs and potentiometers

  • The current output adopts photoelectric coupling isolation technology, which has strong anti-interference ability and good electromagnetic compatibility

  • IP65 protection level, suitable for outdoor use

  • Multi-parameter display at the same time to display conductivity, temperature, time and status

  • The standard output signal type is optional, and the alarm relay can be set arbitrarily

FAQ
QDoes the conductivity analyzer meet ASTMD 4399-90 specifications?
A Model TP122 conductivity analyzer
