TIMEPOWER TP160 ORP Analyzer

Model：
Certificate
Contact
Details SPEC CAT

TIMEPOWER TP160 ORP AnalyzerSPEC

TIMEPOWER TP160 ORP AnalyzerDetails

TIMEPOWER TP160 ORP AnalyzerPacking list

SKU
NB017008
Display
128 * 64 dot matrix LCD, Chinese display
Measurement range
±2000mV
An indication of electrical error
±1 mV
Resolution
0.1 mV
Temperature compensation range
0~60℃
Water sample temperature
5~60℃
water sample pressure
<0.6MPa
Environmental temperature
5~45℃
Working Relative Humidity
≤ 90% RH (non-condensing)
Storage temperature
-25~55℃
Power Supply
AC (85~ 265) V Frequency (45~ 65) Hz
power consumption
≤15W
Dimensions
145*120*150mm
opening size
138*138mm
Weight
0.64kg
Current Output
0~10mA, 0~20mA, 4~ 20mA optional, load < 300Ω
Alarm relay
2 normally open points can be set arbitrarily, AC220V 3A /DC30V 3A
Protection level
IP65
Power down save
> 10 years
TP160
ORP Analyzer

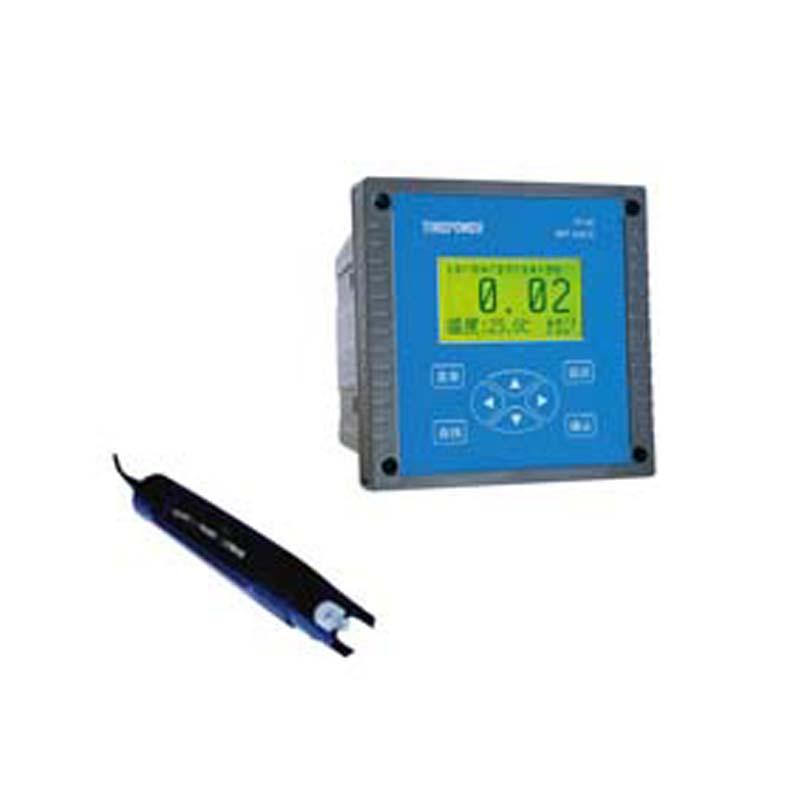

TIMEPOWER TP160 ORP Analyzer Picture

Introduction

TP160 ORP analyzer is a high-precision intelligent instrument, with full Chinese display, Chinese menu operation, multi-function, high measurement performance, strong environmental adaptability, etc., can accurately measure the redox potential value and temperature of the solution.

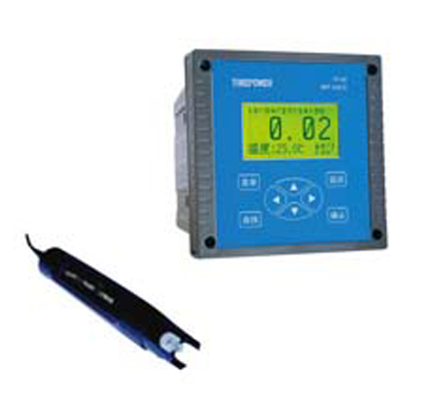

TP160 ORP analyzer

Features

  • Using 128×64 dot matrix LCD module, all data, status and operation tips are Chinese display, easy to understand and easy to operate.

  • The instrument adopts high-precision A/D conversion and single-chip microcomputer microprocessor technology, with high performance and low power consumption.

  • The motherboard adopts SMD technology and highly integrated isolation circuit design, which has good anti-interference performance, stability and durability.

  • The standard output signal type is optional, and the alarm of the two sets of relay control switches can be set arbitrarily.

  • The data loop storage function automatically clears the overflow data, which is convenient to operate and simple to query.

  • IP65 protection level, suitable for outdoor use.
