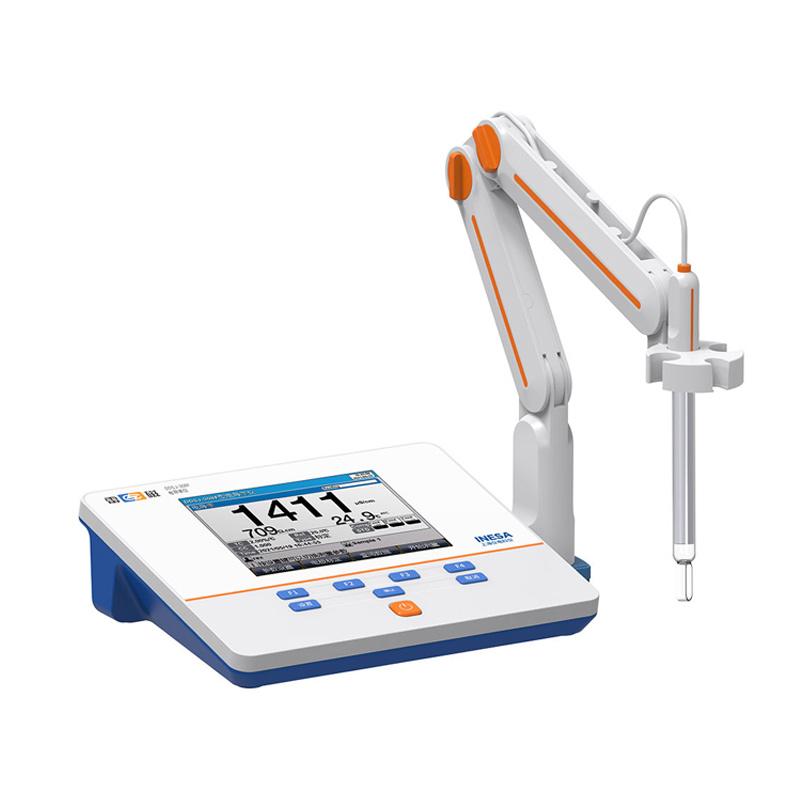

LEICI DDSJ-308F Digital Display Conductivity Meter Level 0.5 with DJS-1D Platinum Black Conductivity Detector electrode

DDSJ-308F

Conductivity Meter

Introduction

Conductivity is used to measure the ability of a solution to transmit current, for water, conductivity is an important indicator to measure water quality, so in many industries, such as power plants, water plants, chemicals, electroplating and other industries will use instruments to measure conductivity - conductivity meters to determine the conductivity of water or aqueous solutions. Thunder Magnetic Conductivity Meter DDSJ-308F is a desktop digital display conductivity measuring instrument, equipped with DJS-1D platinum black conductivity electrode, which can realize the measurement of temperature, resistivity, conductivity and TDS, and the measured conductivity error is ±0.5%FS, and has the function of breaking protection.

Product features

1. Three major reading functions:

1) Smart-Read mode: intelligently judge the end point, and the reading is simple

2) Timed-Read mode: Set a timer to automatically store readings

3) Cont-Read mode: understand the continuous change of conductivity of the sample

2. Electrode calibration reminder function

3. Firmware upgrade function

4. Test data in line with GLP specifications, traceable and complete information

1) The operator number can be set to record the operator's operation process

2) Record query and print the calibration data

3) It can store 200 sets of measurement data in accordance with GLP specifications: conductivity, TDS and salinity

4) The measured data can be queried, deleted, printed and other operations

5. Dot matrix LCD screen, which can display the measured value, temperature, conductivity constant, measurement mode, operation date and time

6. Chinese operating language, human-machine interface design user experience number

7. Automatic temperature compensation, automatic range and frequency switching

8. Automatically calculate and display conductivity, resistivity, total solid dissolved without TDS and salinity values, without manual conversion

9、DDSJ-308FThe PC panel of the conductivity meter uses a new material, digital buttons

10. It has the function of power-off protection and high data security

11、Conductivity meterThere is a USB port, which can be used to connect to a PC with communication software.

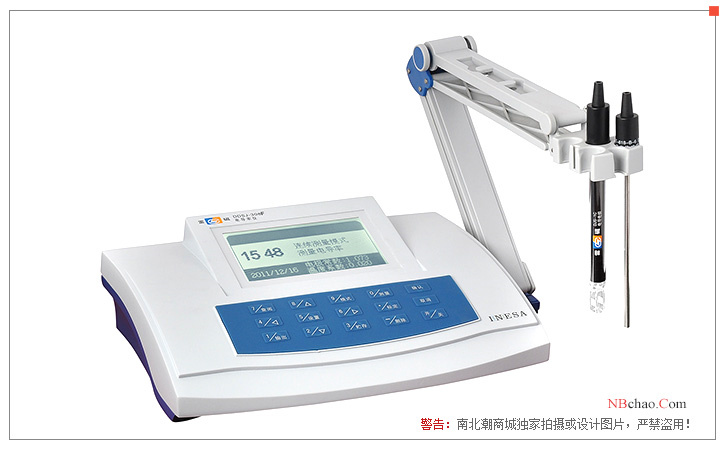

Product display diagram

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
