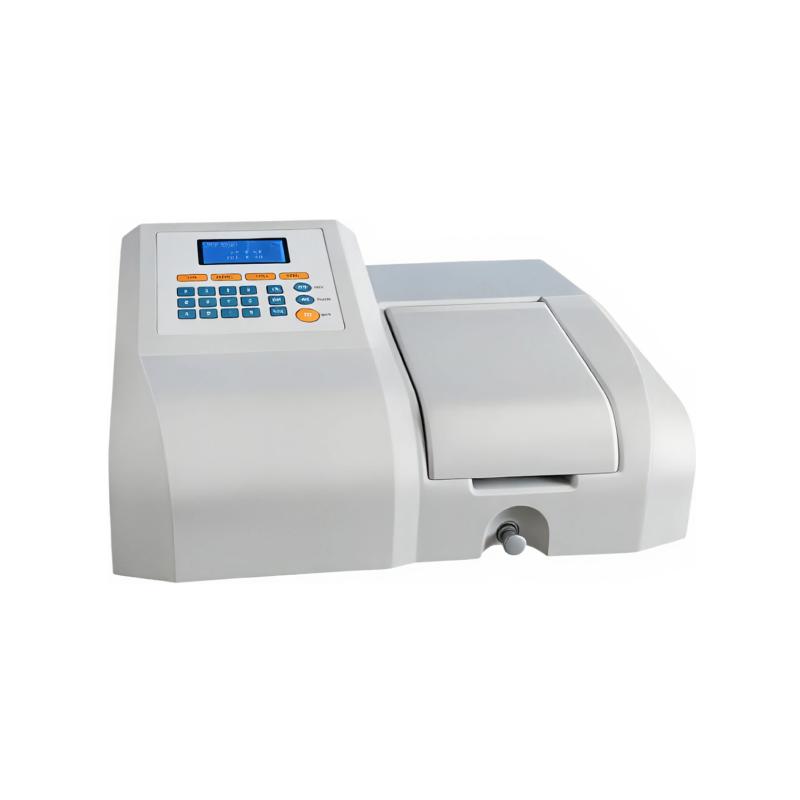

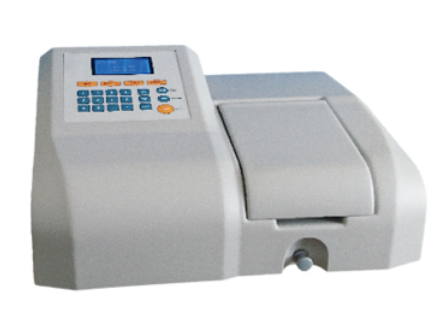

YUE FENG 723N visible Spectrophotometer with USB interface and PC software

723N（PC）

Visible Spectrophotometer

Using Czerny-Turner optical path to ensure linear Precision and ultra-low stray light, Light spectrum Bandwidth 4.0nm, Wavelength Precision +/- 1.0nm, spacious sample chamber can accommodate 5~ 100mm Colorimetric dish, support Automatic calibration and Data storage.

Features

• Large-screen LCD (64×128) graphic liquid crystal display.

• The spacious sample room can accommodate 5 ~ 100mm cuvette.

• The host can perform photometric detection, quantitative detection, and can display standard curves, and can store 100 standard curves and 200 detection data.

• With wavelength automatic calibration, automatic power off to keep data.

• The main components adopt imported configuration, which is convenient for maintenance.

• The newly designed Czerny-Turner optical path ensures the accuracy of detection linearity and ultra-low stray light.

• Can be directly connected to a printer (optional) to print data or maps.

Main functions of the instrument

Photometry

The test of absorbance, transmittance and concentration at a fixed wavelength.

quantitative test

a. Standard curve method: Up to nine standard curves can be established, and the graph and regression equation can be displayed.

b. Coefficient method: use the formula C=KA+B, A=KC+B, and pass the input correlation coefficient test.

System functions

Wavelength calibration, dark current calibration...

Packing list：host X1, software X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
