DLAB MS-H-ProT LCD numerical control timing heating Magnetic Stirrer 20L

The heating temperature of the DLAB MS-H-ProT is -340 ℃ at room temperature and the accuracy is +/- 1 ℃. The MS-H-ProT heating Magnetic Stirrer adopts an independent temperature transducer and has a timing function.
Contact
Details SPEC CAT

DLAB MS-H-ProT (set) Magnetic StirrerSPEC

DLAB MS-H-ProT (set) Magnetic StirrerDetails

DLAB MS-H-ProT (set) Magnetic StirrerPacking list

SKU
NB017327
Max. Capacity of stirring
20L
Stirring speed
100~1500rpm
Temperature range
RT+~340℃
Timer
1~5999min
Mixer size
80mm
Dimensions
160*280*85mm
Machine Weight
2.8kg
Panel Material
Stainless steel ceramic coating
Motor type
DC brushless motor
Input Power
18W
output power
10W
Heating power
550W
Power
100~120/200~240V
Rated Frequency
50/60Hz
station number
1 station
Display mode
LCD
Rotation speed Display resolution
±1
Heating power
500w
Temperature control Accuracy
±1（＜100℃）±1%（＞100℃）
Safety protection temperature
360℃
Display resolution
±0.1℃
Temperature transducer
PT1000
External temperature transducer temperature control Accuracy
Pt1000:±0.2℃
Waste heat warning function
50℃
Interface
RS-232
Protection level
IP42
Ambient Temperature
5~40℃
Allowable Relative Humidity
80%
MS-H-ProT (set)
Magnetic Stirrer

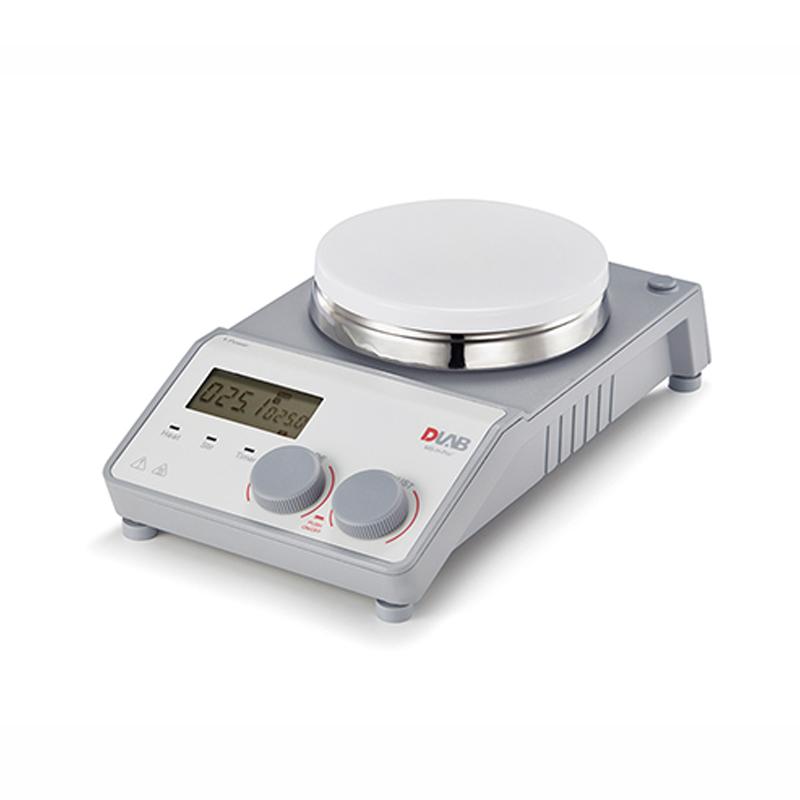

DLAB MS-H-ProT LCD numerical control timing heating Magnetic Stirrer 20L Picture

Product Description

LCD numerically controlled heating disk timing magnetic stirrer, stainless steel ceramic coated disk, national standard plug, 200-240V, 50Hz/60Hz.

Features

  • The new heating mixer has new rapid heating and stirring technology and precise temperature control technology, and is suitable for unmanned operation;

  • Heated magnetic stirrer with safety temperature control for unmanned operation;

  • Two independent safety circuits;

  • Independent temperature sensor detection, protection temperature can be set;

  • External PT1000 temperature sensor can be used;

  • After the experiment, the thermal warning screen displays the residual temperature of the Heating Plate;

  • It has a timing function and can automatically stop working when the time is reached;

  • Timing range: 1 minute to 99 hours and 59 minutes;

  • Multiple operating modes ensure that the stirring and heating functions are not changed due to external factors.

plan

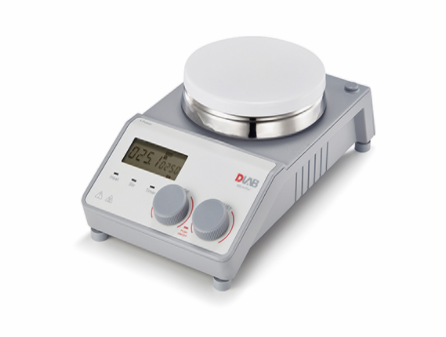

Dalong Xingchuang MS-H-ProT heating magnetic stirrer display
