FANGRUI NDJ-5S Digital Rotational Viscometer with RTD temperature probe

SE
± 2% measurement accuracy, international microcomputer drive technology, imported stepper motor, LCD; with automatic scanning function; including RTD temperature probe, with RS232 interface.
$487.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

FangRui NDJ-5S+RTD Digital ViscometerSPEC

FangRui NDJ-5S+RTD Digital ViscometerDetails

FangRui NDJ-5S+RTD Digital ViscometerPacking list

SKU
NB017354
Display
Backlit liquid crystal display
Measuring range
1~100000mPa·s
Rotor Specifications
1#、2#、3#、4#
Rotor speed
6/12/30/60rpm
Reproducibility
±0.5%F.S
Measurement Accuracy
±2%
Power
110V/60Hz，220V/50Hz
Data Interface

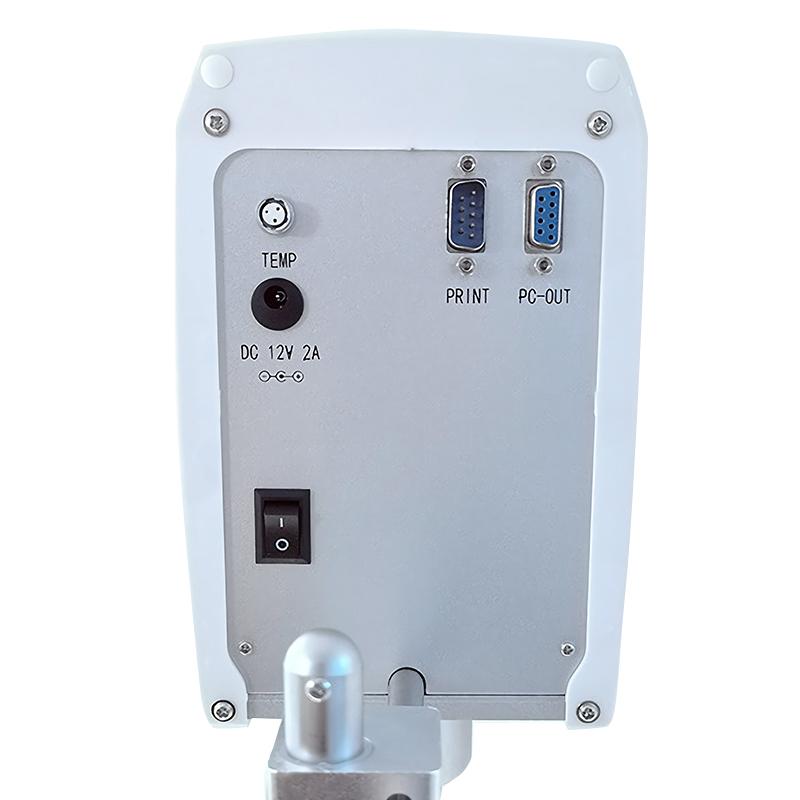

One R232C communication interface, one temperature probe interface, and one power jack.
temperature probe
RTD temperature probe
Dimensions
300*300*450mm
Weight
5kg
Display information
Automatic display of the selected rotor and rotational speed combination for measurement of the maximum Viscosity value
Automatic scan function
Viscosity of the test sample can automatically prompt the best combination of Rotor velocities
NDJ-5S+RTD
Digital Viscometer
± 2% measurement accuracy, international microcomputer drive technology, imported stepper motor, LCD; with automatic scanning function; including RTD temperature probe, with RS232 interface.
FANGRUI NDJ-5S Digital Rotational Viscometer with RTD temperature probe Picture

FANGRUI NDJ-5S digital viscometer adopts the latest international microcomputer drive technology, imported stepping motor, LCD backlight display, program setting, automatic control, with stable speed, good accuracy, easy operation, automatic scanning, error alarm and other practical functions; the screen directly displays viscosity, speed, rotor number, and percentage torque. The selected range can measure the maximum viscosity and the temperature of the measured liquid and other information. FANGRUI NDJ-5S digital viscometer uses standard silicone oil to measure and calibrate the full scale and linearity of each gear through the PC interface to ensure that the instrument has high sensitivity, high precision and high repeatability. The measured data is accurate and reliable, with excellent repeatability.

NDJ-5S digital viscometer can measure the absolute viscosity of Newtonian liquid or the apparent viscosity of non-Newtonian liquid. If the viscometer data processing software is selected, the rheological properties of non-Newtonian liquids can be analyzed.

main feature

①. The measurement data is directly displayed on the LCD without secondary calculation.

②. Using the latest international microcomputer drive technology and imported stepping motor, the speed is accurate, stable and reliable.

③. Using professional switching power supply technology, the Voltage and frequency range is wide, and the fluctuation of the power supply will not affect the measurement accuracy.

④. The whole machine is designed in one machine, which is convenient and reliable to operate.

⑤. The instrument can provide the test low viscosity option "No. 0 rotor" to accurately test the ultra-low viscosity value in the range of 0.1~100mpa.s.

⑥. A temperature probe can be selected to measure the temperature of the tested sample in real time.

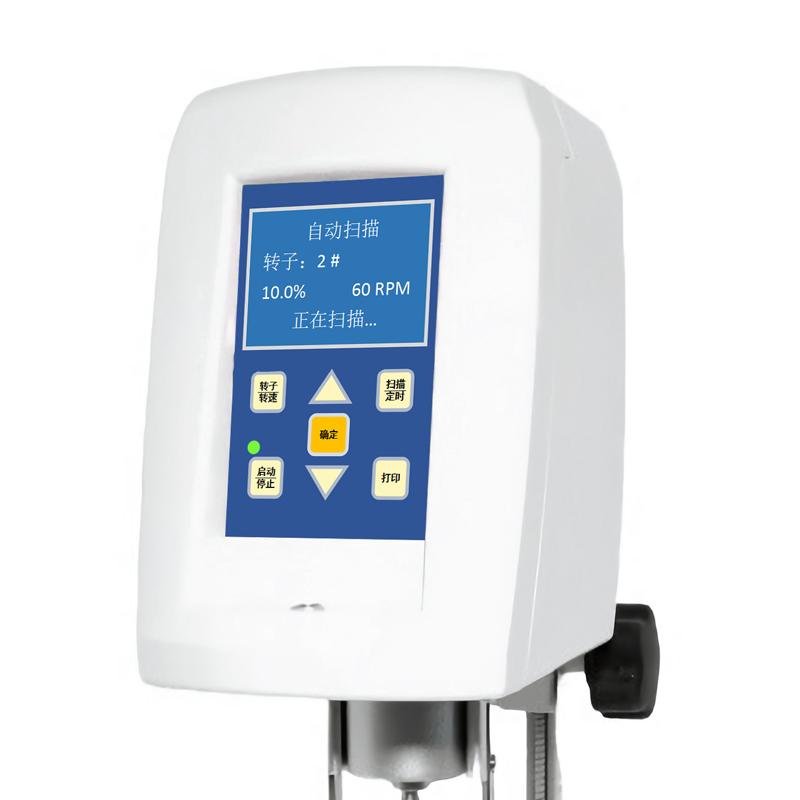

⑦. With automatic scanning function, the instrument can automatically suggest a good combination of rotor and speed.

⑨. With RS232 interface (or USB2.0 interface), which can output data and connect external devices.

⑩. Optional data processing software can record the change of viscosity with time, rotation speed or rotor (shear rate) and temperature in real time, which provides a good tool for understanding the viscosity and rheological characteristics of non-Newtonian liquids method means.

Application

Widely used in oil, paint, coating, slurry, textile, food, medicine, adhesive, cosmetics and other fluid and semi-fluid production industries and scientific research units. With the advantages of accurate, fast, intuitive and simple measurement, the instrument has been selected by customers in various industries.

Pictures

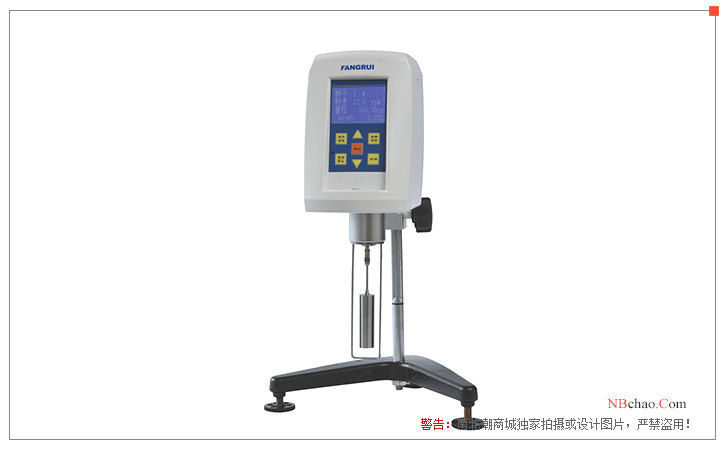

Display of FANGRUI NDJ-5S digital display Rotational Viscometer

optional

Ultra-low viscosity adapter (0# rotor)

temperature probe

Thermostat cup

Constant temperature Water Bath (Oil Bath) for viscometer

Low temperature bath for viscometer

Ultra-low viscosity adapter (0# rotor)

temperature probe

FAQ
QTo make a thickener, you need to measure the viscosity of the liquid after thickening. According to the viscosity level of the thickened fluid food for people with swallowing disorders in the United States, you need to measure the shear viscosity under the condition of 50 s-1. Which Viscometer do you need to use for this? Does NDJ-5S not work?
A 5S doesn't work.
QDoes your product have temperature control, which can test the viscosity change with temperature?
A Hello, this ndj-5s Viscometer is equipped with a temperature probe, but not a Thermostat. If you want to control the temperature, you need to buy another Thermostat to meet your needs.
QCan this Viscometer measure the viscosity of phenolic resins?
A The viscosity of phenolic resins can be measured using the Viscometer. The Viscometer is a widely used instrument for measuring the viscosity of liquids, not only for phenolic resins but also for many Miscellaneous types of liquids. Phenolic resin is also a liquid whose viscosity is related to factors such as its concentration, temperature, molecular weight, etc. The viscosity of phenolic resins can be accurately measured using the Viscometer.
QMeasure the viscosity of latex, is this Viscometer suitable?
A Latex viscosity can be measured, please pay attention to choose the viscosity range suitable for your sample.
QDoes this product have temperature control? You can test the change of viscosity with temperature.
A Temperature control equipment needs to be bought separately. It is recommended to buy advanced models according to your needs, and there is software to display it.
QTesting materials: Liquid, Silicon Resin + Alcohol, viscosity range: 200-500 mPa.s, have a suitable Viscometer recommendation?
A Both NDJ-5S and SNB-1 are OK.
QThe larger the rotor with NDJ-5S digital rotational viscometer, the greater the viscosity of the test?
A Hello, yes, the larger the number of the rotor, the smaller the volume, and the greater the viscosity of the testable sample.
QThe page says that with the RTD probe, does it mean that this NDJ-5S digital rotational viscometer can be used with the RTD probe, or does it mean that you buy this instrument with the RTD probe in it?
A Hello, the NDJ-5S digital display rotational viscometer you see has an RTD temperature probe when you buy it, which is standard.
QCan this digital Viscometer automatically suggest which rotor to use?
A Hello, the NDJ-5S digital display rotational viscometer you see has an automatic scanning function, which can automatically suggest a good combination of rotor and speed for you.
QIs this digital Viscometer compliant with the ASTMD3794 standard?
A This digital Viscometer is suitable for ASTMD3794. Please consult customer service for detailed application definition.
