LANDTEK Roughness GaugeSPEC
LANDTEK Roughness GaugeDetails

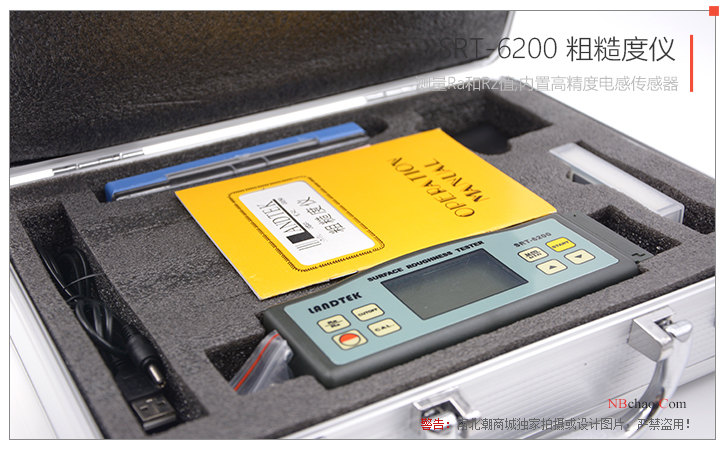

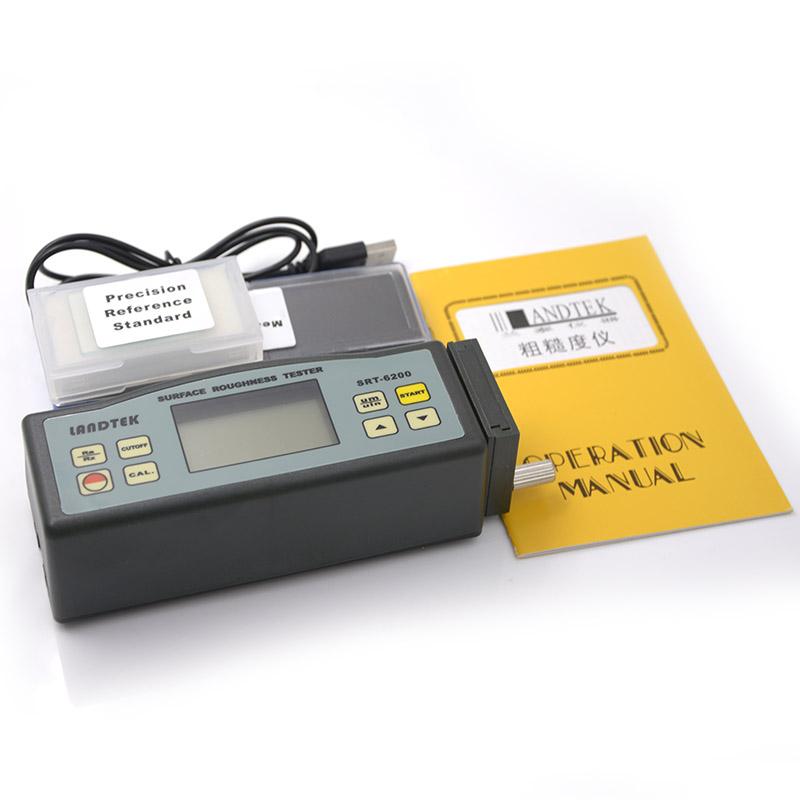

LANDTEK Roughness GaugePacking list
- SKU
- NB017558
- Display mode
- digital explicit
- Measurement parameters
- Ra、Rz
- Measurement range
- Ra：0.05~10.00μm/1.000~400.0uinch； Rz：0.020~100.0μm/0.780~4000uinch
- Resolution
- 0.001μm|0.01μm|0.1μm
- Error of indication
- ≤±10％
- Indication variability
- ≤6％
- Sampling length
- 0.25mm|0.8mm|2.5mm
- evaluation length
- 1L~ 5L (optional, L is the sampling length)
- Sensors - Radius
- 10μm
- Sensors - Materials
- diamond
- Sensors - Force Measurement
- 16mN
- Sensors - Angle
- 90°
- Sensors - Measurement principles
- Inductance
- Sensors - Longitudinal Radius
- 48mm
- Stroke length
- 17.5mm/0.7inch
- Drive speed - when measuring
- When sampling length = 0.25 mm, Vt = 0.135 mm/s; when sampling length = 0.8 mm, Vt = 0.5 mm/s; when sampling length = 2.5 mm, Vt = 1 mm/s
- Drive speed - when returning
- Vt = 1 mm/s
- Measurement profile
- Asperity
- Interface
- USB、RS-232
- Power Supply
- Built-in lithium-ion rechargeable battery
- Dimensions
- 140*52*48mm
- Product Weight
- 420g
- Operating Conditions
- Temperature: 0~50 ℃ Humidity: < 80% RH
- monitor
- Blue backlight, 4-digit display, 10 mm LCD

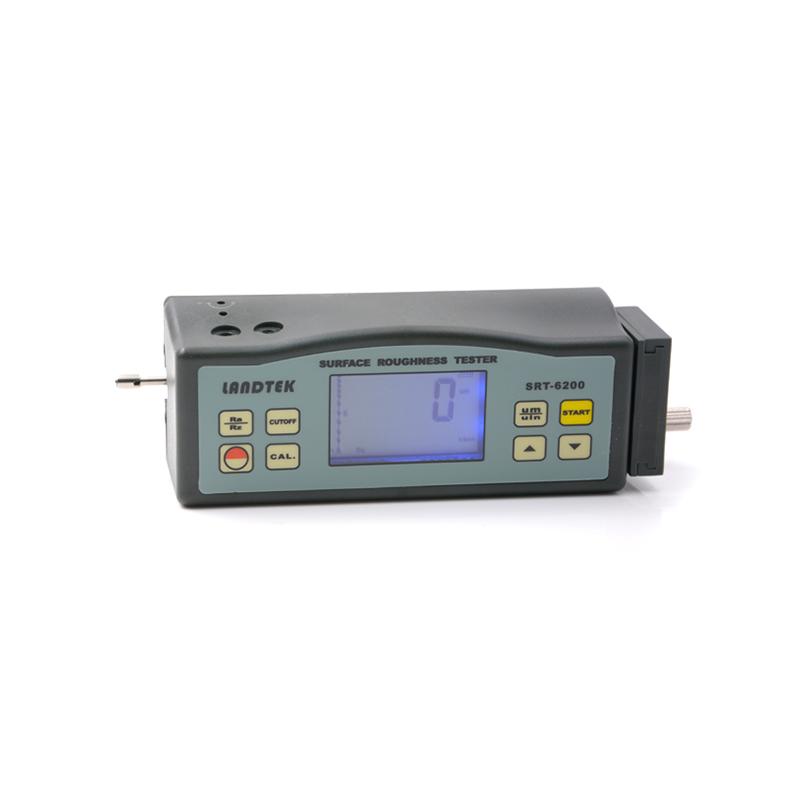

Introduction

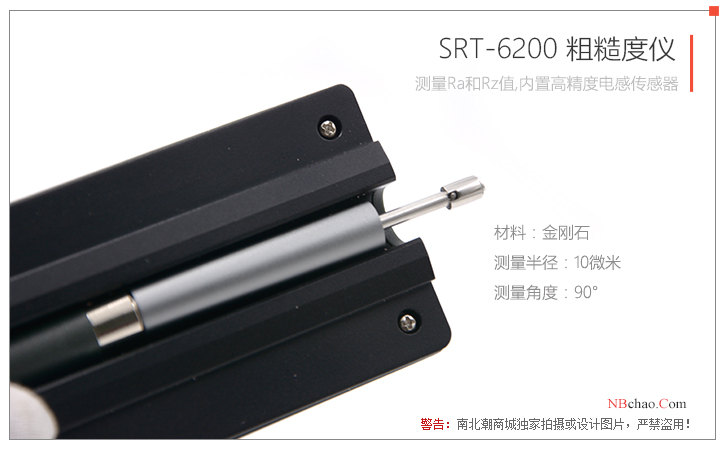

LANDTEKSRT-6200 roughness TesterIt is a built-in high-precision inductive sensor, the stylus measures the surface roughness of the measured object through inductive, and can measure both Ra and Rz parameters at the same time.SRT-6200 roughness Tester is controlled by high-capacity lithium-ion battery and charging method, mechatronics design, small size, light weight, easy to carry and use. The sensor of the roughness Tester is made of diamond material, with a measuring radius of 10 microns and a measurement direction of 90 degrees.
Features

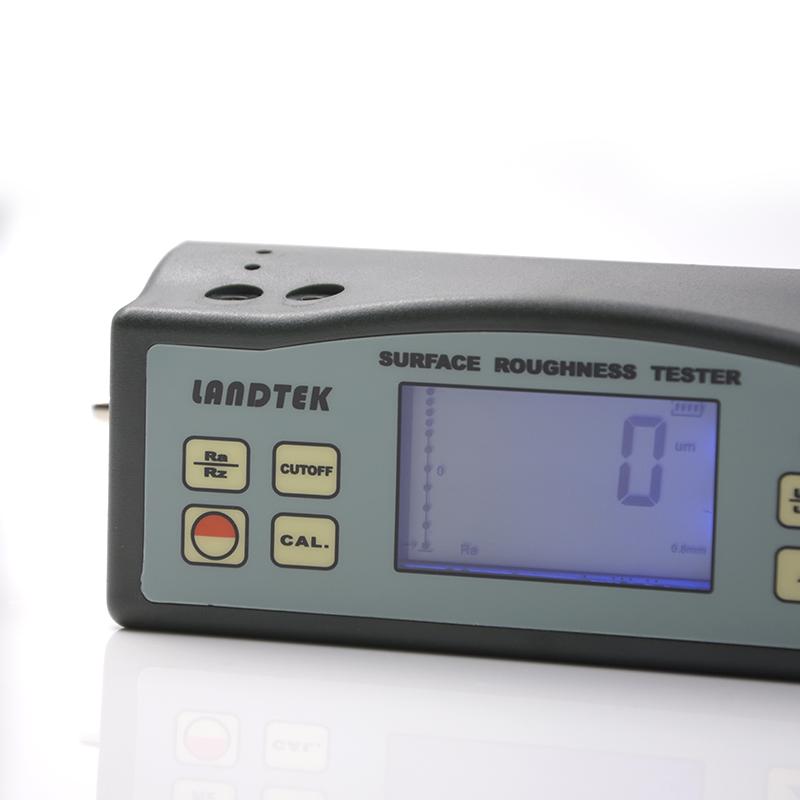

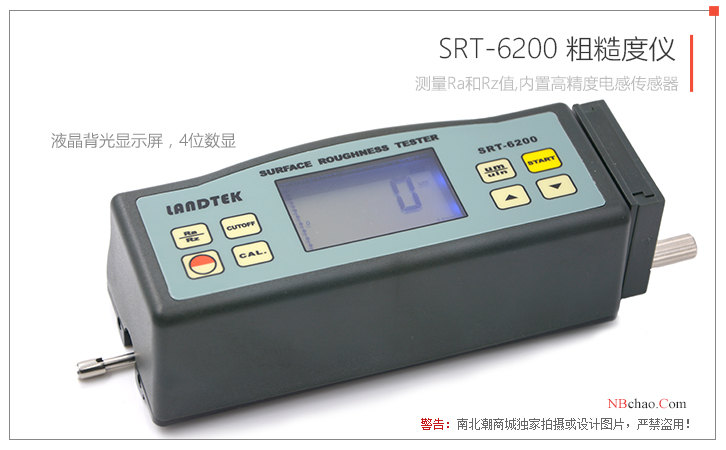

1. LCD backlight display, 4-digit display, simultaneous measurement of Ra and Rz values.
2、The sensor of the SRT-6200 roughness Tester is based on an inductive measuring principle.
3. It has the function of automatic shutdown.
4. Metric and British conversion function, no need for manual conversion, easy to use.
5. The roughness Tester is an integrated design with a built-in high-precision inductance sensor.
6. It can be connected to PC to transmit data: USB data cable and RS-232 data cable.
7. Bluetooth output data.
Application
Mechanical processing and manufacturing, non-metallic processing and manufacturing, electricity, electronics, communication industry.

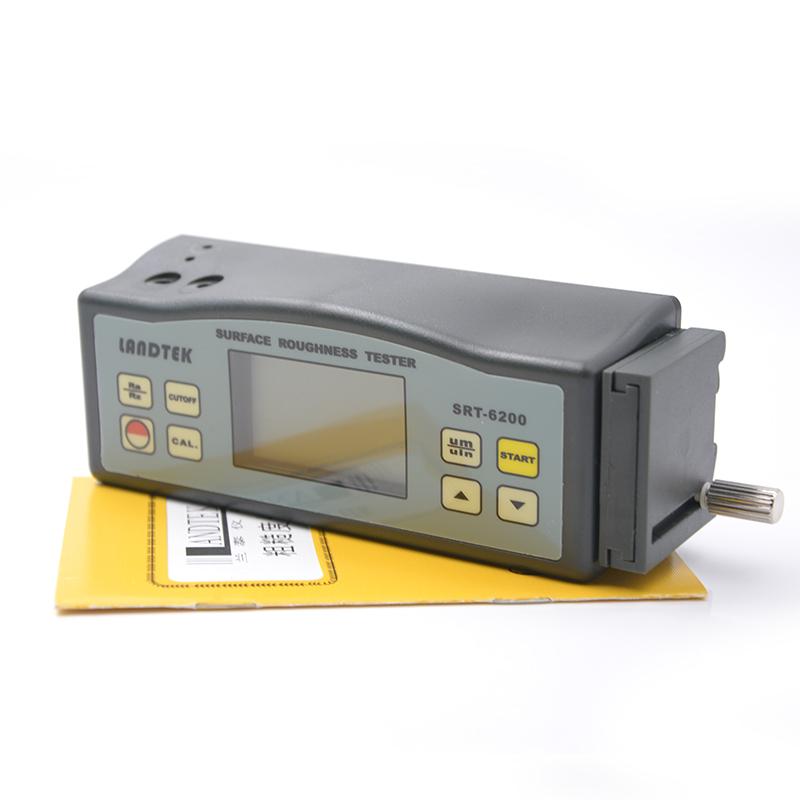

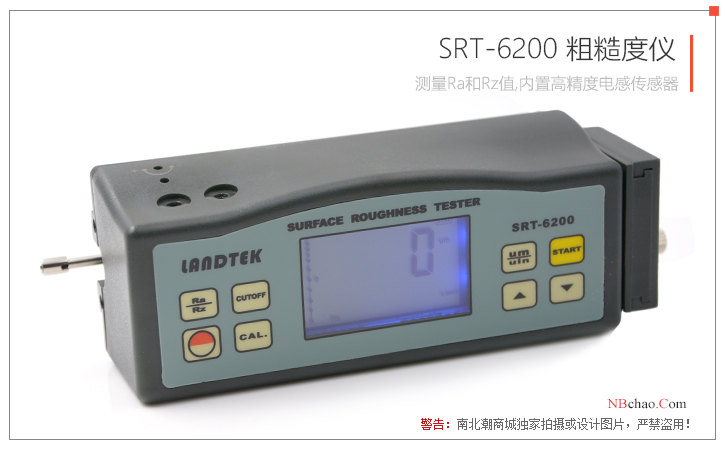

Actual picture of the product
