NORMAN 1116-P-40 RCA abrasion test tape RCA tape general agent

SE
NormanTool China general agent, original genuine RCA paper tape, sufficient stock, buy more discounts, suitable for printing, silk screen printing, inks and other wear resistance tests.
$363.00/case
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI

NORMANTOOL 1116-P-40-S Abrasion Test TapeSPEC

NORMANTOOL 1116-P-40-S Abrasion Test TapeDetails

NORMANTOOL 1116-P-40-S Abrasion Test TapePacking list

SKU
NB018051
width
11/16 "broadband for general print testing
Weight
41 pounds
quantity per box
40 rolls
roll length
940~ 1000 feet, about 1800 tests per roll
Temperature range
23 ± 2 ℃
Humidity range
50 ± 10%
1116-P-40-S
Abrasion Test Tape
NormanTool China general agent, original genuine RCA paper tape, sufficient stock, buy more discounts, suitable for printing, silk screen printing, inks and other wear resistance tests.
NORMAN 1116-P-40 RCA abrasion test tape RCA tape general agent Picture

Norman General Agent

Introduction

The American norman RCA abrasion test paper tape, numbered 1116-P-40, is a special paper tape for the standard abrasion Tester for general printing test, which is suitable for the RCA7-IBB paper tape abrasion Tester. The width of RCA paper tape is 11/16inch, and there are 40 rolls per carton, and each roll tests about 1800 turns. RCA paper tape should be stored in a cold and dry place.

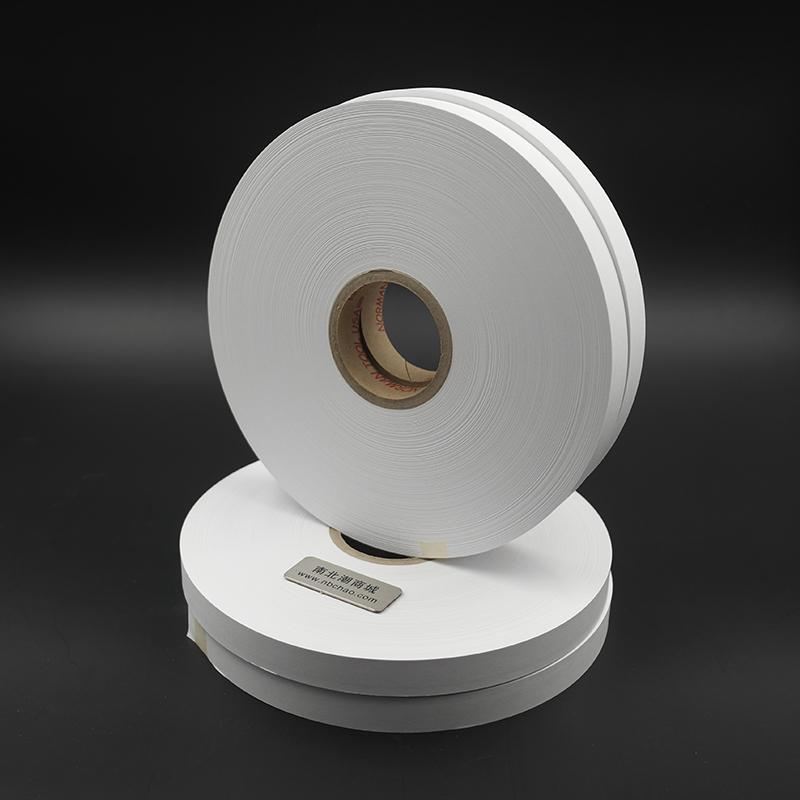

American norman RCA abrasion test strip display diagram

Application

Abrasion resistance tests for inks, coatings, ground tests, membrane switches, test buttons and keypads.

Production and physical display

As it appears on the marketMany manufacturers produce nominal RCA abrasion test strips, so please look for them when purchasingGenuine！


The RCA abrasion test strip imported from norman in the United States shows Figure 1

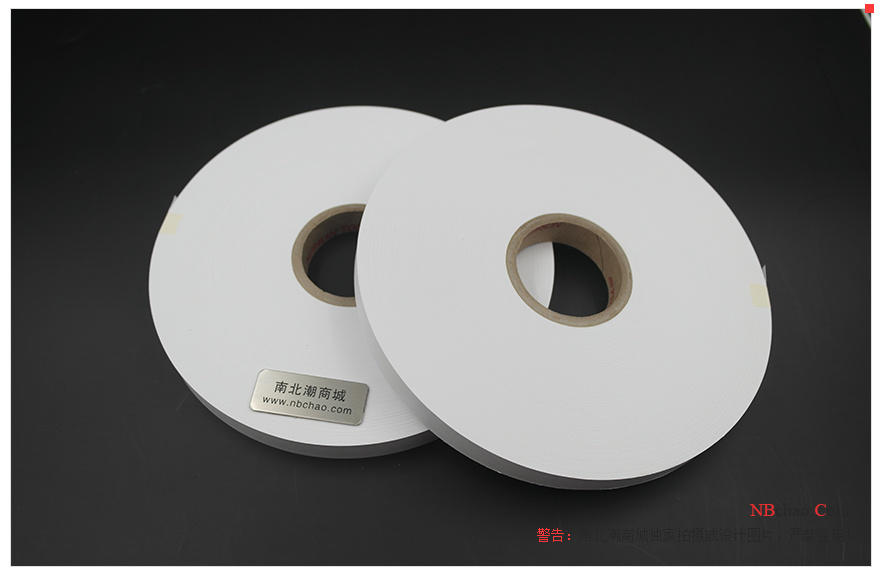

The RCA abrasion test strip imported from norman in the United States shows Figure 2

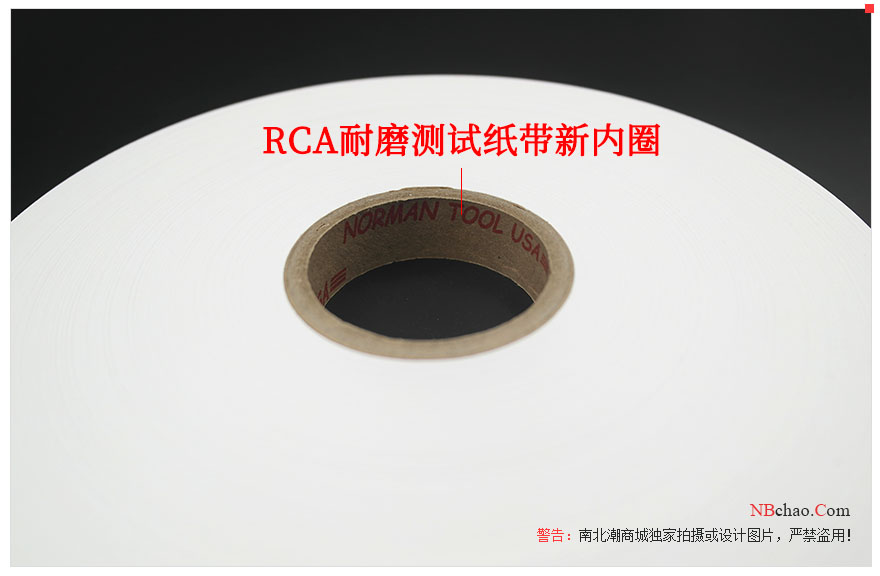

The inner ring of the RCA abrasion test paper imported from the United States norman

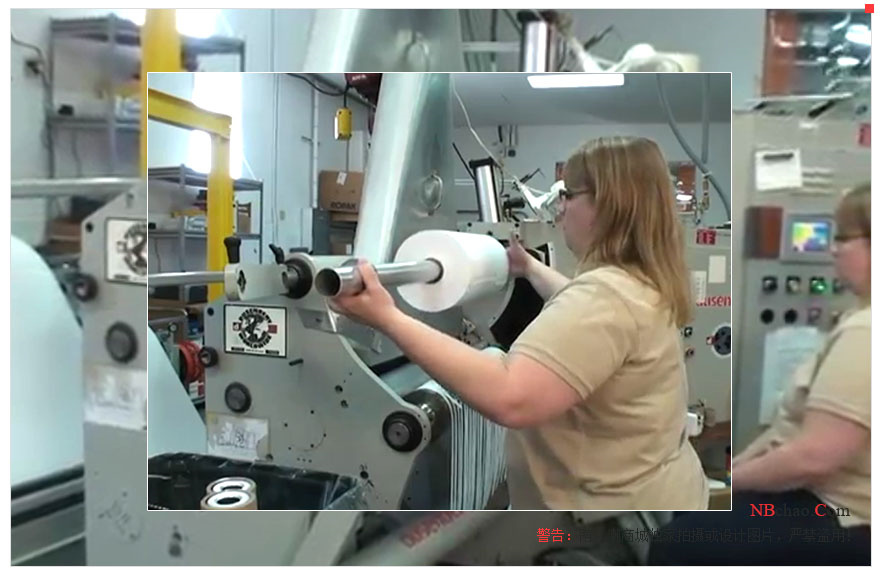

The production process of RCA abrasion test paper tape imported from norman in the United States

The serial number of the RCA abrasion test paper imported from the United States norman

The original imported RCA abrasion test paper tape test scene from norman in the United States

FAQ
QWhat is the principle of RCA tape wear test?
A RCA tape wear test using a dedicated test tape as a friction medium, a fixed load acting on the friction head, the friction head through a fixed diameter of the roller and a fixed speed motor drive rotary tape force is continuously applied to the surface of the sample, until the surface of the substrate or to achieve a specific degree of abrasion, the wear performance of the sample is evaluated by the number of times the motor rotation counter display.
QThis model has an S, what does it mean?
A S means standard.
QIs there a paper width of 1.7cm?
A Our paper tape is 1.7cm.
QIs there any difference between the two models of RCA wear test paper 1116-P-01 and 1116-P-40?
A The 1116-P-01 is the price of a roll, and the 1116-P-40 is the price of a box.
QIs this for the paper tape wear machine? Is there a difference between the price of a 0.9 coefficient and a 1.0 coefficient?
A Yes, there is no difference in price, the coefficient is not fixed, and the coefficient may be different in different batches. When used, the formula * coefficient of friction is calculated; the greater the coefficient of friction, the less paper is used.
QWhat is the coefficient of your paper tape? Is this model the number on it?
A The specific tape coefficient may vary from batch to batch. Each box of tape has a description, which specifically indicates the coefficient.
QWhat's the coefficient of the tape?
A Each box of paper tape has a coefficient description, please refer to it in detail
QIs the asperity on both sides of the RCA paper tape the same, and stoving on the reverse side should be no problem, right?
A Paper tape is a consumable, a disposable product, and cannot be recommended for sexual repeability
QWhat is the mesh of the 1116-P-40 tape?
QIs there any requirement for the environment temperature where the RCA wear test tape is stored? I want to book more
A Hello, it is recommended to store in a dry and cold environment, the temperature is about 23 ± 2 ℃.
