MODERNER CCT-2 Floor Cover Abrasion Resistant Caster Tester φ 800mm

CCT-2

Floor Cover Abrasion Tester

Abrasion Tester for testing the abrasion resistance of the caster of the baseplate mass meter, the size of the table is about 800mm, the working disc rotates at 19rpm, the caster rotates at 50rpm, and the load is 90kg.

Overview and Security Requirements

CCT-2 caster resistance Tester is an important test instrument for testing the quality of the floor surface and the wear resistance of casters. Used to test the durability, abrasion resistance and crack resistance of resilient flooring and laminated floor coverings! . The principle is to use 3 casters with a certain load to repeatedly change direction, start and stop, and frequently pass the surface of the sample to test the durability of the sample, which is represented by the number of rotations of the sample. According to ISO 4918-2009, GB/T11982.2, BS/EN425 standards, there are three different test methods:

(A) Appearance change evaluation of 5000 laps and 25000 laps;

(B) 750-cycle gray card assessment of color change;

(C) Durability evaluation of 10000 cycles and 25000 cycles.

 The caster resistance Tester is used in the testing process of chemical related products. Users should establish appropriate safety and health protection measures and determine rules and regulations according to relevant safety regulations before use.

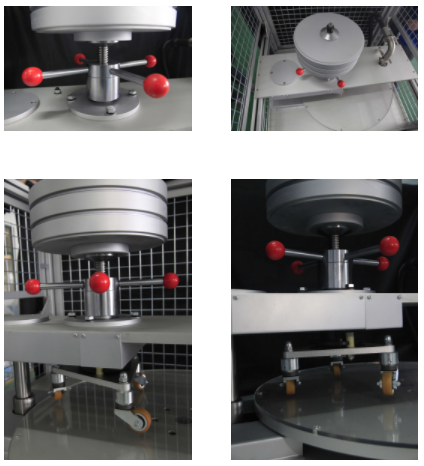

Outline drawing and main components

Principle

The movable and adjustable chair casters are controlled by the floor covering caster abrasion resistance testing machine, and the elastic floor and laminated floor coverings are placed on the test bench, and the casters are activated by the caster floor testing machine to act on the elastic floor and laminated floor coverings that have been placed on the test bench. Layers of floor coverings, and do a back and forth self-weight friction test for many times, after the specified test time or times, it will automatically stop and remove the sample to check its changes!

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
