COATTEST INSTRUMENT DJH-D Electrolytic Thickness Gauge platings thickness measurement instrument 0.01 μm resolution

SE
It can measure single-layer and composite multi-layer platings, with a minimum measurable size of φ 1.7mm and a resolution of 0.01μm. It supports chromium, nickel, copper and other metal platings measurement, and is basically not limited by the substrate.
$1190.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT

COATTEST INSTRUMENT DJH-D Electrolytic Thickness GaugeSPEC

COATTEST INSTRUMENT DJH-D Electrolytic Thickness GaugeDetails

COATTEST INSTRUMENT DJH-D Electrolytic Thickness GaugePacking list

SKU
NB018407
Measurement of plating
Standard configuration: chromium, nickel, copper, zinc, tin, silver, gold and other metal platings, composite platings (such as Cr/Ni/Cu), if you need to measure Miscellaneous platings, please ask in advance
Platings substrate
Metal, plastic, brass, zinc alloy, NdFeB, ceramics (basically not limited by the substrate)
Number of coating layers
Single layer and composite multi-layer
Minimum measurable size
φ 2.4mm and φ 1.7mm two sizes are standard, the plane is more than 3mm * 3mm, and the diameter of the circular shaft is more than 6mm. If you measure a smaller size workpiece, please submit it in advance.
Measurement range
0~ 300μm (the use range is 0.03~ 50um, beyond 50um, the error will gradually increase)
Indication Error
≤±10%
reproducibility
≤5%
resolution
0.01μm
power supply
AC 220V +/- 10%, 50/60Hz, 30W
DJH-D
Electrolytic Thickness Gauge
It can measure single-layer and composite multi-layer platings, with a minimum measurable size of φ 1.7mm and a resolution of 0.01μm. It supports chromium, nickel, copper and other metal platings measurement, and is basically not limited by the substrate.

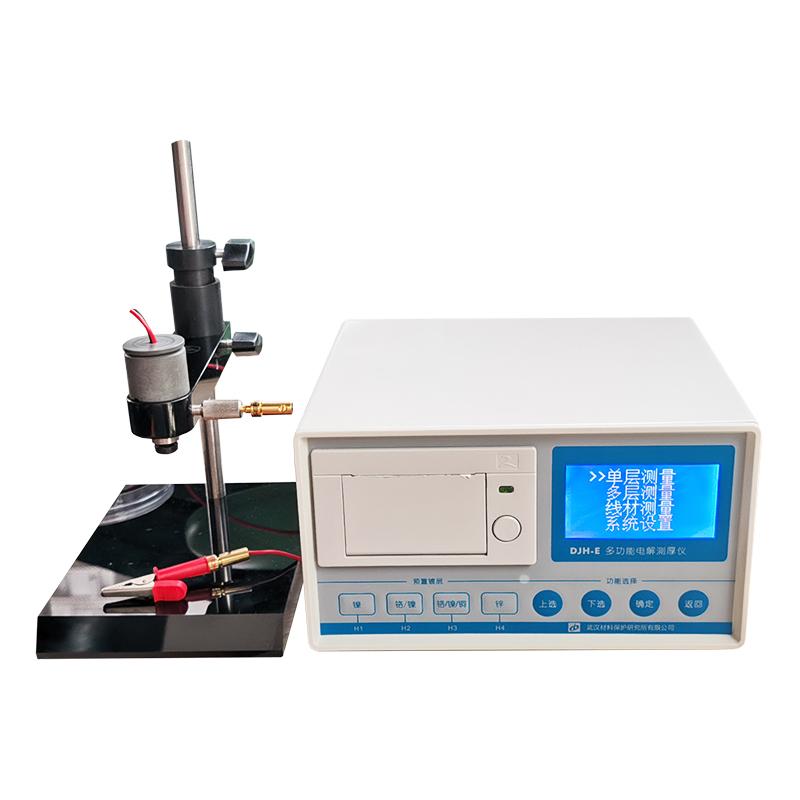

COATTEST INSTRUMENT DJH-D Electrolytic Thickness Gauge platings thickness measurement instrument 0.01 μm resolution Picture

Scope of application

Applicable fields: automobile and motorcycle industry, aerospace and navigation industry, bicycle industry, electronic and electrical industry, daily hardware industry, sanitary ware and sanitary ware industry, plastic electroplating industry, neodymium-iron-boron industry, standard parts industry, technical supervision departments and scientific research institutions.

Product Usage:Single or composite multi-layer thickness measurement

Additional information

The thickness gauge is calibrated from the factory, and if you need a plated calibration plate (made in the United States), you need to purchase it separately

FAQ
QHow does the DJH-D thickness gauge realize the separation of 3 layers of platings on one platings?
A For example, copper, nickel and chromium can measure the thickness of copper, nickel and chromium respectively, and different platings need to be replaced with the corresponding electrolysis solution.
QComposite platings (such as Cr/Ni/Cu) are required. Can DJH-D be realized?
A Yes, this one can measure three platings of copper, nickel and chromium.
QThe galvanized layer on the iron base is 3 microns, can it be measured?
A The principle of thickness measurement of electrolysis can be measured
QCan Electrolytic Thickness Gauges Test Copper Thickness on Titanium Substrates?
A Sure.
QElectrolysis thickness gauge Production of stainless steel plates, Eletroplating, platings thickness measurement Metallic nickel plating, Stainless steel itself also contains nickel, 0~ 5μm
A Can test Planar workpiece more than 3 * 3mm, circular shaft diameter more than 6mm
QWhat is the difference between the DJH-D and DJH-E thickness gauges?
A DJH-D no printing function, no clock display, other performance is exactly the same (Instrument Appearance is different, the function is the same)
QCan this measure the film thickness of the copper strip tin coating? The range is 2-40 microns.
A This is the film thickness that can test the tin plating layer of copper bars of 2-40 microns.
QMeet GB/T12305.1 Electrolytic Thickness Gauge
A DJH-D This one can meet the thickness measurement needs of Eletroplating pure gold, but it is not suitable for thickness measurement of gold alloys, such as k gold and chemical gold on PCB boards. Electrolytic Thickness Gauge cannot measure the thickness of gold alloys
QIs there any measurement of film thickness less than 50 microns, the substrate is brass, and the coating is zinc?
A Hello, according to your request, we recommend DJH-D Electrolytic Thickness Gauge for Material Protection.
