ION SCIENCE RION TVOC fixed PID monitor, range 0~100ppm

The ION SCIENCE TVOC stationary PID monitor is a fixed photoionized PID gas monitor with a range of 0-100ppm, with ATEX explosion protection certification. The TVOC stationary PID monitor continuously monitors total volatile organic gases.
Certificate
Contact
Details SPEC

Ion Science TVOC（0~100ppm） TVOC Fixed PID MonitorSPEC

Ion Science TVOC（0~100ppm） TVOC Fixed PID MonitorDetails

Ion Science TVOC（0~100ppm） TVOC Fixed PID MonitorPacking list

SKU
NB018425
Sensors (PID)
10.6 eV Ion Science grid electrode detection lamp
intrinsically safe certification
Hazardous area safety approval. ATEX: II 3 G Ex nA IIC T4 (-40 ℃ ≤ Ta ≤ 50 ℃); IECEX: II Ex ia IIC T4 (-20 ℃ ≤ Ta ≤ 50 ℃)
access protection level
IP-65 Wire Bushing; IP-45 Sensors
Power Supply
5-28VDC, maximum 65mA
output
4-20mA (requires 8-35VDC Power Supply)
range
0~100ppm
resolution
0.1ppm
Sampling method
Diffusion (External Electric Pump if required)
Display
7-Section display, 4-digit digital LCD, 4-color LED
Response time
Sensors T90 < 5s, Detector - 1 minute (standard)
Accuracy
0-100ppm ＞ 98％
calibrate
Magnetic, calibrated with 100 ppm isobutylene by calibrating package
Operating temperature
-20℃~50℃（-4℉—122℉）
Operating humidity
0~95% RH (non-condensing)
Weight
1.3kg（2.9lb）
Encasement Weight
1.47kg（3.2lb）
Dimension
120*160*70mm
Sensors principle
PID
TVOC（0~100ppm）
TVOC Fixed PID Monitor

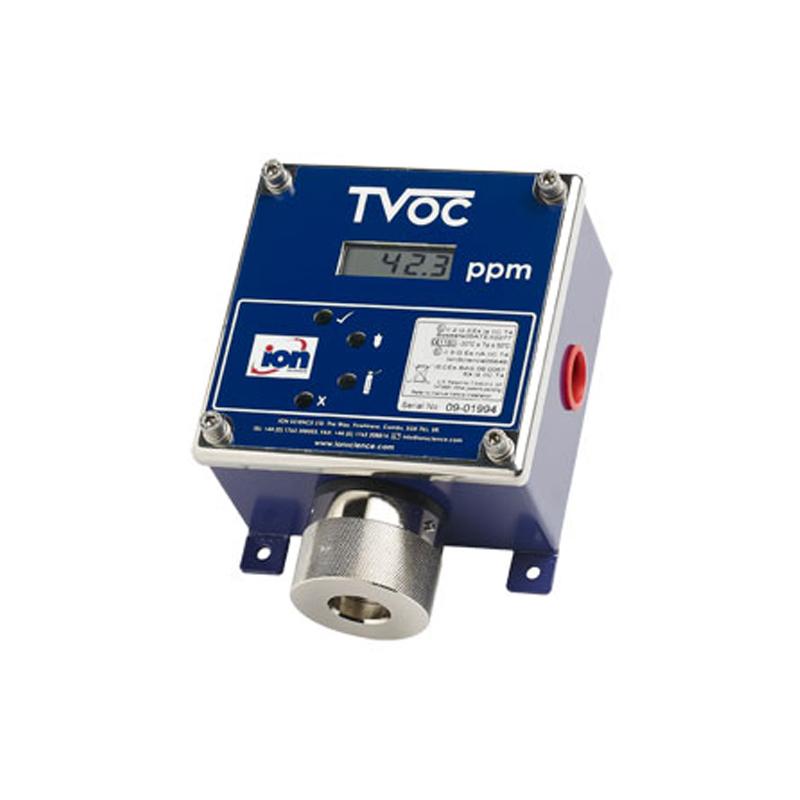

ION SCIENCE RION TVOC fixed PID monitor, range 0~100ppm Picture

Introduction

Designed and manufactured for continuous monitoring of VOC's, the TVOC is the perfect safety device for high-risk locations such as the manufacturing and processing industries. The TVOC is the first stationary photoionization (PID) gas monitor to continuously monitor total volatile organic gases. Equipped with a 4-20mA intelligent analogue output, the TVOC can be easily integrated into the DCS control system to achieve high VOC safety alarms in the Operating Environment.

Compared to pump-based systems, TVOC utilizes diffusion sampling technology to reduce contamination of the Test Chamber, resulting in fewer lamp cleanings and maintenance. TVOC is easy to install, maintain and calibrate. At the same time, no thermal effect permitting is required, and the PID sensor can be replaced and maintained in a matter of seconds.

Features

  • High-precision, moisture-proof and pollution-proof grid electrode technology

  • Intrinsically safe for use in hazardous areas – no additional blast barriers are required

  • Diffusion sampling—no electric pump required

  • LED and 4-20mA output fault indication

  • Equipped with a 10.6eV lamp

  • Electronic digital display

  • Easy replacement of PIDs for easier maintenance

  • The calibration procedure is simple

Application

  • Processing

  • Refineries and petrochemicals

  • Offshore drilling monitoring

  • Chemical

  • Sewage treatment plants

  • factory

  • Indoor air quality IAQ monitoring

  • Pulp and paper industry

  • Solvent refining system

  • Industrial paint and electroplating industry

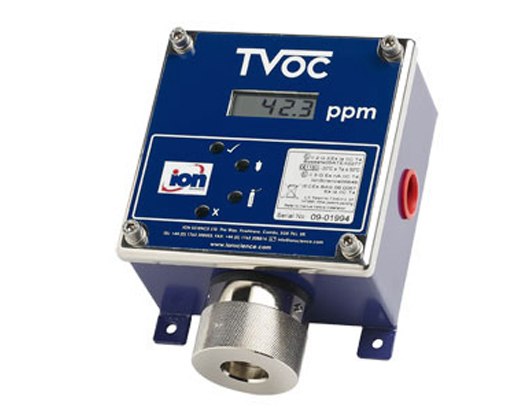

Ion Science TVOC fixed PID monitor display diagram

FAQ
QMeet the requirements of HJ1087TVOC fixed PID monitor
A TVOC (0~ 100ppm) TVOC fixed PID monitor, please refer to it.
