American NORMAN 1116-P-01 RCA paper tape RCA wear test paper tape general agent

SE
CHINA general agent, original imported RCA wear test tape, cash sales low price, buy more discount! Inks, Coating, Switch, Keyboard, Rubber, Printing and other wear tests.
$78.00/roll
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI

NORMANTOOL 1116-P-01-S Abrasion test tapeSPEC

NORMANTOOL 1116-P-01-S Abrasion test tapeDetails

NORMANTOOL 1116-P-01-S Abrasion test tapePacking list

SKU
NB018500
brand
American NORMAN
width
11/16 "broadband for general print testing
Weight
41 pounds
roll length
940~1000 feet, about 1800 cycles per roll
Temperature range
23 ± 2 ℃
Humidity range
50 ± 10%
1116-P-01-S
Abrasion test tape
CHINA general agent, original imported RCA wear test tape, cash sales low price, buy more discount! Inks, Coating, Switch, Keyboard, Rubber, Printing and other wear tests.
American NORMAN 1116-P-01 RCA paper tape RCA wear test paper tape general agent Picture

Norman General Agent Certificate

Introduction

The American norman RCA abrasion test paper tape, numbered 1116-P-40, is a special paper tape for the standard abrasion resistance testing machine for general printing testing, and is suitable for the RCA7-IBB paper tape abrasion testing machine. The width of RCA paper tape is 11/16inch, and there are 40 rolls per carton, and each roll tests about 1800 turns. RCA paper tape should be stored in a cold and dry place.

American norman RCA abrasion test strip display diagram

Application

Abrasion resistance tests for inks, coatings, ground tests, membrane switches, test buttons and keypads.

Production and physical display

As it appears on the marketMany manufacturers produce nominal RCA abrasion test strips, so please look for them when purchasingGenuine！

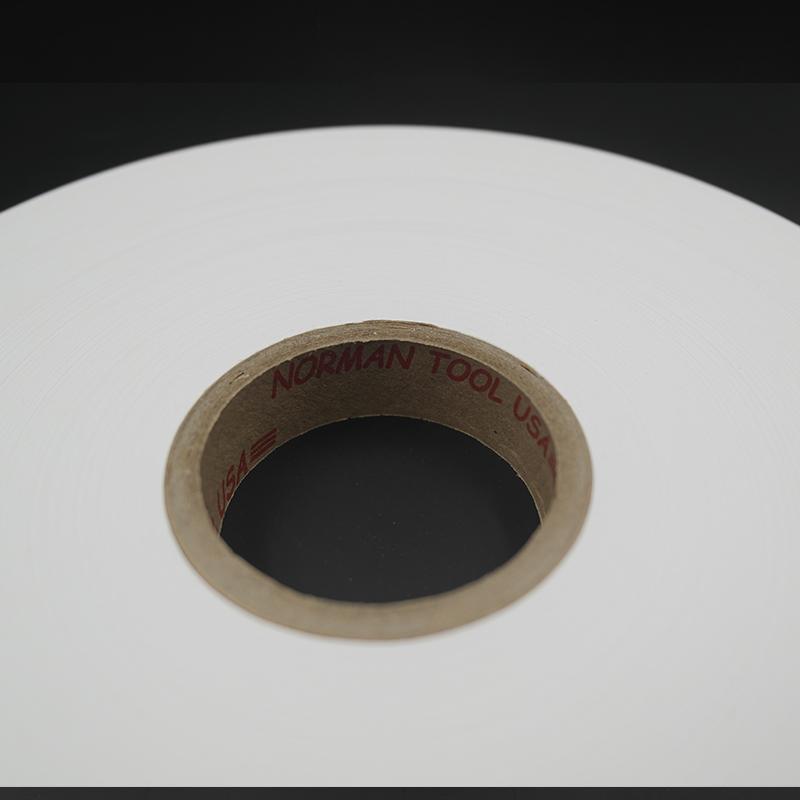

The original imported RCA abrasion test paper tape from norman in the United States shows Figure 1

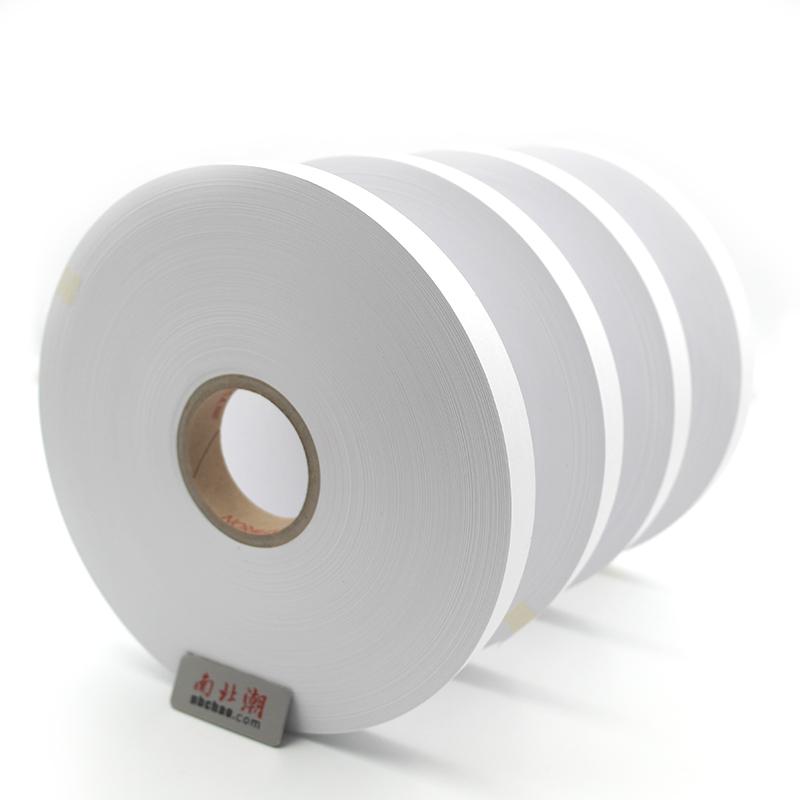

The original imported RCA abrasion test paper tape from norman in the United States shows Figure 2

The production process of RCA abrasion test paper tape imported from norman in the United States

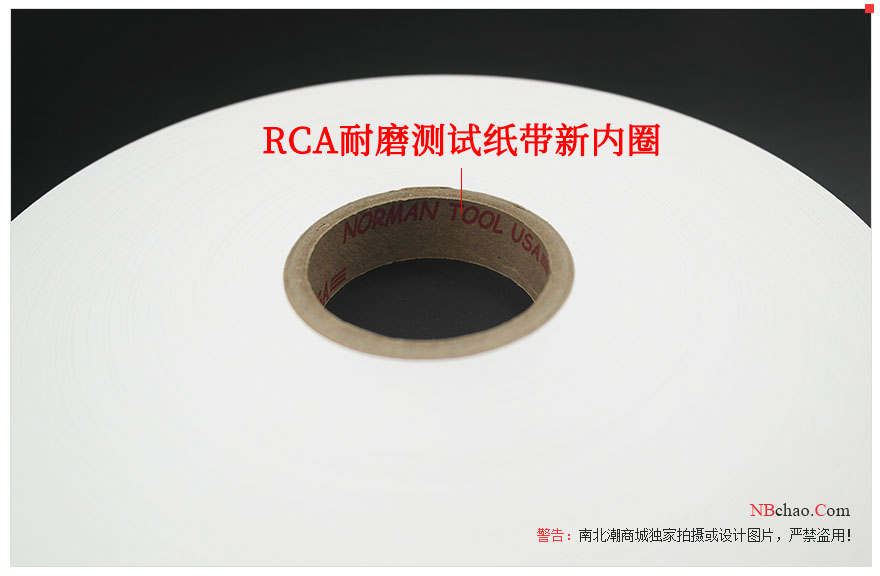

The serial number of the RCA abrasion test paper imported from the United States norman

The original imported RCA abrasion test paper tape test scene from norman in the United States

FAQ
QWhat are the specifications of RCA tape?
A The width of RCA tape is usually 11/16 inches, each box contains 40 rolls, and each roll can be tested about 1800 times. It needs to be stored in a dry and cold place.
Q0.9 coefficient of friction?
A 1.0 of.
QHello, what does this test paper 0.8 mean?
A This is the wear resistance coefficient. The wear resistance coefficient of different batches is different. Specifically, each box has a wear resistance coefficient certificate, which cannot be provided for single-roll purchases.
QExcuse me, RCA test paper, what is the difference between the tape coefficient 1.0 and 0.9?
A The coefficient of friction is not fixed. The supply of goods from the manufacturer sometimes changes. The coefficient of friction is 0.8, 0.9, 1.0, 1.1, etc., but we communicate with the American manufacturers and send us as close as possible to 1.0; these times the United States has shipped to us, both 1.0 and 1.1. When using it, it is the calculation formula * coefficient of friction; the greater the coefficient of friction, the less paper is used.
QExcuse me, what is the width of your test tape? Is it 17mm wide?
A 11/16 inch = 1.74625 cm (cm)
QWhat is the coefficient of friction? Is there any 0.8?
A The coefficient of friction is not fixed, and the supply of the manufacturer sometimes changes. The coefficient of friction is 0.8, 0.9, 1.0, 1.1, etc
QIs there any difference between the two models of RCA wear test paper 1116-P-01 and 1116-P-40?
A The 1116-P-01 is the price of a roll, and the 1116-P-40 is the price of a box.
QWhat is the coefficient of your paper tape? Is this model the number on it?
A The specific tape coefficient may vary from batch to batch. Each box of tape has a description, which specifically indicates the coefficient.
QWhat are the requirements for this Humidity storage?
A The relative humidity is 45%.
QDoes the wear resistance coefficient need to be 1.1? Is there a 1.1 one?
A Not necessarily, but all paper tapes are marked by box whether it is 0.9 or 1.0 or 1.1, and the single roll is not marked.
