MODERNER XD-41-UV1800 UV-Visible Spectrophotometer

The MODERNER UV-UV-Visible Spectrophotometer XD-41-UV1800 uses low stray light with a 1.8nm Light spectrum bandwidth. The XD-41-UV1800 has a Wavelength range of 190~1100nm and uses a dual beam of light path structure monochromator.
Certificate
Contact
Details SPEC

Moderner XD-41-UV1800 UV-UV-Visible SpectrophotometerSPEC

Moderner XD-41-UV1800 UV-UV-Visible SpectrophotometerDetails

Moderner XD-41-UV1800 UV-UV-Visible SpectrophotometerPacking list

SKU
NB018635
Optical inspection system
Single beam of light (1200/mm holographic light)
Light spectrum bandwidth
1.8nm
Wavelength range
190~1100nm
Wavelength Accuracy
+/- 0.1Nm (D2 656.1nm )， +/- 0.5nm full band
Wavelength Repeatability
≤0.2nm
Wavelength resolution
0.1nm
monitor
320 * 240 graphic LCD monitor
stray light
≤0.05%T@220nm,360nm
Photometric range
0.200%T、 0.301-3.0A、 9999.9999C
Photometric Accuracy
±0.002A(0~0.5A)、±0.004A(0.5~1A)、±0.008A(1~2A)、±0.3%T(0~100%T)
Luminosity Repeatability
±0.15%T(0~100%T)；0.001A(0~0.5A)；0.002A(0.5~1A)；0.004A(1~2A)
Baseline flatness
±0.002A
Baseline drift
Soil 0.002A/h (500nm, 0A, 2nm Light spectrum bandwidth, after 2h preheating)
photometric noise
±0.0005A（500nm，0A，2h）
Interface
USB1.1 optional built-in printer/USB2.0 printer/U disk Data output
Dimensions
569*448*230mm
Weight
15KG
XD-41-UV1800
UV-UV-Visible Spectrophotometer
MODERNER XD-41-UV1800 UV-Visible Spectrophotometer Picture

Applications

Used for scientific research in physics, chemistry, medicine, biology, geology and other disciplines. It is widely used in chemical industry, pharmaceuticals, biochemistry, metallurgy, light industry, materials, environmental protection, medical testing and other industries and important analysis industries. One of the best quality control instruments, it is a required instrument in routine laboratories.

Features

1) Using a low stray light, high-resolution dual-beam optical path structure monochromator, the instrument has good stability, reproducibility and accurate measurement readings.

2) Using new microprocessor technology, the instrument not only has control functions such as automatic setting of 0% T and 100% T, as well as concentration calculation and data processing functions of various methods, but also has special functions to prevent user operation errors. No worries when using it.

3) Scientific design, the application of new technologies, organically combining light, machinery, electricity and microcomputer technology, so that the stability index of the instrument is close to or reaching the level of advanced UV-visible Spectrophotometer s.

4) The large-screen graphic LCD display can not only display data, but also display maps. The rich in-machine software can complete quantitative analysis, qualitative analysis, kinetics, multi-wavelength, DNA/Protein and other tests, coupled with powerful storage With the printing function, all tests, analysis and data output can be completed without being connected to a computer.

5) The instrument can also be equipped with MODERNER user application software running on the WinXp operating platform, making the instrument more functional.

plan

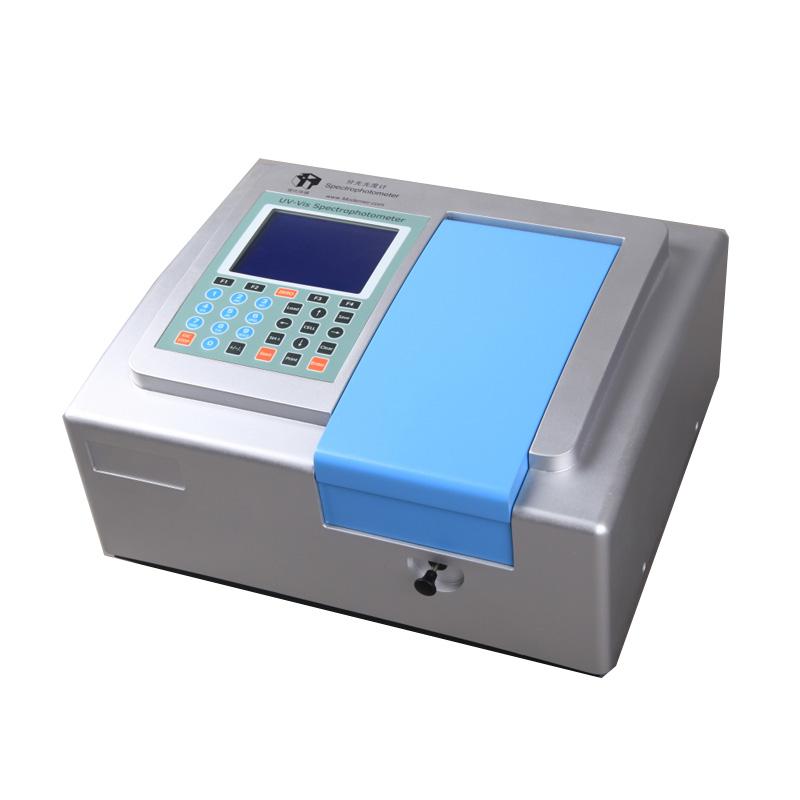

MODERNERal UV-UV-visible Spectrophotometer XD-41-UV1800 appearance picture 1

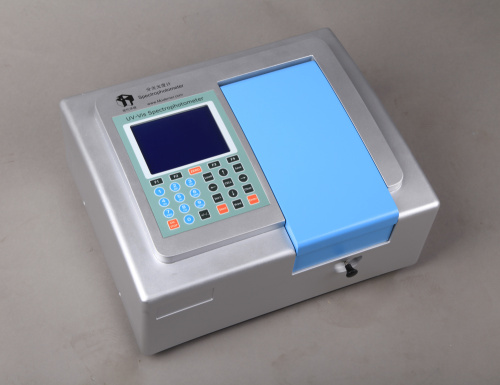

MODERNERal UV-UV-visible Spectrophotometer XD-41-UV1800 side view

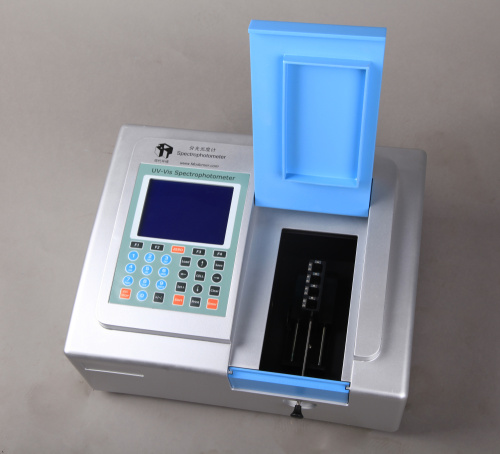

Detail of MODERNERal UV-UV-visible Spectrophotometer XD-41-UV1800


FAQ
QI want to do a test on the GB/T26810 standard. Is this UV-UV-Visible Spectrophotometer OK?
A Sure
