DLAB MS-H-Pro + Magnetic Stirrer for low viscosity solid-liquid mixing

DLAB MS-H-Pro + Magnetic Stirrer adopts international plug, Stir volume up to 20L, LCD liquid crystal digital display, MS-H-Pro + Magnetic Stirrer's working plate is stainless steel Ceramics coating, heating power 500w.
Contact
Details SPEC CAT

DLAB MS-H-Pro + (Pottery and porcelain coatings) Magnetic StirrerSPEC

DLAB MS-H-Pro + (Pottery and porcelain coatings) Magnetic StirrerDetails

DLAB MS-H-Pro + (Pottery and porcelain coatings) Magnetic StirrerPacking list

SKU
NB001867
Max. Capacity of stirring
20L
Stirring speed
100~1500rpm
Temperature range
RT+~340℃
Stir size
≤80mm
Pan size
Φ135mm
Dimensions
160*280*85mm
Machine Weight
2.8kg
Panel Material
Pottery and porcelain coatings
Motor type
DC brushless motor
input power
18W
output power
10W
Heating power
550W
Power Supply
100~120/200~240V 50/60Hz
Rated frequency
50/60Hz
station number
1 station
display mode
LCD
RPM display resolution
±1rpm
Heating power
500w
Temperature control Accuracy
±1（＜100℃）±1%（＞100℃）
Safety protection temperature
360℃
Temperature display resolution
±0.1℃
Temperature transducer
PT1000
External temperature transducer temperature control Accuracy
Pt1000:±0.2℃
Waste heat warning function
50℃
Data Interface
RS-232
Protection level
IP42
Allowable environment temperature
5~40℃
Allowable Relative Humidity
80%
MS-H-Pro + (Pottery and porcelain coatings)
Magnetic Stirrer

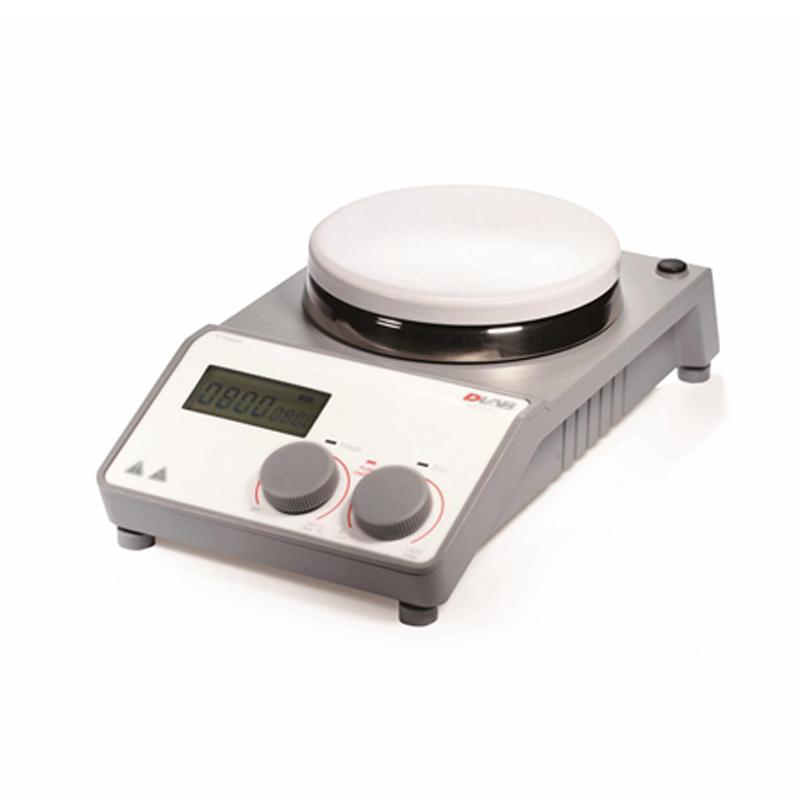

DLAB MS-H-Pro + Magnetic Stirrer for low viscosity solid-liquid mixing Picture

Introduction

Dalong Xingchuang MS-H-Pro+ is an LCD CNC heating disc magnetic stirrer, using international plugs, the maximum stirring capacity of MS-H-Pro+ heating magnetic stirrer is 20L, the working plate is stainless steel ceramic coating, and the heating power is 500W.

Features

  • The new heating stirrer has new rapid heating and stirring technology and precise temperature control technology, which is suitable for unmanned operation;

  • Heated magnetic stirrer with safe temperature control for unmanned operation;

  • Two independent safety loops;

  • Independent temperature sensor detection, protection temperature can be set;

  • External PT1000 temperature sensor can be used;

  • At the end of the experiment, the heat warning screen shows the residual temperature of the Heating Plate;

  • A variety of operating modes ensure that the stirring and heating functions are not altered by external factors.

Pictures


FAQ
QI want to do a test on the GB/T33546 standard, is this Magnetic Stirrer okay?
A Sure
