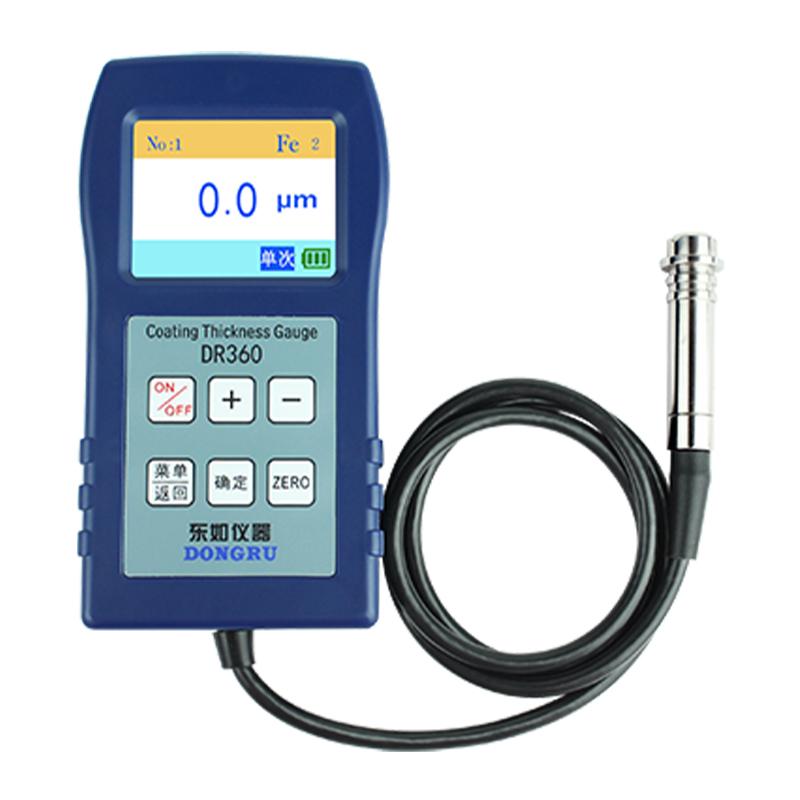

DONGRU DR360 metal Thickness Gauge, professional measurement of the thickness of coated platings

DR360

Coating Thickness Gauge

Dual-function metal Thickness Gauge, thickness range 0~1250 microns, touch button operation, imported metal probe, support zero and two point calibrating, in line with GB/T 4956 standard.

Introduction

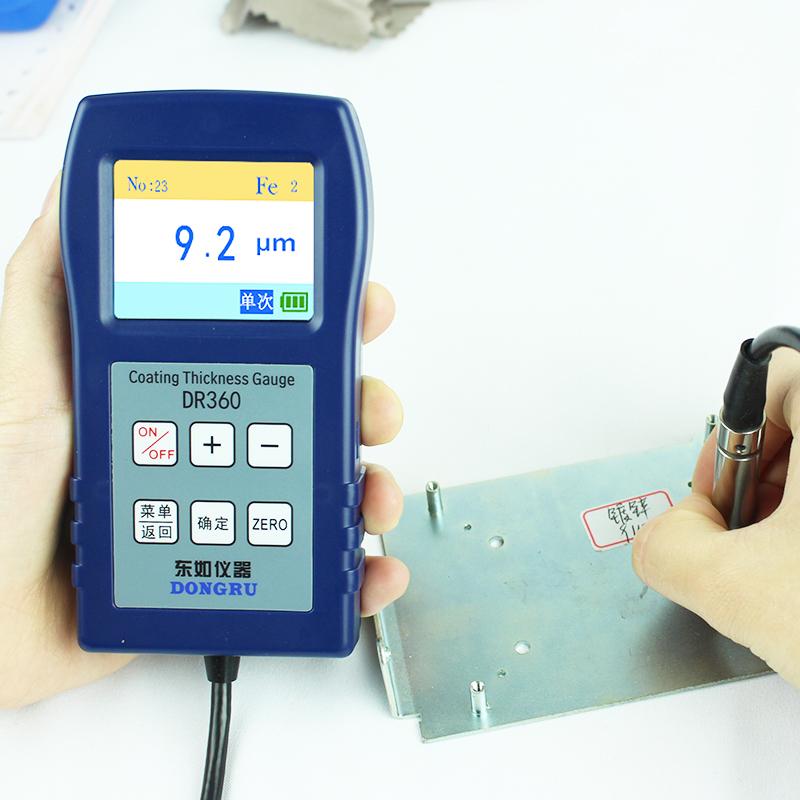

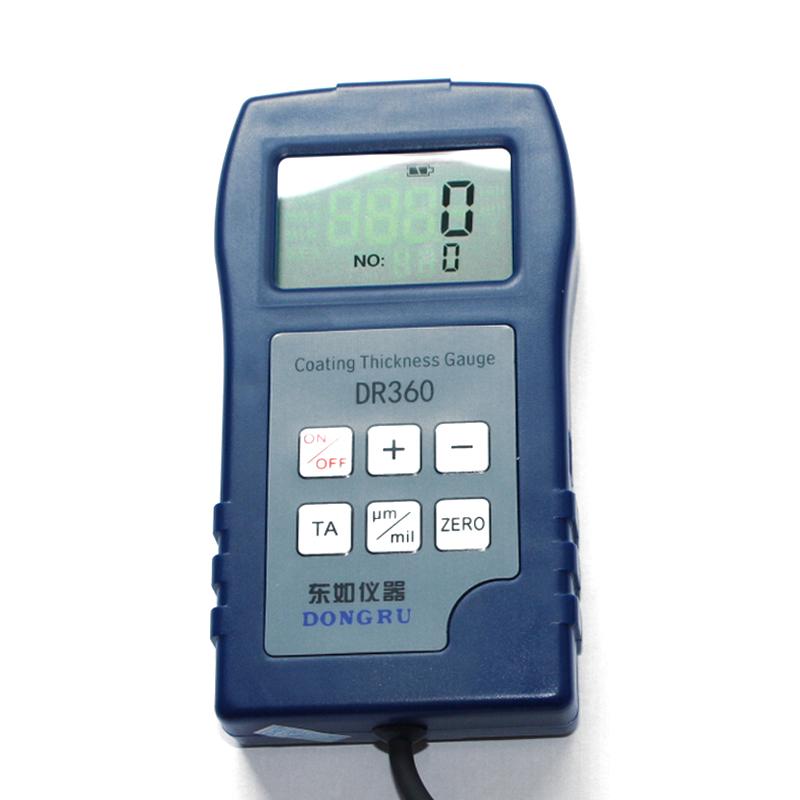

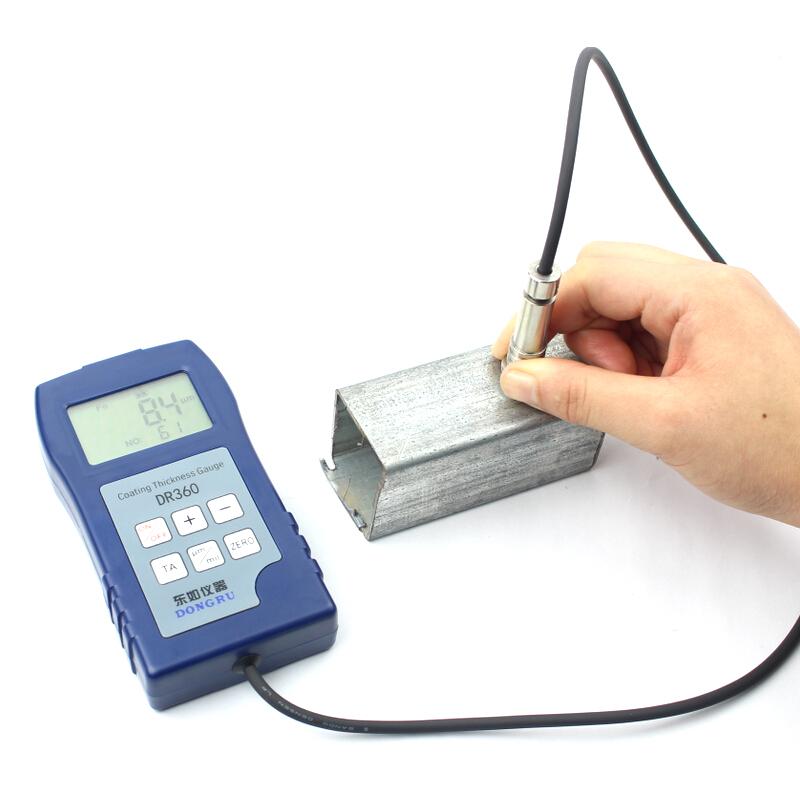

Dongru DR360 Metal Thickness Gauge is a coating Thickness Gauge with a split structure and a dual-function magnetic coating Thickness Gauge. The DR360 metal Thickness Gauge is operated by touch buttons, and the measured data is displayed on the LCD, which is convenient for reading. The probe of the metal Thickness Gauge adopts a small measuring head of imported high-quality metal material, which makes the thickness measurement more accurate and reliable. The measurement range is 0~1250 microns, and the minimum measurement substrate is 0.3mm.

Dongru DR360 Metal Thickness Gauge is a method that applies the principle of electromagnetic induction. It can non-destructively measure the thickness of non-magnetic coatings (such as: paint, electrophoresis, powder, galvanized, chromium, copper, indium, enamel, rubber, enamel, anti-corrosion layer, paint) on magnetic metal substrates (such as: steel, iron) etc.), easy to use, easy to carry, LCD display, large font size, backlight direct reading is clearer, precise and firm structure, better repeatability, and excellent performance.

Features

1. The DR360 metal Thickness Gauge has a variety of measurement modes to choose from

2. There are two optional modes of continuous test and single measurement; continuous test can effectively reduce human error and make the measured value more accurate.

3. It can count the maximum value, minimum value, average value, and measurement times. It can be completed with one key, good, effective, and convenient.

4. Fast test speed, high sensitivity, beautiful appearance and fine workmanship

5. DR360 metal Thickness Gauge adopts imported high-quality metal small measuring head, which has more stable performance, wear resistance and pressure resistance, and long service life

6. Fully intelligent touch buttons, non-slip type, unique design, novelty, humanization, compact structure, professional technology

7. Large LCD display, backlight, large font size display, clear and accurate reading height at any angle

8. With data storage function, stable storage

9. Large-capacity storage, which can store more than 800 measurement data, connect to the computer to read the data and print and save

10. Two calibration methods can be used: zero-point calibration and two-point calibration, two-point calibration is more accurate.

11. DR360 Coating Thickness Gauge has a buzzer sound during operation (single measurement mode)

12. Metric and imperial conversion μm/Mil

13. Low Voltage indication

14. Manual/automatic shutdown function

Standards

According to the national industry: GB/T 4956-1985 standard, DR360 metal Thickness Gauge is a professional non-destructive testing instrument for measuring the thickness of magnetic metal material surface coating layer objects.

Packing list：Thickness gauge x1, calibrated diaphragm (50, 100, 250, 370 μm) x4, iron matrix x1, ABS instrument Encasement box x1, battery x1, manual x1, certificate x1, cleaning cloth x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
