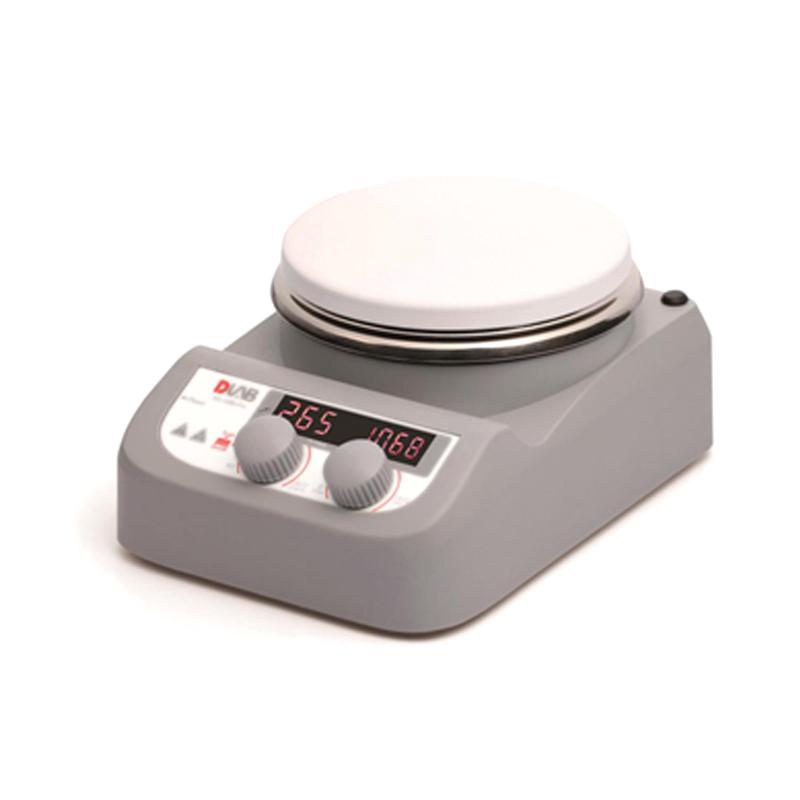

DLAB MS-H280-Pro Digital Display Heating Magnetic Stirrer Over Temperature Protection

DLAB MS-H280-Pro Digital Display Heating Magnetic Stirrer Max. Stirring Capacity 3L, stirring speed 200~1500rpm, Temperature range RT +~ 280 ℃, stirringrod size 50mm, working plate size 0019 135mm
Contact
Details SPEC CAT

DLAB MS-H280-Pro (set) Magnetic StirrerSPEC

DLAB MS-H280-Pro (set) Magnetic StirrerDetails

DLAB MS-H280-Pro (set) Magnetic StirrerPacking list

SKU
NB001870
Max. Capacity of stirring
3L
Stirring speed
200~1500rpm
Temperature range
RT+~280℃
Stir size
50mm
Pan size
Φ135mm
Dimensions
150*260*80mm
Machine Weight
1.8kg
Panel Material
Pottery and porcelain coatings
Motor type
DC brushless motor
input power
5W
output power
3W
Heating power
515W
Power Supply
100~120/200~240V
Rated frequency
50/60Hz
station number
1 station
display mode
LED
RPM display resolution
-
Heating power
500w
Temperature control Accuracy
±1（＜100℃）±1%（＞100℃）
Safety protection temperature
320℃
Temperature display resolution
±1℃
Temperature transducer
PT1000
External temperature transducer temperature control Accuracy
±0.5
Waste heat warning function
50℃
Data Interface
N/A
Protection level
IP21
Allowable environment temperature
5~40℃
Allowable Relative Humidity
80%
MS-H280-Pro (set)
Magnetic Stirrer
DLAB MS-H280-Pro Digital Display Heating Magnetic Stirrer Over Temperature Protection Picture

Features

  • Capable of high-load, ultra-long continuous work, outstanding performance.

  • The speed range can reach 1500rpm, and the high-low speeds are precise and controllable.

  • Brushless DC motor, low noise, maintenance-free.

  • The speed LED display allows for real-time data reading.

  • Safety loop setting: the circuit will be automatically cut off in case of abnormality to ensure the safety of users.

Pictures

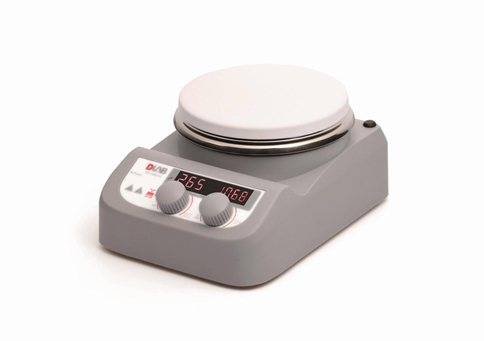

Dalong Xingchuang heated magnetic stirrer MS-H280-Pro display diagram


FAQ
QWhat is the maximum disk temperature of this one?
A Ms~ h280-pro, is with heating. The disk is up to 280 ° C.
QCan this Magnetic Stirrer be applied to GB/T33546?
A OK
