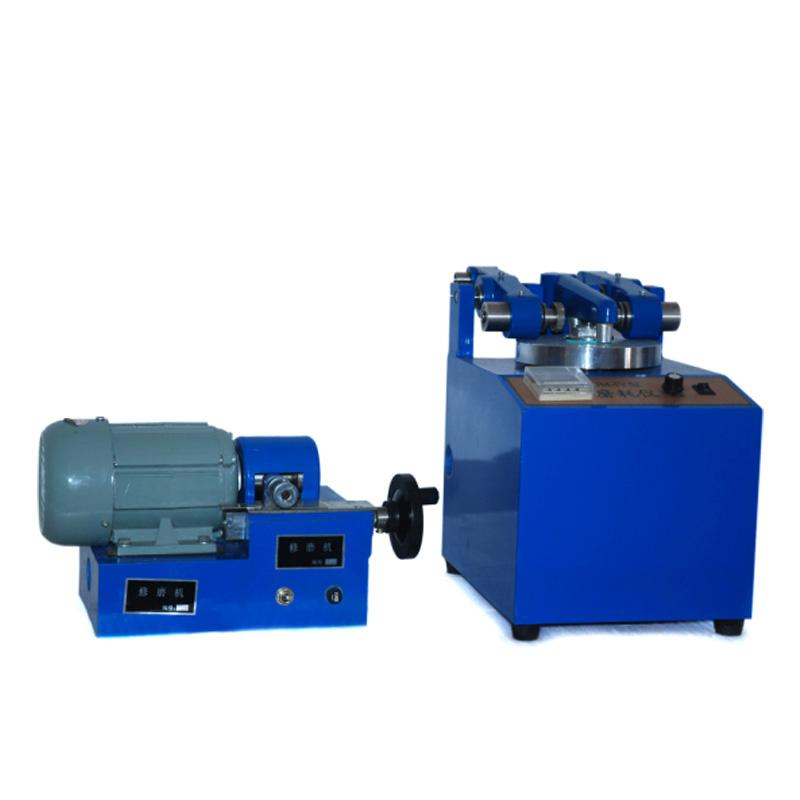

JINGKELIAN JM-IV Film abrasion machine Abrasion machine

SE
Rotation speed 0~70r/min, model chassis φ 100mm × φ 6.2mm (center hole) × 3mm, abrasive wheels size φ 50mm × φ 16mm (center hole) × 13mm, load 500 grams, 750 grams, 1000 grams
$1224.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con
Similar products

JingKeLian JM-IV Film abrasion instrumentSPEC

JingKeLian JM-IV Film abrasion instrumentDetails

JingKeLian JM-IV Film abrasion instrumentPacking list

SKU
NB018905
Main motor
40W 220V 50Hz
Turntable speed
0～70r/min
Model chassis
φ100mm×φ6.2mm（中心孔）×3mm
Abrasive wheels size
φ50mm×φ16mm（中心孔）×13mm
Load
500G, 750g, 1000g Weight: 15Kg
Overall Dimensions
340 × 240 × 200mm (L × W × H
JM-IV
Film abrasion instrument
Rotation speed 0~70r/min, model chassis φ 100mm × φ 6.2mm (center hole) × 3mm, abrasive wheels size φ 50mm × φ 16mm (center hole) × 13mm, load 500 grams, 750 grams, 1000 grams
JINGKELIAN JM-IV Film abrasion machine Abrasion machine Picture

Introduction

JM-Ⅳ abrasion Tester is suitable for testing the wear resistance of various coatings. Such as deck paint, floor paint, road paint, etc. It can also be used to test the wear resistance of paper, plastics, textiles, decorative panels, etc. The instrument adopts stepless speed change, which can meet the user's requirements for different speeds, and can use different material grinding wheels according to different tested samples. It has the characteristics of simple operation and reliable performance.

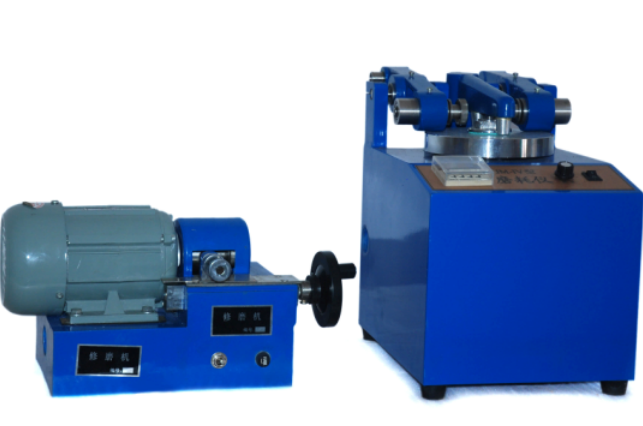

JinKeLian JM-IV Paint Film Abrasion Tester

FAQ
QWhy is the weight weight of the paint film abrasion instrument belt inconsistent? The mark on it is 1000g, and the weighing is only 750g; the 500g is only 250g, and each is 250g less.
A The weight of the weight is calculated as a weight with the weight axis on the instrument. The weight axis is 250 grams. The actual weight should be: weight weight + weight axis weight, which is all done according to the standard.
QIs this with a pump? What pump is it?
A Abrasion machine without pump with grinding machine.
QWhat is the rotary speed of the Jingke JM-IV film abrasion instrument?
A Hello, the turntable speed is 0~ 70r/min.
QMeet GB/T4893.8 film abrasion instrument
A JM-IV film abrasion instrument, please refer to
Standard
