CHINA Tensile Tester BLD-05T Power Sensors 5T
BLD-05T
BoLaiDe BLD-05T Tensile TesterSPEC
BoLaiDe BLD-05T Tensile TesterDetails
BoLaiDe BLD-05T Tensile TesterPacking list
- SKU
- NB019077
- Measurement range
- 5T
- Force Precision
- ≤0.3％
- Capacity segmentation
- The whole process is not divided into gears, stepless speed regulation
- Power system
- AC servo motor + servo driver + worm gear reducer + ball screw
- Control system
- External Control mode
- Walking space
- 800Mm (including gripper)
- Large deformation two-point extensometer
- Resolution 1/100, Precision +/- 1mm
- Safety Devices
- Overload emergency shutdown device, up and down stroke limiting device, automatic breakpoint shutdown function
- Speed control range
- 0.01mm/min~ 500mm/min (Test speed can also be customized according to customer needs)
- test width
- 400mm
- Power
- About 2.3KW
- Machine size
- Approx. 910 × 650 × 2300 mm Length × Width × Height
- Net Weight
- 640kg
Product introduction

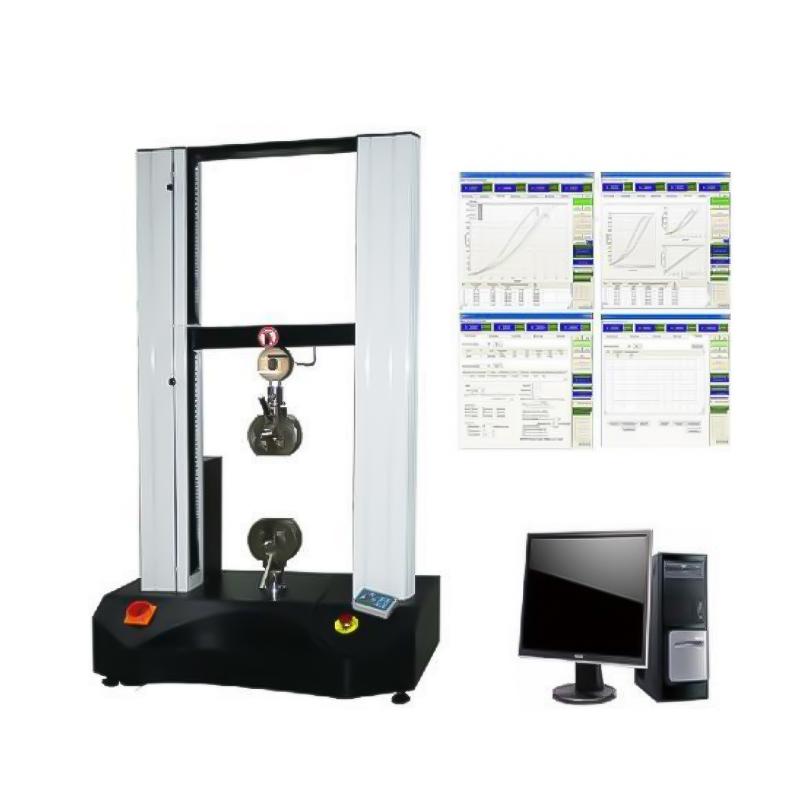

The material testing machine adopts computer control, sensor force measurement system and gantry frame. It has novel structure, accurate digital processing, simple operation and convenient use and maintenance.
This machine is a high-precision and multi-purpose material testing machine for mechanical properties testing of metal and non-metallic materials. It can perform tensile, compression, bending, shearing, tearing, and peeling tests. It can calculate parameters such as maximum force, yield force, average peeling force, maximum deformation, yield point, elastic modulus, etc.; It can perform curve processing, multi-sensor support, graphic and image-based interface, flexible data processing, and MS-ACCESS database support, making the system more powerful. Used for scientific research departments, colleges and universities, and industrial and mining enterprises to conduct mechanical properties analysis and production quality inspection of various materials.
Electronic universal testing machine software function introduction
A. Sample information: Provide user-set sample data, including width, thickness, diameter, area, gauge distance, etc.
B. After the test, it will be automatically archived and not saved after power failure. After the test, the maximum force, yield strength, tensile strength, compressive strength, fixed elongation strength at any point, load extension at any point, elongation rate, etc. will be automatically calculated.

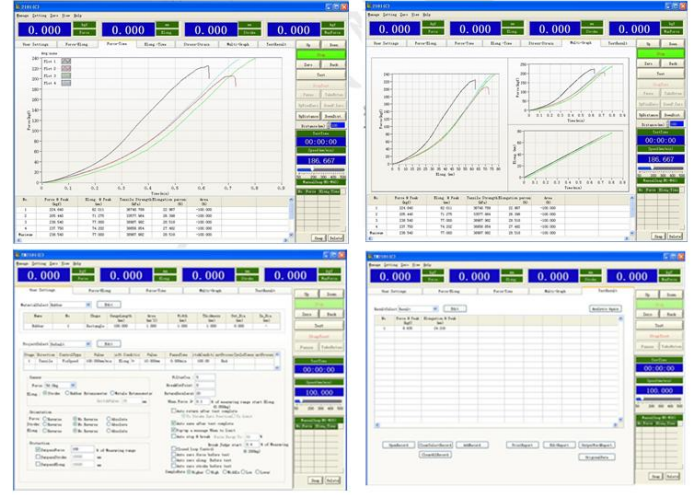

operating software interface
