PERFECT PT-8216B Electronic Cardboard Piercing Strength Testing Machine

PT-8216B Electronic Cardboard Piercing Strength Testing Machine is suitable for compression and holding pressure tests of various Encasement bodies and cartons. The test results can be used as an important reference for the height of finished Encasement boxes stacked in factories or an important basis for designing Encasement boxes.
Model：
Certificate
Contact
Details SPEC
Similar products

Perfect PT-8216B Cardboard penetration Strength TesterSPEC

Perfect PT-8216B Cardboard penetration Strength TesterDetails

Perfect PT-8216B Cardboard penetration Strength TesterPacking list

SKU
NB019201
Capacity selection
Choose one of 1000, 2000, 5000, 10000kg
Measurement and control software
The perfect test software under Windows 2000/XP platform
Force Precision
Better than +/- 1.0%
Force resolution
1/100,000
Measurement range
0.5~100%F.S
Precision indication
Better than +/- 1.0%
Test speed range
0.5~ 200mm/min, can be set arbitrarily
Test space
120×120×120cm
Unit switch
Measurement units including SI units, users can also customize the required units
shutdown mode
Upper and lower limit safety settings, emergency stop button, program power and elongation settings, specimen damage sensing
Special features
Holding pressure test can be done
Standard configuration
1 commercial computer, 1 color printer
optional configuration
1 heightening seat for the testing machine
Machine size
162*120*191cm
Weight
About 400kg
Power system
Digital AC servo motor
Power supply Voltage
1PH, 220V, 50/60Hz, 15A or as specified
PT-8216B
Cardboard penetration Strength Tester

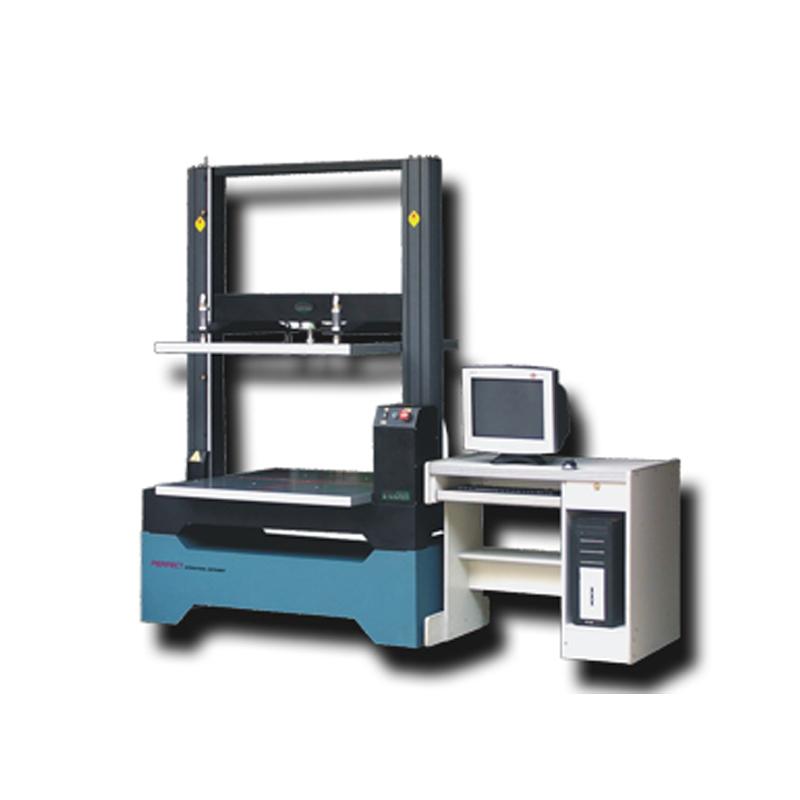

PERFECT PT-8216B Electronic Cardboard Piercing Strength Testing Machine Picture

use

PT-8216 computer servo system packaging container compression testing machine is suitable for all kinds of packaging body, carton compression and pressure test, the results of the test can be used as an important reference for the height of the finished packaging box stacked in the factory or an important basis for the design of the packaging box. It can carry out tests according to GB, ISO, ASTM, BS, DIN, JIS and other national or international standards, and provide testing and research equipment for various factories and enterprises, technical supervision departments, commodity inspection institutions, scientific research institutes and colleges and universities.

peculiarity

PT-8216 testing machine is a fully computerized packaging container compression testing machine newly designed and developed by the company:

1. The structure of the machine is made of aluminum extruded sealing plate treated with high-grade baking paint, and the built-in double ball screw and guide column with high precision, low resistance and no backlash are built, which improves the load efficiency and structural rigidity;

2. The control system adopts digital AC servo to control the AC servo motor with high response frequency to ensure that the transmission system has high efficiency, stable transmission, low noise and speed accuracy within ±0.2%;

3. The microcomputer system uses a commercial computer as the main control machine, and cooperates with the company's professional testing software to complete all test parameter setting, working state control, data acquisition and analysis processing, result display and printout;

4. The product performance is stable and reliable, the measurement accuracy is high, the test software is powerful, and the operation is simple and easy to understand.

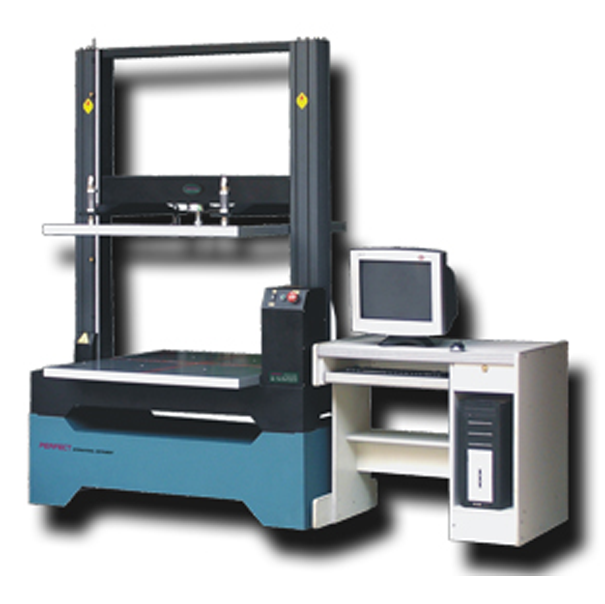

Baoda Instrument PT-8216B Electronic Cardboard Piercing Strength Test

FAQ
QDoes this Cardboard Pierce Strength Tester meet the JJG (Light Industry) 56 standard?
A The Cardboard piercing strength testing machine is suitable for JJG (light industry) 56. Please consult customer service for detailed application definition.
