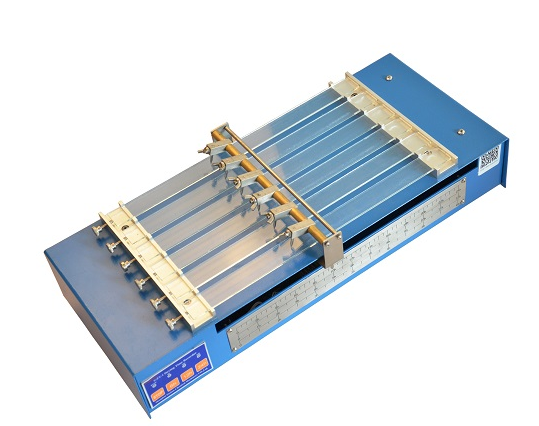

PUSHEN GZY-I Linear Drying Time Recorder

GZY-I

Drying Time Recorder

PUSHEN GZY-I Linear Drying Time Recorder is used to test the drying and curing time of coatings and paints. According to the drying condition of the surface coating, the specimen is moved vertically to meet ISO and ASTM standards to ensure the mass of coatings and paints.

Introduction of GZY-I drying time Recorder

GZY-1 paint film drying time Tester is mainly used to test the drying and curing time of coatings and paints.

According to the gradual drying and curing of paint and paint over time, the device draws a needle on the coating of paint and paint, and measures the drying and curing time of paint and paint by observing the scratches.

The main structure

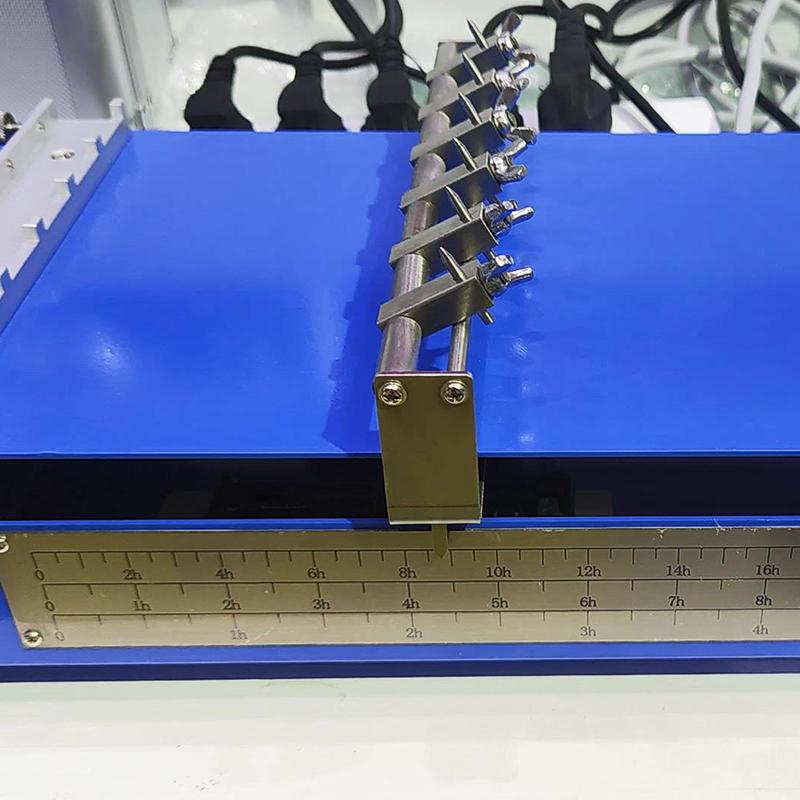

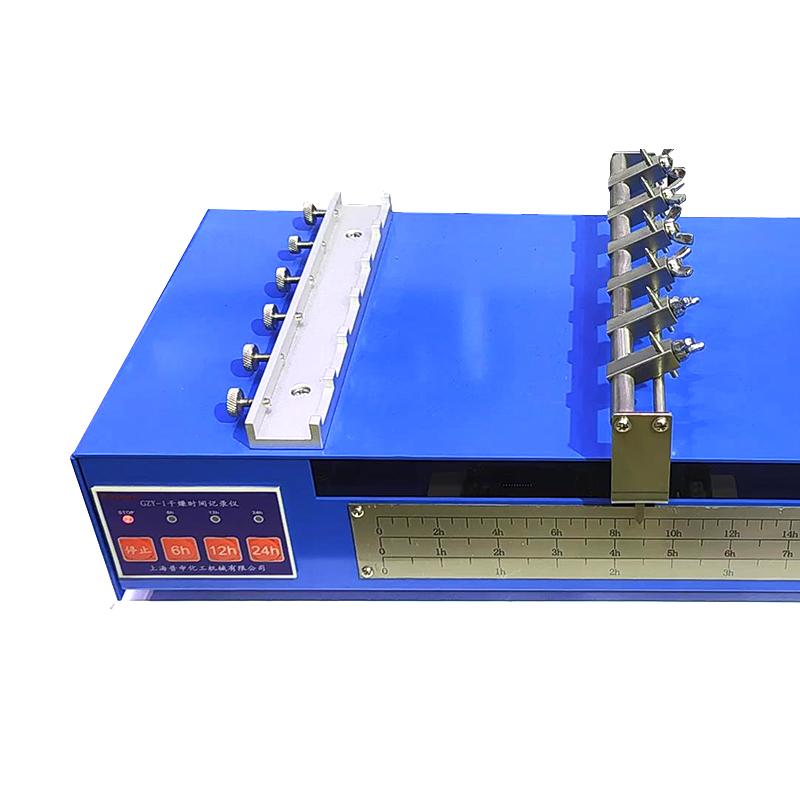

Six paddles with domed contacts, mounted on carriages.

The paddle is driven by the carriage, contacts with the new coating layer, and moves longitudinally on the sample starting from one end.

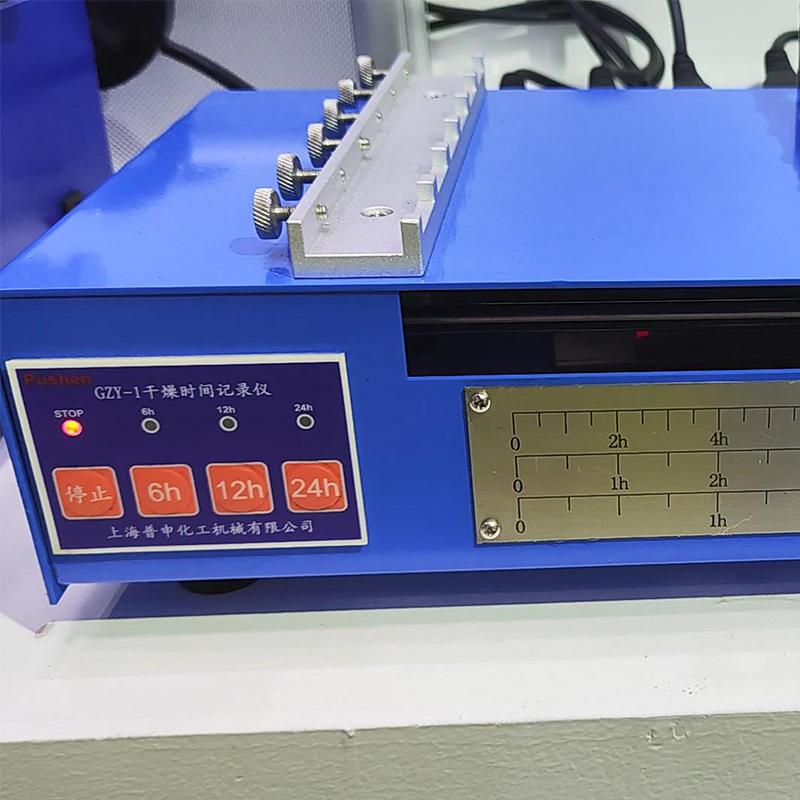

The moving time can be measured through the scale on the edge of the instrument, which corresponds to each drying stage of the observation track.

The coatings were pre-coated on glass strips 23 mm wide and 340 mm long, using a square maker for coating. The principle of the drying time Recorder is based on the mathematical formula:

distance = speed x time

Standards

ISO 9117-4

ASTMD 5895

Application

The paint film drying time Tester is suitable for measuring the drying time of surface coatings such as paints and coatings, so as to ensure the quality of paints and coatings and the surface quality of coatings.

Packing list：Drying Time Recorder × 1, Installation needle × 6, Glass strip × 6 (warm reminder: 6 pieces are standard, this fragile consumable will be delivered 6 more pieces in order to make up for the damage caused by Glass strip during transportation), Instruction manual × 1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
