LIULING CH-10-A (large) φ 10mm upper probe, 100% hand-type large-span rubber thickness gauge 0mm~ 10mm

SE
LIULING CH-10-A (large) φ 10mm upper probe, percentile hand large span rubber thickness gauge is a hand large span rubber thickness gauge with a range of 0mm~ 10mm, CH-10-A rubber thickness gauge has a measurement depth of 130mm.
$309.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con CAT OI

LiuLing CH-10-A (large) φ 10mm upper probe Percent Hand Large Span Rubber Thickness GaugeSPEC

LiuLing CH-10-A (large) φ 10mm upper probe Percent Hand Large Span Rubber Thickness GaugeDetails

LiuLing CH-10-A (large) φ 10mm upper probe Percent Hand Large Span Rubber Thickness GaugePacking list

SKU
NB019840
Measurement range
0~10mm
Measurement accuracy
≤0.02mm
reading display
Pointer
Graduation
0.01mm
Pressure and mass required
22kPa±5 kPa (63 g±7 g)
Probe diameter
φ 6mm plane
Meet the standard
HG/T 2041-2009
Probe center to maximum measurement depth
130mm
CH-10-A (large) φ 10mm upper probe
Percent Hand Large Span Rubber Thickness Gauge

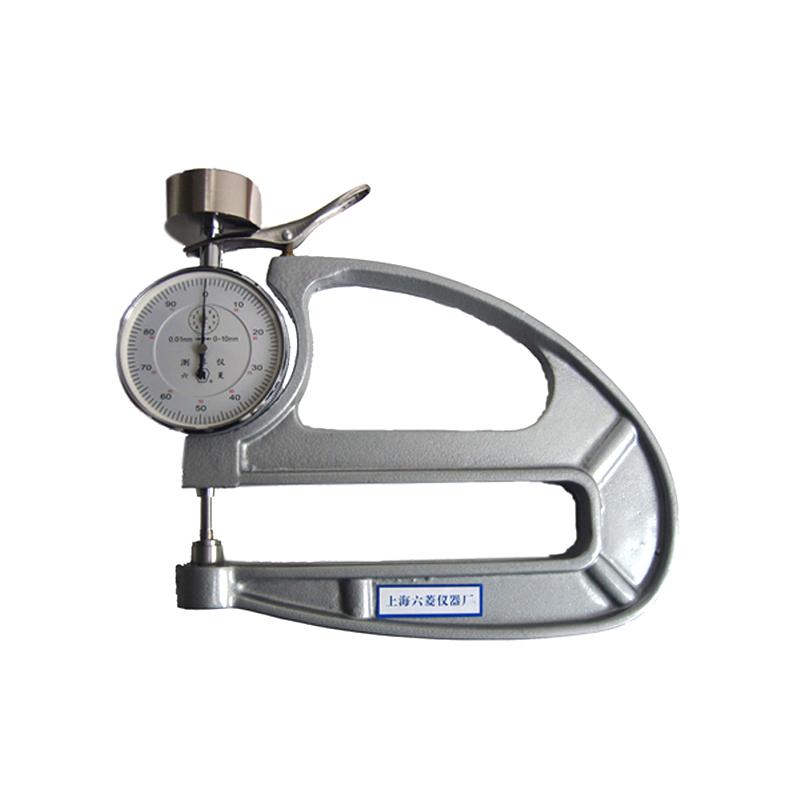

LIULING CH-10-A (large) φ 10mm upper probe, 100% hand-type large-span rubber thickness gauge 0mm~ 10mm Picture

Introduction

Liuling CH-10-A (Large) Hand Type Large-Span Rubber Thickness Gauge This Thickness Gauge is an instrument for measuring the thickness of rubber and plastic products, which refers to the implementation of HG/T 2041-2009 "Technical Conditions for Rubber Thickness Gauges", HG/T 2198-2011 "General Requirements for Physical Test Methods for Vulcanized Rubber" and HG/T 2382-1992 "General Technical Conditions for Rubber Testing Instruments and Equipment" and other industry standards of the Ministry of Chemical Industry. It has the characteristics of simple structure, easy to use and reliable quality. The long-span Thickness Gauge with a measurement depth of 130mm is only available in a manual version. It is easy to carry, hand-held measurement, and suitable for on-site measurement in the workshop.

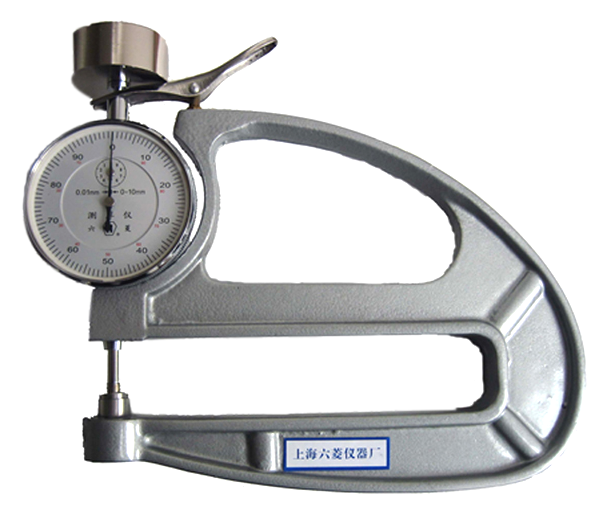

Liuling CH-10-A rubber Thickness Gauge display diagram

FAQ
QWant to find a thickness gauge that can measure the thickness of silicone rubber film, do you have any suggestions?
A Hello, this one can be tested with an accuracy of 0.01mm.
QDo you have the hand-type large-span rubber thickness gauge required in the JJG (Light Industry) 50.3 standard?
A This CH-10-A hand-held large-span rubber thickness gauge will do.
