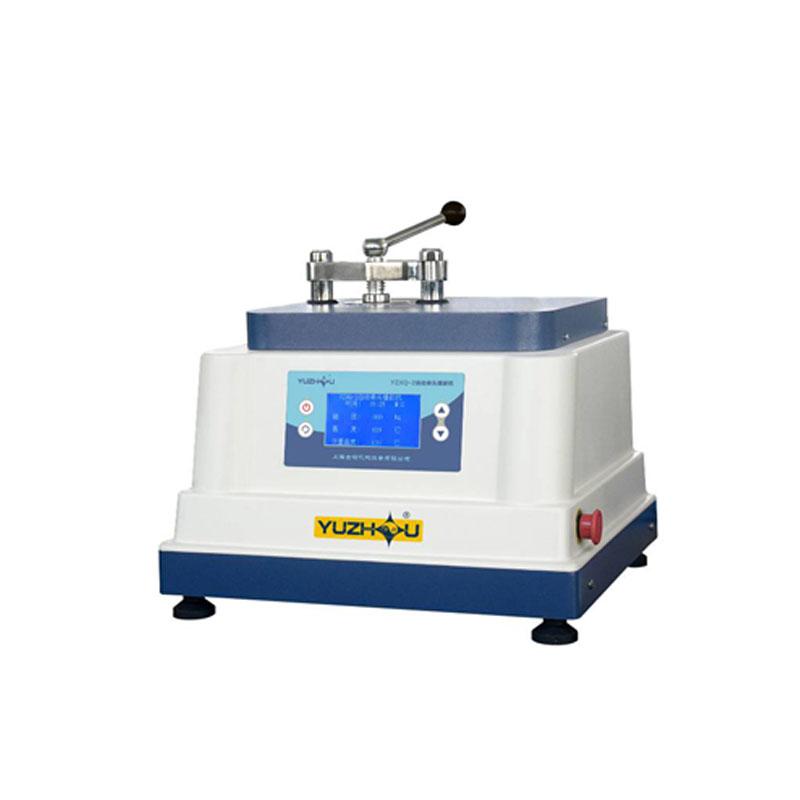

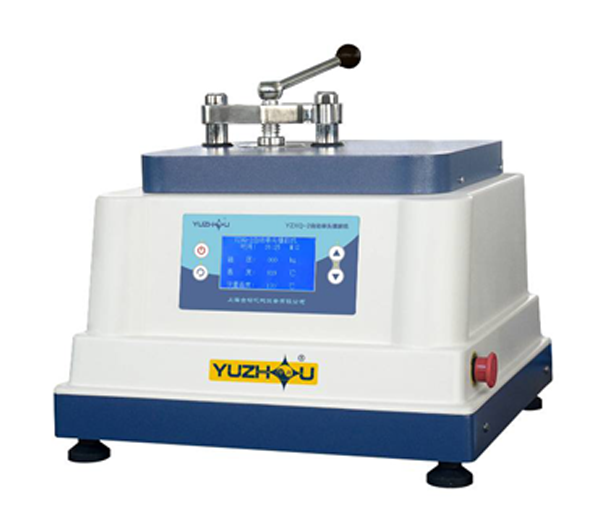

YUZHOU YZXQ-2 Automatic Metallographic Sample Inlay Machine

YZXQ-2

Automatic metallographic sample inlay machine

Introduction

Mounting is a very important step in the preparation process of metallographic specimens, especially for some tiny samples that are difficult to hold, irregularly shaped specimens that require edge protection, or specimens that require automatic grinding and polishing. The inlay is the required process. YZXQ-2 automatic inlay machine is a professional hydraulic water-cooled automatic sample inlay equipment. The inlay process is controlled by the program and realizes one-click operation of heating, pressurizing, pressure maintaining, cooling, pressure relief and other inlay processes. , no operator is required to be on duty, and the sample mounting is automatically completed. This machine is pressurized by a hydraulic pump, with greater pressure and tighter inlaid samples. It is equipped with a water cooling system and has a fast sample preparation speed. It adopts a unique rotary lock design, which is more convenient to operate and has stable performance. It is a perfect equipment for sample inlays. . (Limited to thermosetting materials, such as bakelite powder, electric jade powder, etc.)

Packing list：Host X1, swirl/spin handle X1, upper module X1, oil pump breathing cover X1, water inlet pipe X1, water outlet pipe (< unk > 10mm) X1, water inlet filtrate net X1, clamp X1, inlaid powder (500g) X1, glassgraduates with scale X1, product manual X1, certificate X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
