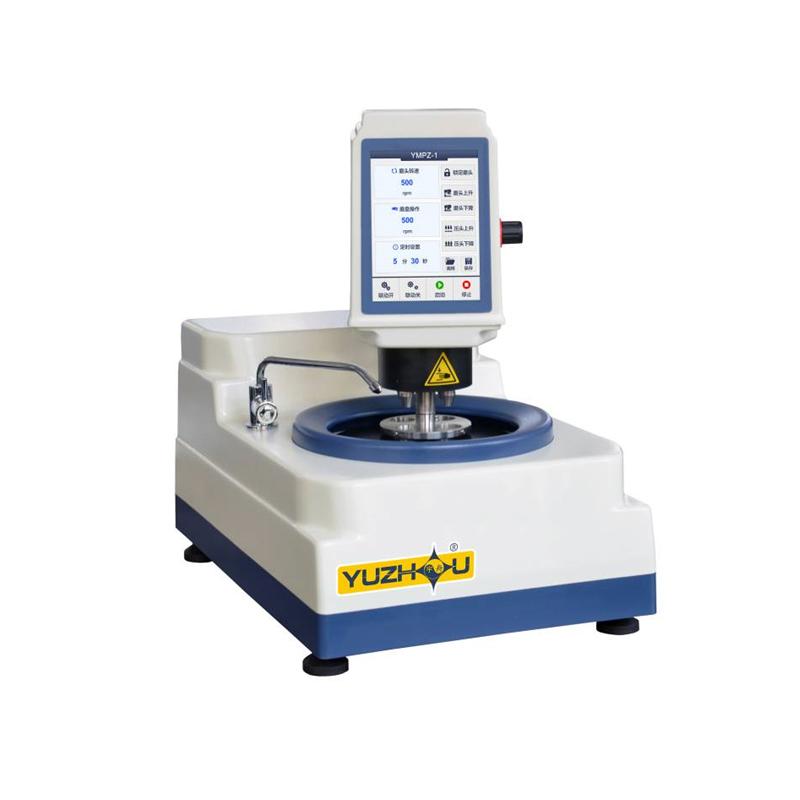

YUZHOU YMPZ-1 Metallographic polish-grinding machine

YMPZ-1

Metallographic polish-grinding machine

Automatic grinding and polishing machine mid-end selection, economical and practical, grinding 4 samples at a time

Introduction

The YMPZ-1 automatic metallographic sample grinding and polishing machine is a grinding and polishing equipment controlled by a single-chip microcomputer. The body is made of ABS material and has a novel and beautiful appearance, anti-corrosion and durability. The strong large support chassis design ensures precise rotation. Balance; the grinding disc has stepless speed adjustment or four-speed speed adjustment, and the direction of rotation can be switched; the motor is a DC brushless motor with long service life and low noise. The powerful motor torque brings powerful power and provides an effective grinding and polishing experience; The spindle's leak-proof design ensures almost no damage to the bearings; it is equipped with a cooling water pipe, which can adjust the direction of rotation for wet grinding; it is equipped with a washing function at the bottom of the grinding disc to prevent the accumulation and precipitation of grinding materials; the grinding disc part adopts a unique magnetic design to support quick replacement The surface of the disc, chassis and pad are treated with Teflon, and there is no sticking residue from sandpaper polishing; the grinding head adopts an electric locking device with a timing function, which is convenient and fast.

The automatic grinding system of this machine can effectively replace various manual grinding and polishing processes. The number of sample clamps is 4, which greatly saves labor and improves the quality of grinding and polishing and sample preparation efficiency. It is a satisfactory choice for automatic metallographic sample preparation equipment.

Packing list：Host X1, automatic grinding head X1, grinding and throwing disc (230mm) X1, magnetic disc (230mm) X1, gasket (230mm) X4, adhesive-backed sandpaper (230mm) X6, adhesive-backed polishing cloth (230mm) X2, water inlet pipe X1, water outlet pipe (0019 32mm) X1, water inlet filtrate net X1, trachea (0019 6mm) X1, air Filter X1, inner hexagonal wrench (2mm, 3mm, 5mm) X3, manual X1, certificate X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
