YuZhou YMPZ-2-250 Metallographic polish-grinding machine brochure

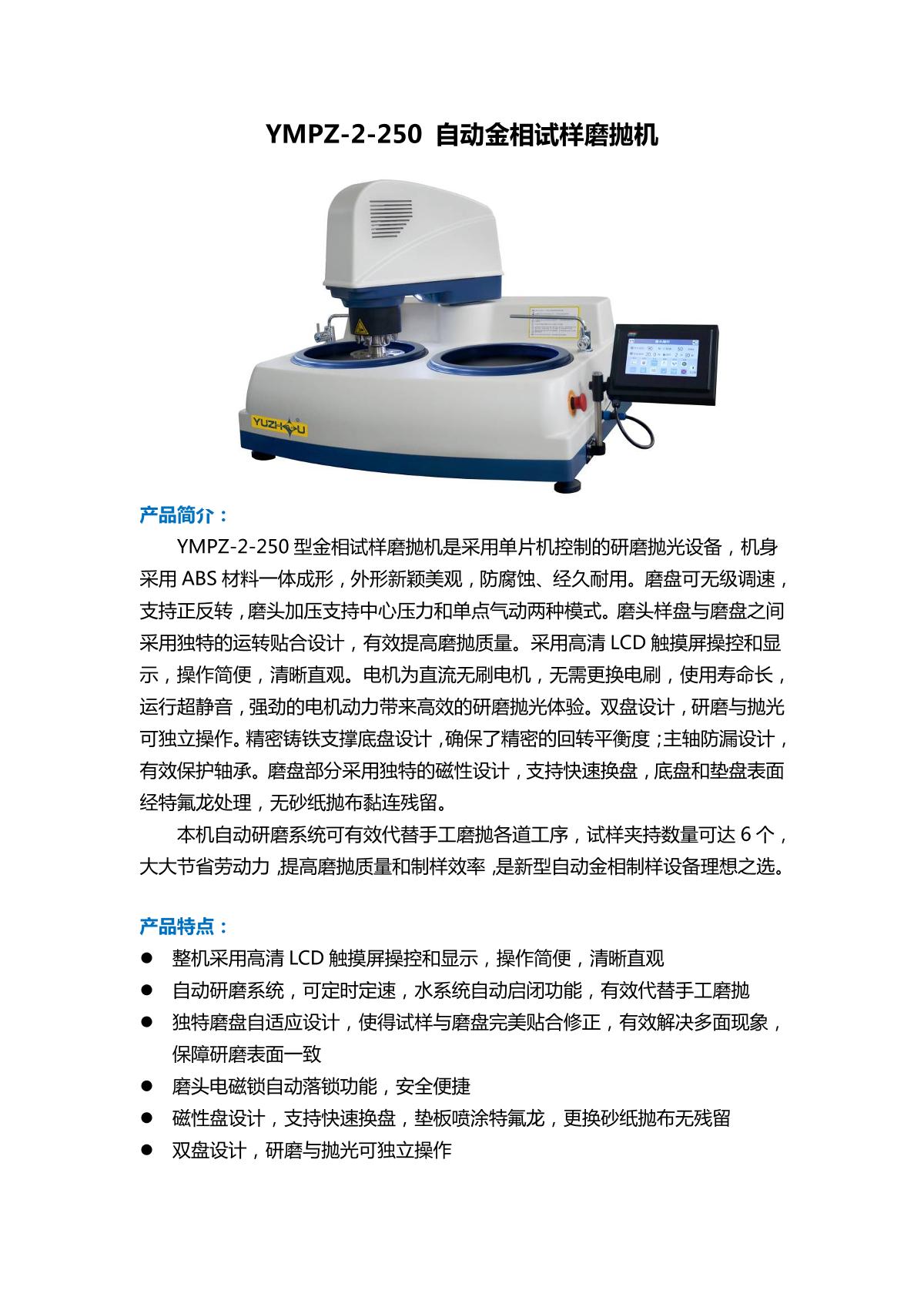

宇舟 YMPZ-2-250 自动金相试样磨抛机说明书第1页

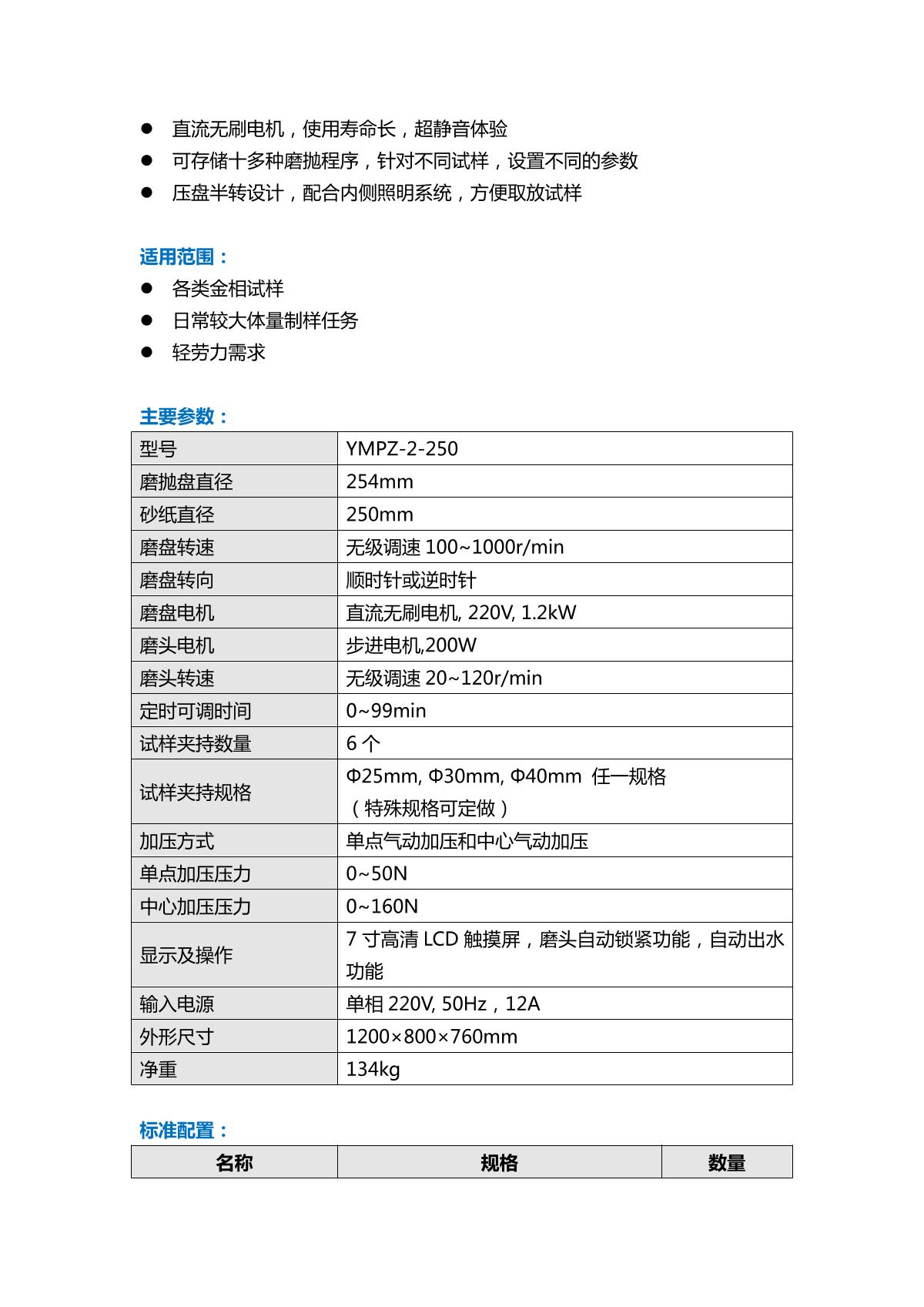

宇舟 YMPZ-2-250 自动金相试样磨抛机说明书第2页

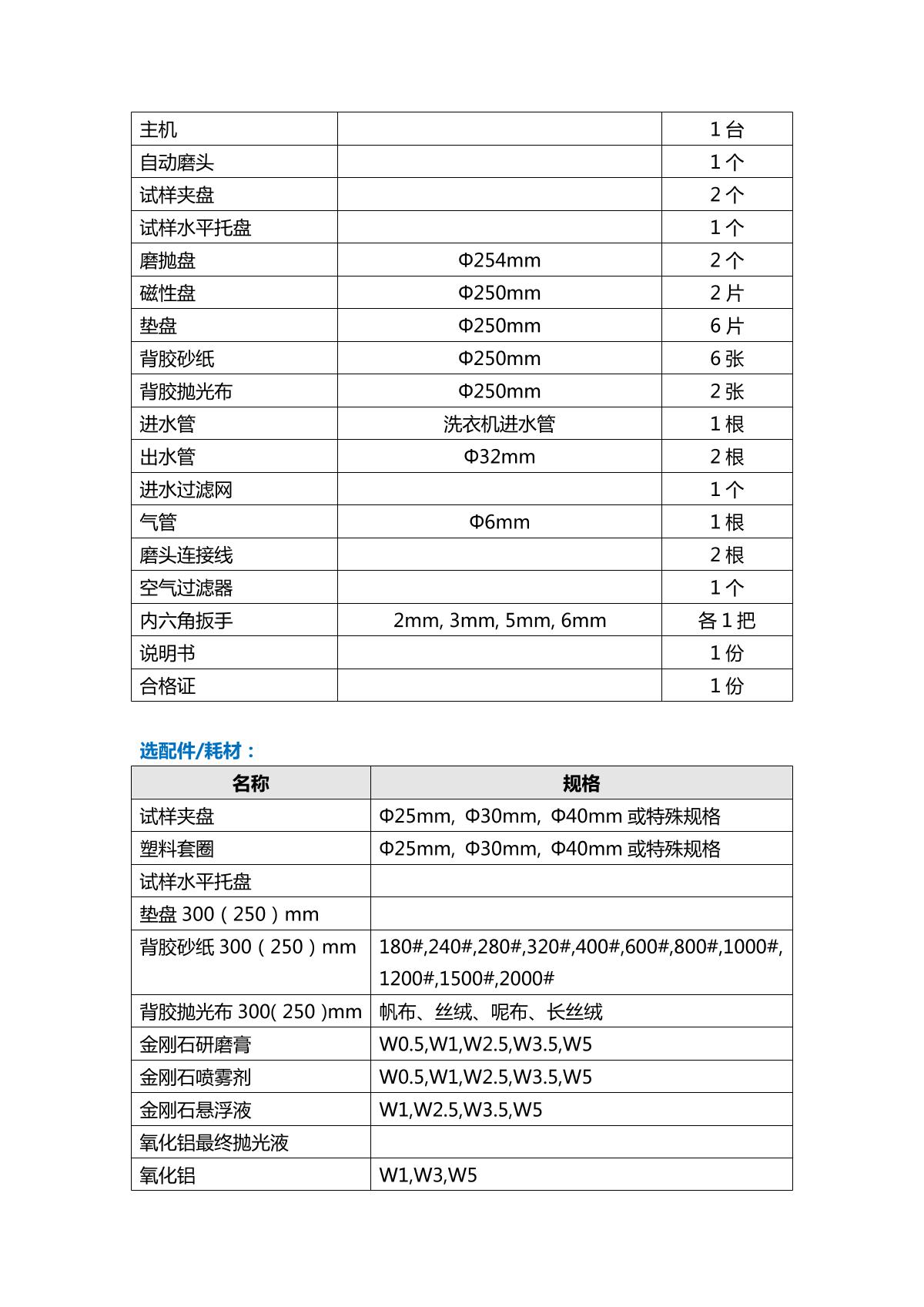

宇舟 YMPZ-2-250 自动金相试样磨抛机说明书第3页

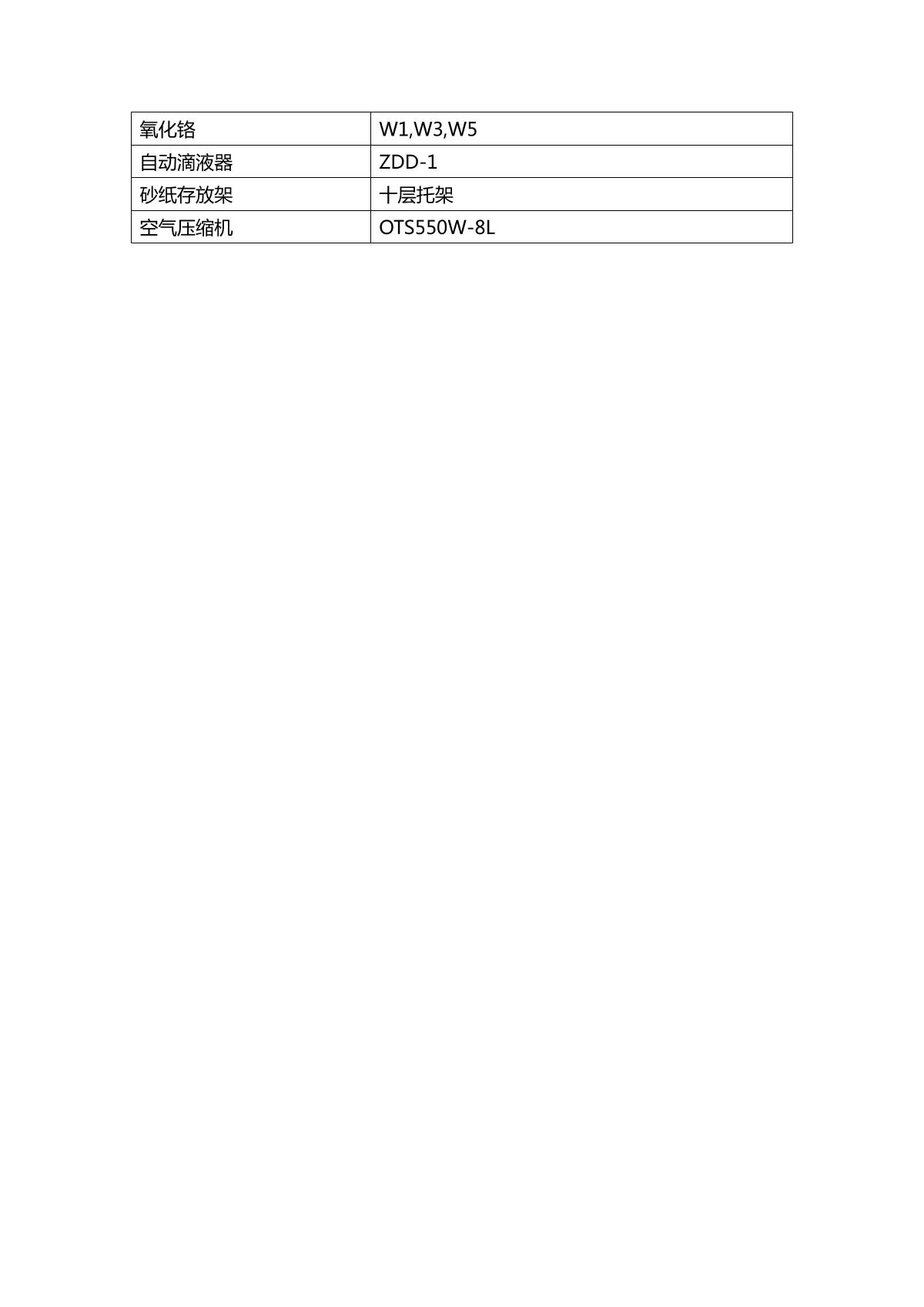

宇舟 YMPZ-2-250 自动金相试样磨抛机说明书第4页
