DONGRU DR210 Coating Thickness Gauge Coating thickness measurement

Measurement range 0~1000μm, error range +/- 3%, resolution 0.1μm | 1μm, pocket type Coating Thickness Gauge with integrated structure, intelligent digital display LCD screen, can display measurement data in real time, accurate and stable.
Model：
Certificate
Contact
Details SPEC VIDEO CAT

DongRu DR210 Coating Thickness GaugeSPEC

DongRu DR210 Coating Thickness GaugeDetails

DongRu DR210 Coating Thickness GaugePacking list

SKU
NB000206
Measurement principle
Eddy Current
Measurement range
0~1000μm
margin of error
±3%
Resolution
0.1μm|1μm
Minimum radius of curvature
Convex 5mm; Concave 25mm
thinnest substrate
0.4mm
probe
NF integrated probe
statistical function
Measurement Times, MAX Maximum, MIN Minimum, Average
icon function
without
Power Supply
2 * AA alkaline battery
Calibrated Certificate
without
system language
Chinese
Display screen
LCD screen
supporting software
without
Machine Weight
99g
Machine size
102*62*27mm
Operating temperature
0~50℃
Minimum measurement surface
10*10mm
Relative Humidity
20~90%RH
DR210
Coating Thickness Gauge
Measurement range 0~1000μm, error range +/- 3%, resolution 0.1μm | 1μm, pocket type Coating Thickness Gauge with integrated structure, intelligent digital display LCD screen, can display measurement data in real time, accurate and stable.

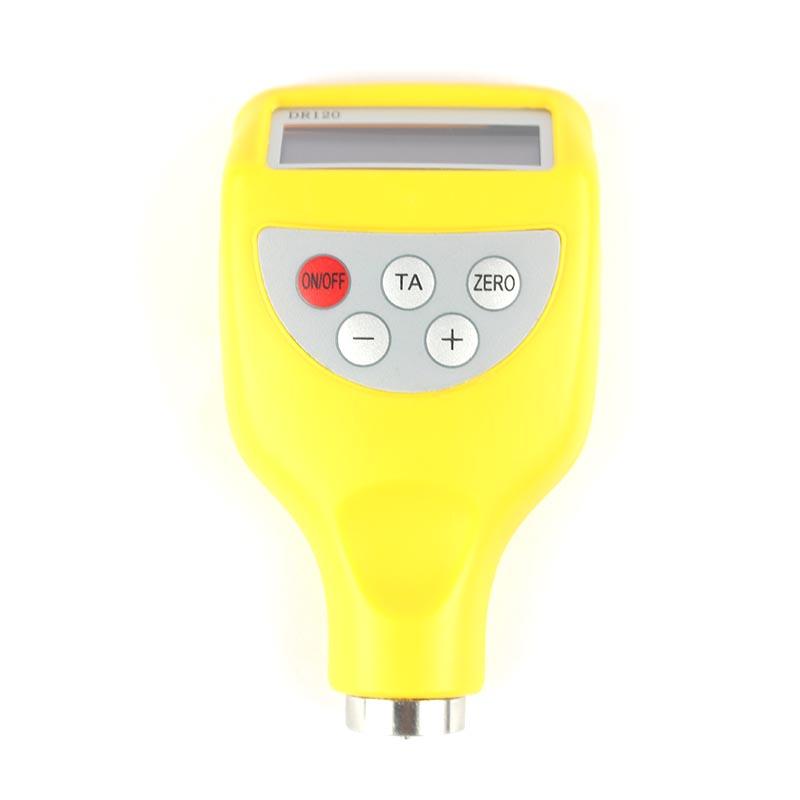

DONGRU DR210 Coating Thickness Gauge Coating thickness measurement Picture

Coating Thickness Gauge selector

Description

The DR210 Pocket Coating Thickness Gauge is a pocket coating Thickness Gauge with a one-piece structure with a yellow ABC hard plastic case for impact resistance.DR210 pocket coating Thickness Gauge adopts the principle of eddy current thickness measurement to achieve non-destructive and rapid measurement of the thickness of non-conductive coating on non-magnetic metal substrates.The DR210 Coating Thickness Gauge is easy to measure, with five buttons integrating the entire gage and an ergonomic design.

Features

The operation is simple and the test speed is fast

There are two types of testing: continuous testing (CONT INUE) and single measurement methods

Four statistical functions: maximum (MAX), minimum (MIN), average (MEA), number of measurements

There are two types of calibration: zero calibration and two-point calibration

Compact and portable appearance: small and integrated design, easy to carry

Large storage capacity: 116 measurement data can be stored

User-friendly function: it can be connected to the computer for communication, reading out and storing data for saving or printing

Intelligent substrate identification: Automatically identify iron-based and non-iron-based substrates

DR210 Coating Thickness GaugeBeep indication during operation (single measurement method)

Low Voltage indication

Manual/automatic shutdown function

Principle

DR210Pocket coating Thickness Gaugeis the use of eddy current measurement methods,The thickness of non-conductive cladding (e.g., paint, powder, plastic, rubber, enamel, enamel, anti-corrosion layer, etc.) on non-magnetic metal substrates (e.g., aluminum, copper, stainless steel) can be measured non-destructively.

Application

DR210 Pocket Coating Thickness GaugeIt can be widely used in manufacturing, metal processing, chemical industry, commodity inspection and other testing fields.


FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
