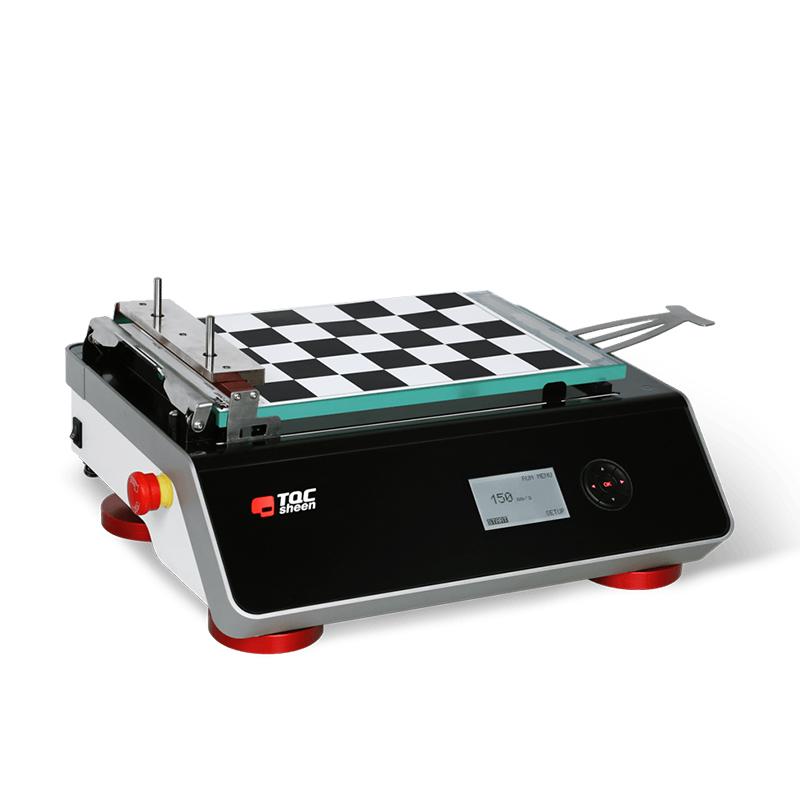

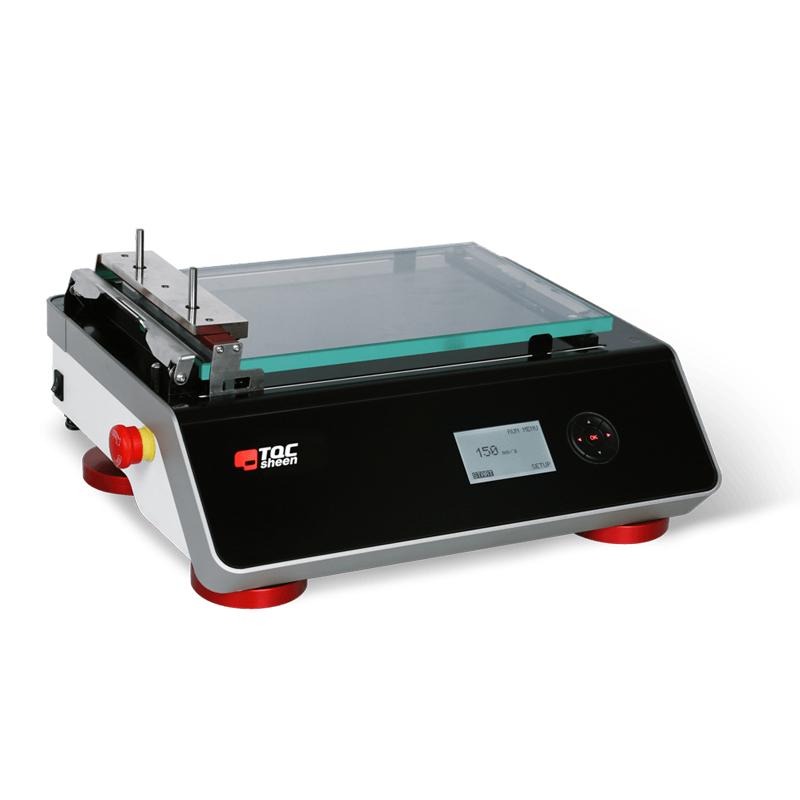

TQC AB3650 Automatic Film Applicator with Glass Plate

The TQC Automatic Film Applicator AB3650 is equipped with Glass plate, suitable for 210 x 297 mm size cardboard film, AB3650 Automatic Film Applicator Spreader speed is 1~ 150mm/s, can be used with Applicator rod or Coating Applicator, is a laboratory ink machine.

Model：

AB3650

Certificate

TQC sheen

Contact

Details SPEC VIDEO OI

TQC sheen AB3650 Automatic Film ApplicatorSPEC

TQC sheen AB3650 Automatic Film ApplicatorDetails

TQC sheen AB3650 Automatic Film ApplicatorPacking list

SKU: NB020773

Coating method: Wire rod/drawdown blade

Coating size: 300*200*8mm

Spreader trip: 250mm

Coating speed: 1~150mm/s

Applicator Specification: Bar diameter 6~ 12.7mm, length greater than 220mm

Control mode: key control

Display: digital explicit

Total power consumption: 40W

Applicable standards: ASTM D823

Host Power Supply: 110~240VAC/50~60Hz

Dimensions: 335*400*190mm

Machine Weight: 12.5 kg

speed Accuracy: <1％

Precision of stroke length: <1mm（0.025mm/步）

Testing substrate maximum size: DIN A4

Testing substrate thickness: 8Mm (including coating)

Maximum height of film applicator: 40mm

Drip pan Capacity: 30 ml

Display: 128 * 64 pixel graphic LCD, 70 mm * 40 mm, white lighting

language: English

AB3650

Automatic Film Applicator

Introduction

The AFA series is an entry-level wet Film Applicator available in 4 sizesCoating filmPaper jam. The coating speed can be set from 1 to 150 mm/s. The Film Applicator is suitable for wire wound rods, Film Applicators and blocksCoating filmUtensil. Easy operation via the standard TQC user interface. The AFA Compact is available with either a glass bed or a porous vacuum Table.

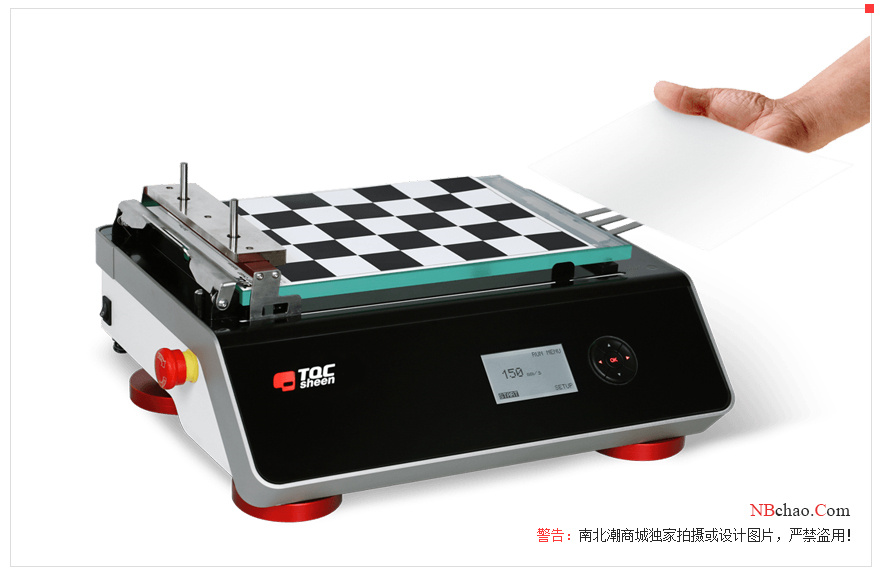

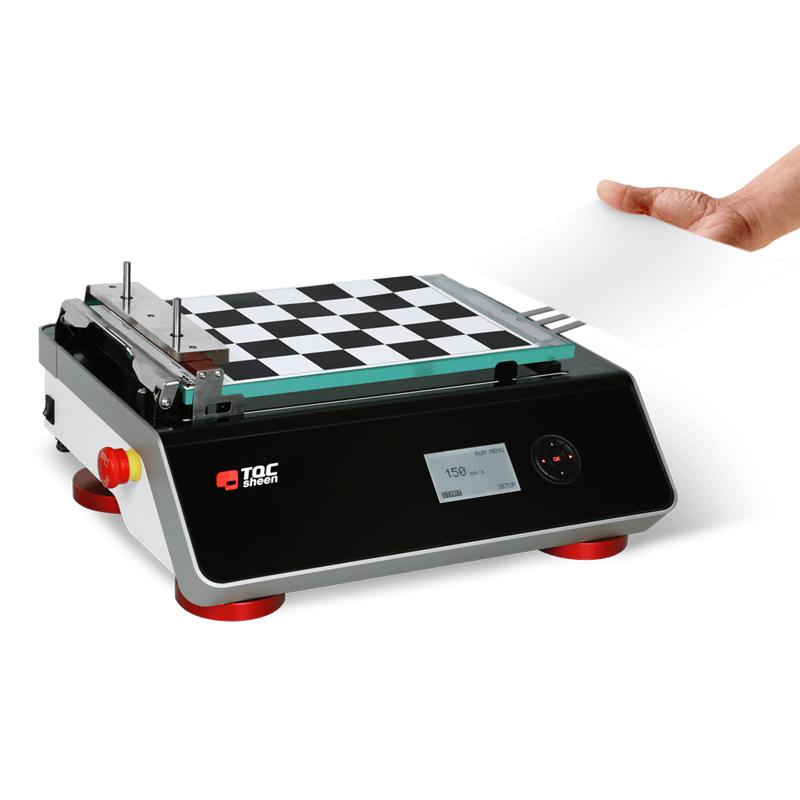

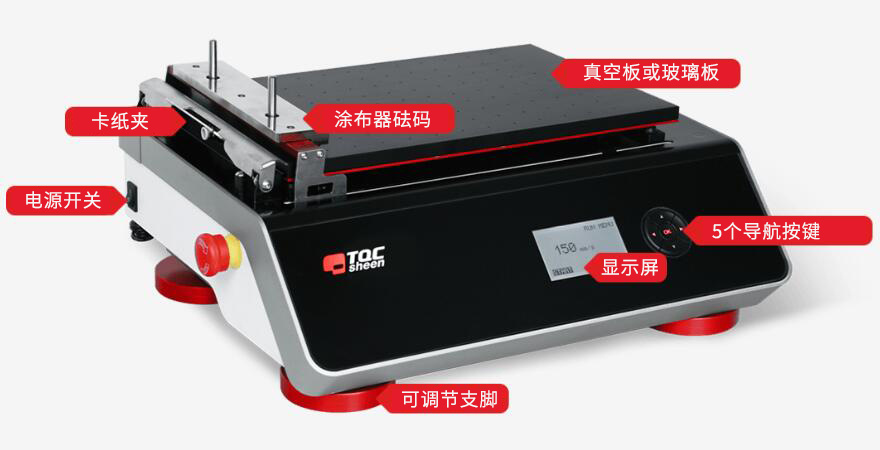

AB3650The test jam is placed in place through a glass bed made of ultra-flat hardened float glass. The test coated cardboard or other coating substrate is fixed to the glass bed by means of a manual stainless steel gravity clamp. For easy cleaning, the glass bed can be easily removed without using any tools.

AB3650 can be used with claking force cardboard, opaque cardboard, coating rate card, brushed card, paper or cardboard coating test charts, penetrating jams, plastic or wood sample panels, sheets or other very flexible surfaces. The dimensions are Din A4 or 210 x 297 mm.
