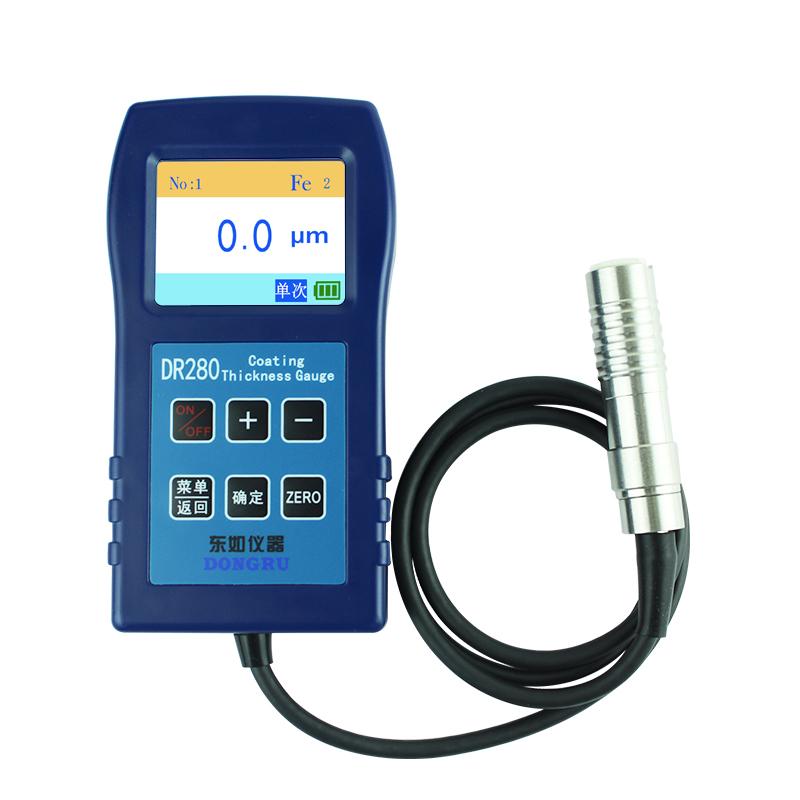

DONGRU DR280 dual-use Coating Thickness Gauge

DR280

Coating Thickness Gauge

Magnetic Induction and eddy Current dual-use Thickness Gauge, can measure the thickness of different metal substrates, thickness range 0~1250μm, error +/- 1~ 3%, no supporting software, support zero, two, multi-point calibrating.

Introduction

Dongru DR28 paint film coating Thickness Gauge is a dual-function paint film coating Thickness Gauge that connects the host and the probe through a connecting line. It can not only measure the thickness of the non-magnetic coating on the metal substrate, but also measure the non-magnetic The thickness of the non-conductive coating on the metal substrate is displayed on the display screen to display the measured thickness measurement data, so that the measurement data can be clearly and intuitively understood. DR280 paint film coating Thickness Gauge is a precision instrument, and the internal parts are high-quality products, which makes the measurement more reliable and stable.

Dongru DR280 paint film coating Thickness Gauge is a split-type dual-purpose paint film coating Thickness Gauge, which is suitable for the measurement of the paint layer on the surface of all metal substrates. It can quickly measure the surface thickness of the metal paint layer without damage, and the measurement is accurate.

Measurement methods

DR280 Paint Film Coating Thickness Gauge is a dual-purpose Thickness Gauge, a professional non-destructive testing instrument for measuring the thickness of coated and coated objects on the surface of metal materials. It uses the following different measurement methods depending on the metal substrate.

Eddy Current Thickness Measurement Method

It can non-destructively measure the thickness of non-conductive coatings (such as: paint, powder, plastic, rubber, enamel, enamel, electrophoresis, anti-corrosion layer, plastic spraying layer, etc.) on non-magnetic metal substrates (such as: aluminum, copper, stainless steel)

Magnetic Thickness Measurement Method

It can nondestructively measure the thickness of non-magnetic coatings (such as: galvanized, chromium, indium, enamel, rubber, powder, paint, electrophoresis, enamel, anti-corrosion layer, paint, etc.) on magnetic metal substrates (such as: steel, iron) .

Applications: Widely used in coating industry, manufacturing industry, metal processing industry, chemical industry, commodity inspection and other testing fields.

Advantages

• Simple operation, fast test speed, good sensitivity and high measurement accuracy

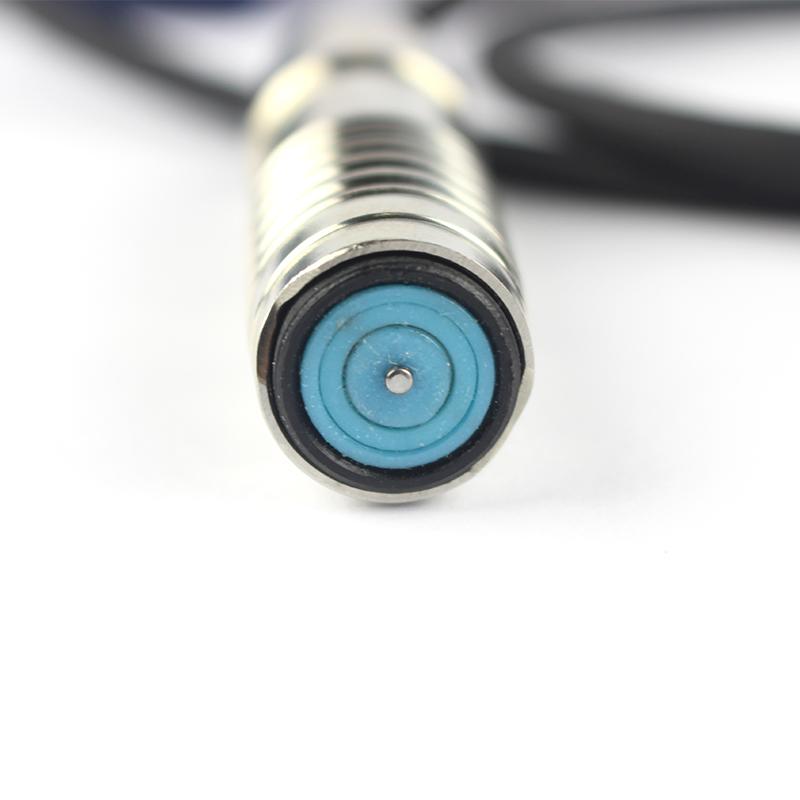

• Alloy probe, durable, wear-resistant and pressure-resistant, accurate

• There are two measurement methods: continuous measurement and single measurement

• There are four statistical functions: maximum value (MAX), minimum value (MIN), average value (MEA), measurement times (No)

• Large-capacity storage, can be stored in 10 groups, 200 in each group, and can store 2000 data in total

• Stored data store view delete function

• Three calibration methods: zero point calibration, two-point calibration, multi-point calibration

• Upper and lower limit alarm function (can be set in single measurement mode)

• The operation process is marked by a beep (in single measurement mode)

• Automatic identification of ferrous and non-ferrous substrates

• Metric and imperial conversion μm/Mil

• Sunlight mode (used under strong light)

• Chinese and English bilingual version

• 2.3-inch large color screen large font size display

• Manual/automatic shutdown function

• Bluetooth synchronous data transmission function (customized)

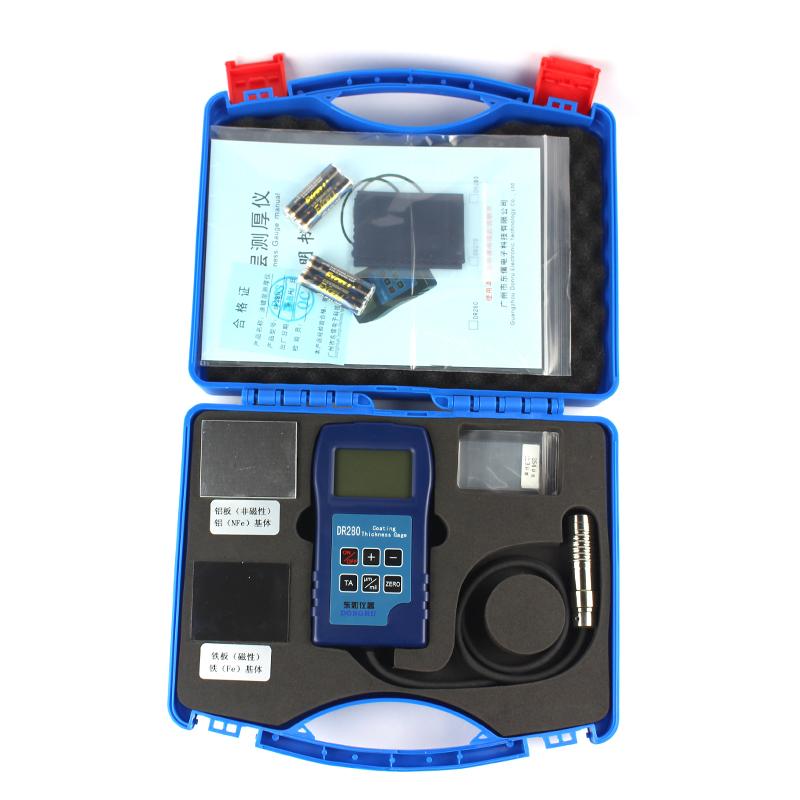

Packing list：Encasement box x1, host with probe x1, calibration shim x4, iron matrix x1, aluminum matrix x1, certificate of conformity, manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
