Germany

IKA A10 basic Grinder

Germany IKA A10 Grinder is a basic Grinder, also known as ground testing machine, suitable for dry grinding of brittle hard and flexible materials, A10 provides 3 kinds of grinding heads interchangeable, motor input Power 180 W.
Model：
Contact
Details SPEC CAT

IKA A10 basic GrinderSPEC

IKA A10 basic GrinderDetails

IKA A10 basic GrinderPacking list

SKU
NB021473
Motor Power
240W
Speed regulation range
25000 rpm
Dimension
130*250*145 mm
Power supply Voltage
220 - 240 V
Weight
3.13 kg
Process type
batch processing
Working principle
Shear/Impact
Motor Input Power
300 W
Rotation speed deviation
500±rpm
Maximum circumferential velocity
73m/s
Maximum usage Volume
50ml
Maximum Feed Hardness
5Mohs
Maximum feed particle
6mm
Impact/shear cutter head material
Stainless steel 1.4034
Grinding chamber material
Stainless steel 1.4301
Working time
5 min
Working time
10 min
Grinding room, chilled down with water
Yes
Grinding materials can be chilled down with dry ice in the grinding chamber
Yes
Environmental temperature
5 - 40 ℃
Allowable Relative Humidity
80 %
Type of protection
IP 41
Frequency
50/60 Hz
A10 basic
Grinder

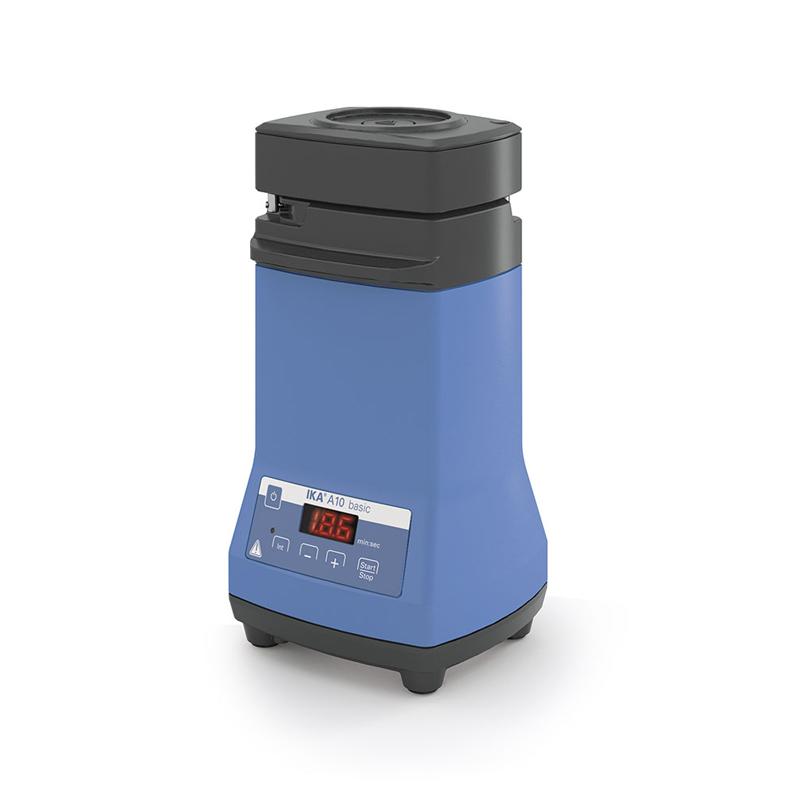

IKA A10 basic Grinder Picture

Introduction

The newly designed batch Grinder can be used to grind hard, brittle, soft and fibrous samples with a grinding capacity of up to 50 ml. The sample can be embrittled directly in the grinding chamber; Generally difficult-to-grind, oily and water-based samples can be grinded. In the development of the grinding machine, safety design is a top priority. The Grinder can only be started when the grinding lid is properly closed; And the lid can only be opened if the Grinder is completely stationary. The quick stop function effectively protects the safety of the user. The grinding chamber design, cutter head and rotation speed of the new A10 basic model are the same as those of the old A10, so the grinding effect can be maintained.

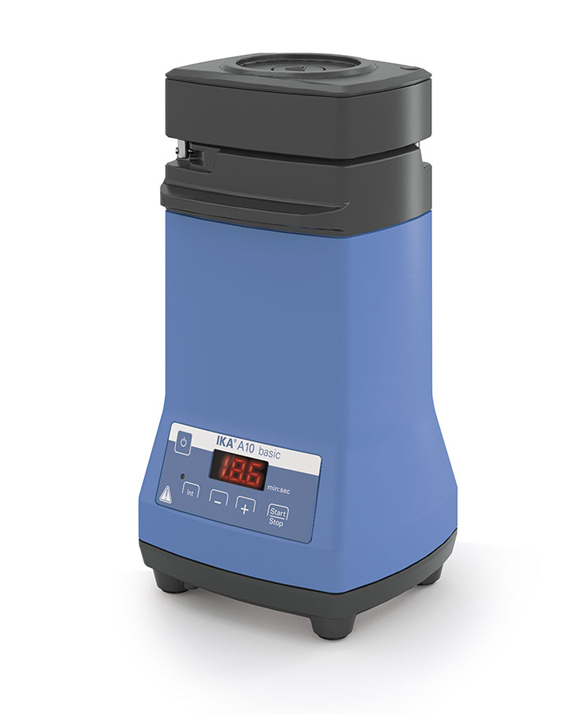

IKA A10 basic Grinder basic type

Special features

Digital display timer

Displays the grinding time

Intermittent rotation

The brushless electric motor is adopted, which has a longer life and lower noise

Built-in cooling coil

Error codes are displayed

Easy-to-operate membrane buttons

Impact heads/shear blades are easy to change and suitable for different applications

A10.1 impact bits and shrinkage bits can reduce the amount of grinding of the sample

The newly designed snap lock makes it easy to open and close the ground top cover
