Germany

German IKA A11 basic Analytical mill Grinder

The German IKA A11 Grinder is a batch type Grinder with two grinding methods: Impact grinding and shearing cutter head. The A11 basic Analytical mill Grinder can be selected with an A 11.4 250 ml grinding cup.
Contact
Details SPEC CAT

IKA A11 basic Analytical mill GrinderSPEC

IKA A11 basic Analytical mill GrinderDetails

IKA A11 basic Analytical mill GrinderPacking list

SKU
NB021474
Motor Power
100W
Speed regulation range
28000 rpm
Dimension
85*240*85 mm
Power supply Voltage
220 - 230 / 100 - 115 V
Weight
1.5kg
Process type
batch processing
Working principle
Shear/Impact
Motor Input Power
160W
Maximum circumferential velocity
53m/s
Maximum usage Volume
80ml
Maximum Feed Hardness
6Mohs
Maximum feed particle
10mm
Impact/shear cutter head material
Stainless steel 1.4034
Grinding chamber material
Stainless steel 1.4301
Working time
1 min
Working time
10 min
Grinding room, chilled down with water
Yes
Grinding materials can be chilled down with dry ice in the grinding chamber
Yes
Environmental temperature
5 - 40 ℃
Allowable Relative Humidity
80 %
Type of protection
IP 43
Frequency
50/60 Hz
A11 basic Analytical mill
Grinder

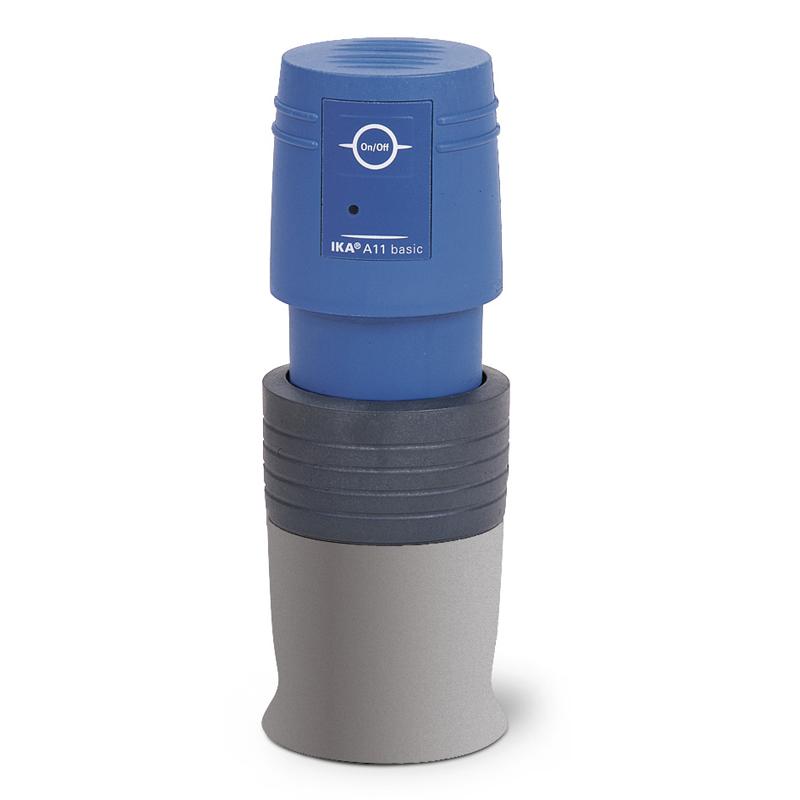

German IKA A11 basic Analytical mill Grinder Picture

Introduction

Batch Grinder, there are 2 grinding methods:

Impact grinding: suitable for hard, brittle or inelastic substances. The grinding head is made of stainless steel with a hardness of 6 Mhos and has been installed in the grinding machine;

Shear bits :(sold separately) to shear and grind flexible fibrous substances

Features

  • Water-based or gelatinous substances can be ground by adding water.

  • A 11.4 250 ml grinding cup is optional.

  • A 11.5 80 ml grinding cup is supplied with a grinding cup made of Tefel (PTFE, glass-cured) and stainless steel (1.4571) for grinding where liquid nitrogen is required
