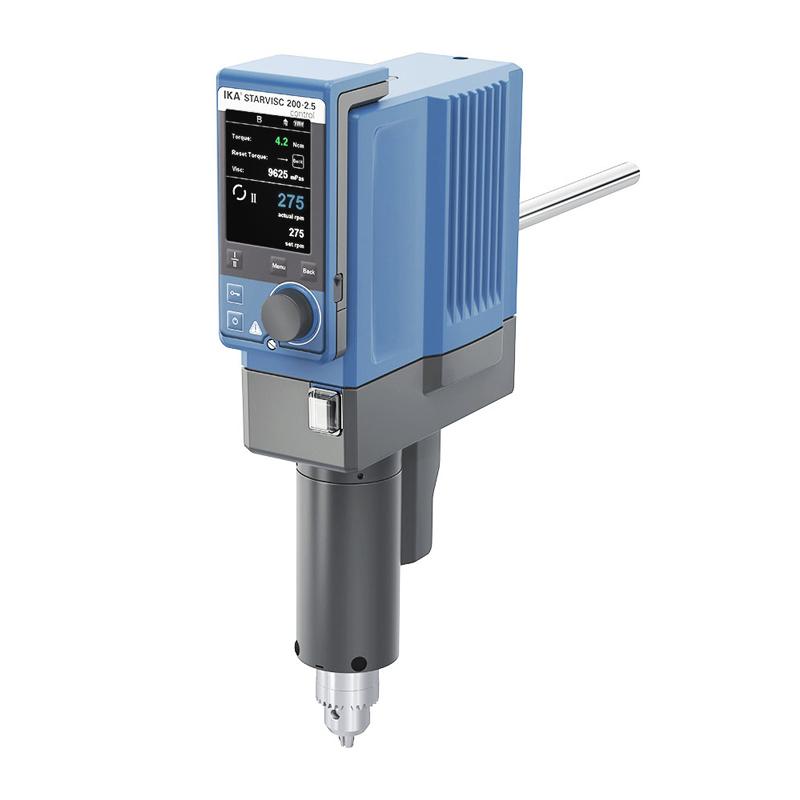

IKA STARVISC 200-2.5 control torque measuring instrument
STARVISC 200-2.5 control
IKA STARVISC 200-2.5 control Torque measuring instrumentSPEC
IKA STARVISC 200-2.5 control Torque measuring instrumentDetails
IKA STARVISC 200-2.5 control Torque measuring instrumentPacking list
- SKU
- NB021480
- Rated Voltage
- 230/100~115/100V
- Rated Frequency
- 50/60Hz
- Input Power
- 130W
- output power
- 84W
- drive type
- Brushless DC motor
- Max Torque
- 200N.cm
- Control mode
- stepless
- Timer
- 1~6000min
- Rotation speed display
- TFT
- Impeller fixing method
- Collet
- Max Torque
- 200N.cm/40N.cm
- Rotary collet clamping range
- Φ0.5~10mm
- Processing Capacity
- 100L
- maximum viscosity
- 100000mPa·s
- Interface
- USB
- Environmental temperature
- 5~40℃
- Allowable Relative Humidity
- ≤80%
- Dimensions of the whole machine
- 91*395*231mm
- Machine Weight
- 5.9kg
- intermittent operation
- Yes
- Maximum output power of mixing shaft
- 84 W
- Permissible continuous running time
- 100%
- Rotation speed control Accuracy
- 1 ±rpm
- Speed measurement deviation
- N > 300rpm speed measurement deviation: 1 +/- % n < 300rpm speed measurement deviation: 3 +/- rpm
- External temperature sensing interface
- PT1000
- Temperature display function
- Yes
- Plug connection
- Φ10 mm
- Hollow shaft
- 10.3 mm
- bracket fixing
- Extension arm chuck fixed
- Extension arm diameter
- 16 mm
- Extend arm length
- 220 mm
- Torque display
- Yes
- Max Torque
- 2Nm
- Torque measurement
- trend
- Torque measurement deviation
- 2.5 ±Ncm
- Speed measurement deviation
- 2.5 ±Ncm
- Timer
- Yes
- Timer
- TFT
- Measurement Accuracy
- 0.1K
- Temperature measurement Accuracy
- PT1000 Temperature deviation +/- 0.5 (DIN IEC 751 Class A) K
- Limit deviation of temperature sensor
- ≤ ± (0.15 + 0.002xITI) K
- Shell material
- Cast aluminum coating/thermal plasticity polymer
- Maximum remote control distance (depending on the building)
- 150 m
- Protection level
- IP40
Introduction
During product development, the viscosity can be measured and displayed at the same time as stirring: IKA STARVISC 200-2.5This is made possible by the new controlled agitation torque measuring instrument. Viscosity display in real time. STARVISC has a wide range of Applications. Especially in the development of products, STARVISC can help you determine whether the material you are mixing is or not Achieve the desired effect.
Features
High-precision measurements
The STARVISC measures accurately, even during operation, and the sample does not need to be taken out for measurement.
Viscosity value calculation
Viscosity values can be quickly converted via the instrument menu.
Controller remote control
The TFT display can be controlled remotely from a safe distance.
Stir vigorously
STARVISC can effectively mix highly viscous materials with a throughput of up to 100 l (water)
