IKA MICROSTAR 30 controlled Stirrer 20L

The IKA cantilever Stirrer MICROSTAR 30 control is an IKA powerful overhead Stirrer with a stirring Rotation speed of 30~500rpm, a stirring viscosity of 20000mPas and a Rotation speed of 30Ncm.
Contact
Details SPEC

IKA MICROSTAR 30 control Cantilever StirrerSPEC

IKA MICROSTAR 30 control Cantilever StirrerDetails

IKA MICROSTAR 30 control Cantilever StirrerPacking list

SKU
NB021561
Rated Voltage
100~240V
Rated Frequency
50/60Hz
Input Power
32W
output power
22W
drive type
Brushless DC motor
Max Torque
0.3Nm
Speed range
30~500rpm
Speed regulation mode
Control knob
Timer
without
Rotation speed display
LED
Impeller fixing method
Collet
Max Torque
30N.cm
Rotary collet clamping range
Φ0.5~8mm
Processing Capacity
20L
maximum viscosity
20000mPa·s
Lifting stroke
160mm
Environmental temperature
5~40℃
Allowable Relative Humidity
≤80%
Dimensions of the whole machine
60*173*126mm
Machine Weight
1.26kg
Shell material
Cast aluminum coating/thermal plasticity polymer
MICROSTAR 30 control
Cantilever Stirrer

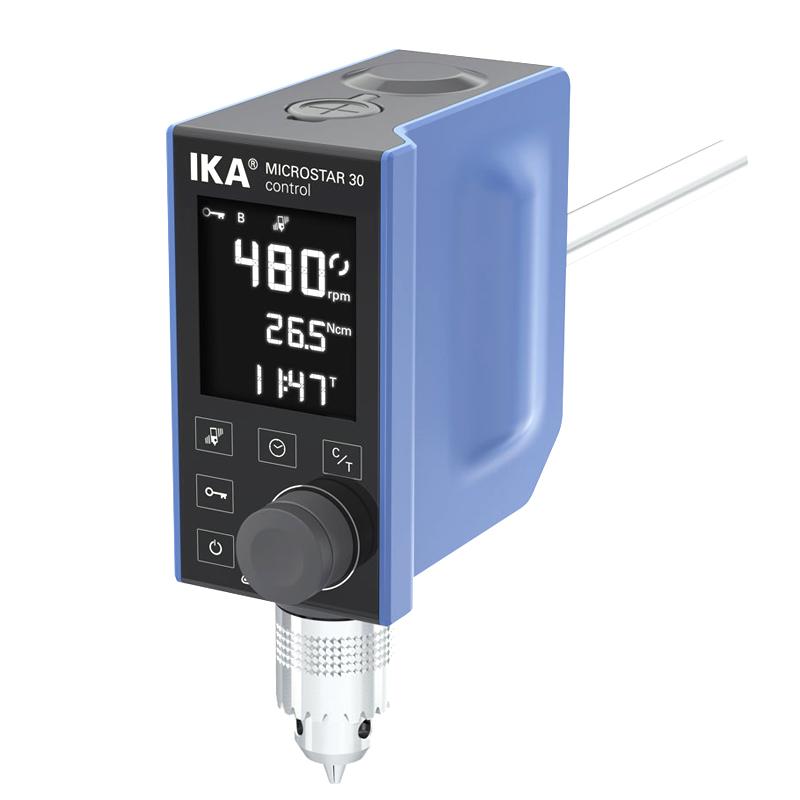

IKA MICROSTAR 30 controlled Stirrer 20L Picture

Introduction

IKA's new MICROSTARS series: developed as a high-tech overhead agitator at the highest level of technology, the most compact for special applications.
Combining high performance with good detail in the smallest of spaces with a long-term warranty. Witness for yourself:

The "lightweight" in the smallest high-tech category, with little power but exceptional speed!

Features

  • Very good super high quality clear glass display

  • Vibration detection function with automatic shutdown in case of vibration of the overhead agitator

  • USB interface, e.g. for recording all parameters or firmware updates

  • Bluetooth function, which enables the combination of functions in the app

  • Simple connection with labworldsoft®

  • The measured temperature is displayed on a display

  • Viscosities up to 4,000 mPas and volumes up to 5 l are possible

  • Chemically resistant housing

  • Infinitely adjustable speed, 0/30 - 2,000 min-1

  • Microprocessor control system for constant speed as well as viscosity changes

  • Keylock (keylock button)

  • timer

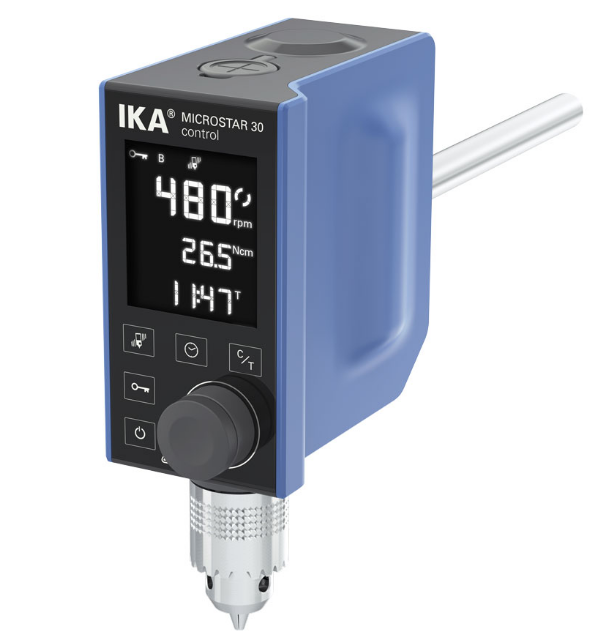

Illustration of the IKA cantilever agitator MICROSTAR 30 control

Comparison of models of the IKA MICROSTAR Control series

ModelMICROSTAR 7.5 controlMICROSTAR 10 controlMICROSTAR 30 control
Maximum stirring capacity (H2O)5 l10 l20 l
Motor input power32 W
Motor output power22 W
Motor principleBrushless DC motor
Rotational speed displayLCD
Minimum speed30 rpm
Minimum speed0/30 rpm
Maximum rotational speed2000 rpm1000 rpm500 rpm
Maximum viscosity4000 mPas8000 mPas20000 mPas
Maximum output power of the stirring shaft15.7 W
Continuous operation time is allowed100%
Maximum torque of the stirring shaft7.5 Ncm15 Ncm30 Ncm
Maximum shaft torque (overload) at 60 rpm7.5 Ncm15 Ncm30 Ncm
At 100 rpm, the maximum torque of the mixing shaft7.5 Ncm15 Ncm30 Ncm
At 1000 rpm, the maximum torque of the stirring shaft7.5 Ncm15 Ncm30 Ncm
Maximum torque I7.5 Ncm15 Ncm30 Ncm
Speed range I (50 Hz)30 -2000 rpm30 - 1000 rpm30 - 500 rpm
Speed Range I (60 Hz)30 -2000 rpm30 - 1000 rpm30 - 500 rpm
Rotational speed controlControl knobs
Rotational speed setting accuracy1 ±rpm
n > Deviation of speed measurement at 300 rpm1 ±%
N < speed measurement deviation at 300 rpm3 ±rpm
The impeller is fixedRotary chuck
External temperature sensor interfacePT1000
Temperature displaybe
The minimum diameter of the rotor chuck clamping range0.5 - 8 mm
Hollow shaft, inner diameter8.5 mm
Hollow shaft (stop-state can be inserted)be
Bracket fixationExtension arm chuck fixation
Extension arm diameter13 mm
Extend the arm length160 mm
Torque displaybe
Speed controlelectronic
Rated torque0.075 Nm0.15 Nm0.3 Nm
Torque measurementtrend
Torque measurement deviation I3 ±Ncm
timerbe
Timer displayLCD
Time setting range0 - 6000 min
Temperature range-10 - 350 °C
Temperature measurement accuracy0.1 K
Temperature measurement accuracyPT1000 temperature deviation ± 0.5 (DIN IEC 751 Class A) K
Temperature sensor limit deviation≤ ± (0.15 + 0.002xITI) K
Housing materialCast aluminium coating / thermoplastic polymer
Maximum remote distance (depending on building)150 m
Dimensions60 x 173 x 136 mm
weight1.657 kg1.26 kg1.663 kg
Allowable ambient temperature5 - 40 °C
Relative Humidity is allowed80%
DIN EN 60529 protection methodIP 54
USB interfacebe
Voltage100 - 240 V
frequency50/60 Hz
Instrument input power32 W
DC Voltage24 V=
Current consumption1300 mA
