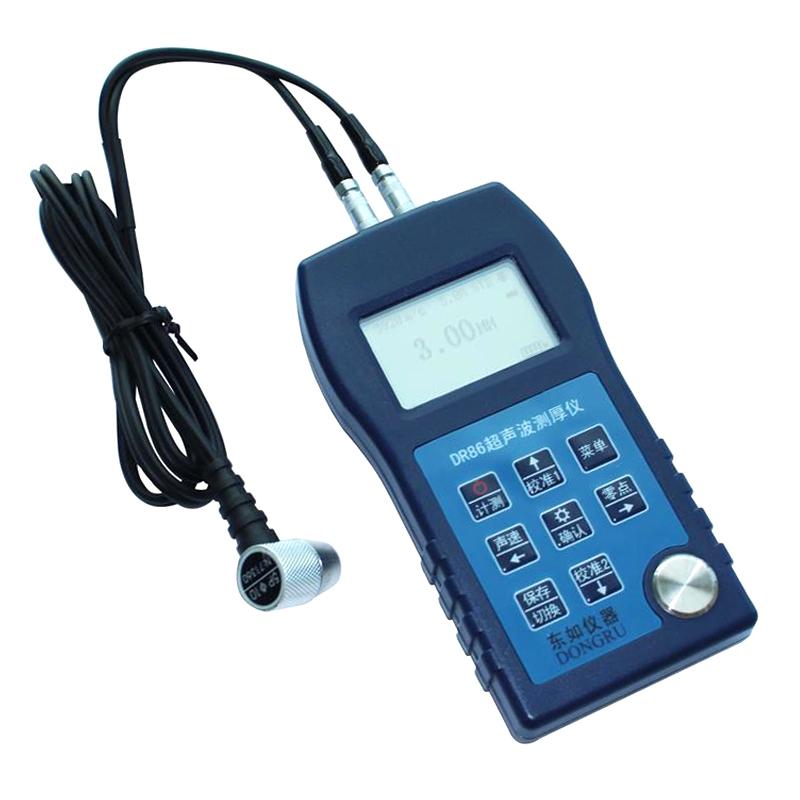

DONGRU DR86 Ultrasonic Thickness Gauge Measurement accuracy High Measurement range, suitable for pipe thickness measurement

DR86

Ultrasonic Thickness Gauge

Measurement range 0.7~ 400mm, Probe Frequency 5MHz, Probe contact temperature -10~50 ℃, measurement error +/- (0.5% H + 0.05) mm, built-in Speed of sound of a variety of materials can be used for measurement of material thickness, with 6 Measurement modes to meet multi-purpose thickness measurement applications.

Introduction

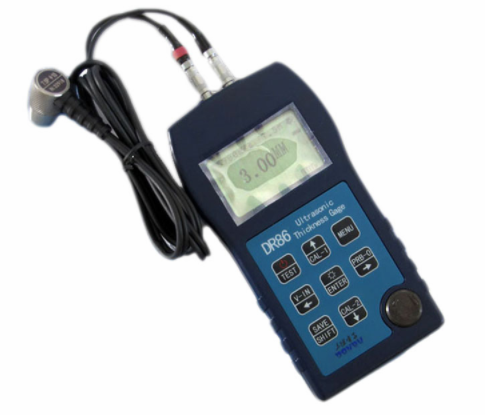

Dongru DR86 ultrasonic Thickness Gauge is a professional Thickness Gauge used to measure the thickness of pipes, containers and other ultrasonic conductors, etc., with automatic calibration function, built-in sound velocity of a variety of materials can be used to measure the thickness of materials, with 6 measurement modes.The measurement range of DR86 ultrasonic Thickness Gauge is 0.65~500mm, which can be used to measure the thickness of a variety of materials, and has a backlight function, which can facilitate the normal thickness measurement work in a low-light environment.

Features and advantages

1. DR86 ultrasonic Thickness GaugeIt is suitable for thickness measurement of almost all materials, such as: metal, glass, plastic, rubber and other materials;

2. High measurement accuracy, large measurement range, suitable for pipe thickness measurement;

3. Boot self-test function, which helps to improve the measurement accuracy;

4. Automatic calibration of probe zero point, sound velocity calibration function;

5. The automatic shutdown time can be set according to the user's habits;

6. DR86 ultrasonic Thickness GaugeBuilt-in sound velocity of 9 materials, and editable, convenient for users to use;

7. A variety of practical measurement modes: standard measurement mode, scanning mode, difference measurement mode, average measurement mode, extreme alarm mode, high temperature measurement mode (with high temperature probe and high temperature couplant);

8. Humanized data saving mode: data can be saved in groups, and the amount of data saved in each group can be selected, without manual saving of measurement data, simplifying operation;

9. Large-capacity data storage: the data storage capacity can reach 2000 groups;

10. The user-friendly design of the 8 keyboard buttons is simple, convenient and fast: zero point calibration, single point and two-point calibration of sound velocity, and arrow keys can freely adjust the value;

11. Metric/Imperial optional: the display unit can be selected between millimeters and inches.

12. The full range of thickness measuring probes can be used with Thickness Gauges to meet multi-purpose thickness measurement applications, and a variety of probes are available for special thickness measurement applications, including coarse-grained materials such as gray cast iron and high-temperature environment measurement (temperature up to 300°C) applications.

Thickness measurement principle

DongruDR86 Ultrasonic Thickness GaugeThickness measurement principle: The ultrasonic measurement principle is adopted, which is suitable for the measurement of the thickness of various materials that can use ultrasonic waves to propagate inside at a constant speed and can be reflected from their backs.

Application

DR86 Ultrasonic Thickness GaugeIt is suitable for high-precision thickness measurement of various materials, and can be applied to the thickness measurement of measured objects made of steel, cast iron, aluminum, copper, zinc, quartz, glass, polyethylene, PVC, gray cast iron, ductile iron and other materials.  Only need to place the probe on the contact surface on the side of the measured object, and the thickness of the measured object can be quickly and accurately measured.

Packing list：host x1, standard probe (room temperature) x1, battery x2, manual x1, certificate x1, instrument case x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
