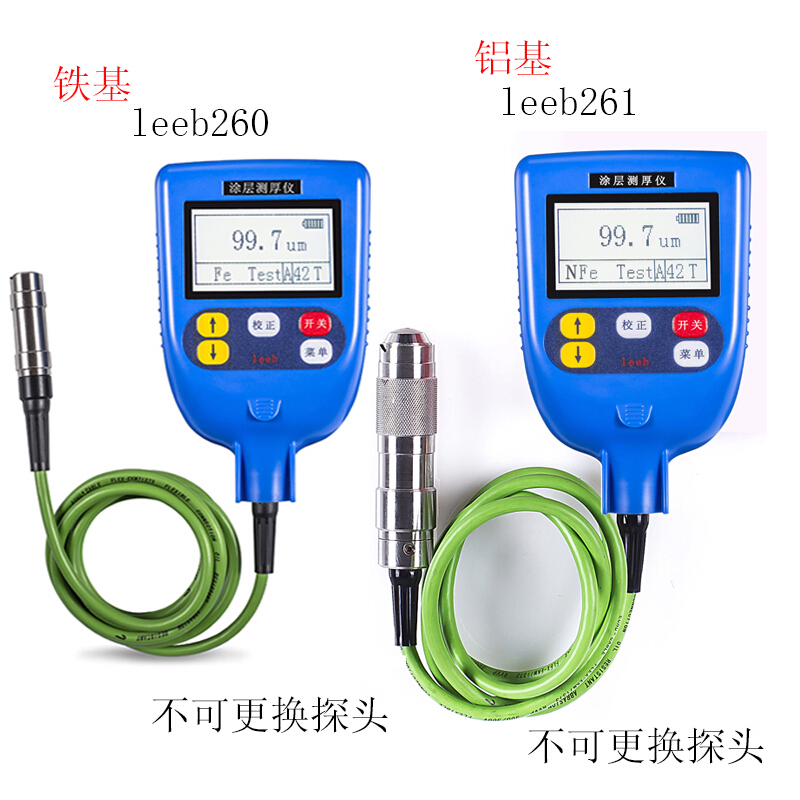

LEEB260 high-precision Coating Thickness Gauge magnetic Induction

leeb260

Coating Thickness Gauge

The high-precision coating Thickness Gauge leeb260 can measure coatings and coatings quickly, without damage, and precisely. It can be used in both laboratory and engineering site. By applying different probes, it can also meet various measurement needs. This instrument is widely used in manufacturing, metal processing, chemical industry, commodity inspection and other testing fields. It is the instrument required by the material protection profession. This instrument complies with the following standards: GB/T 4956-1985 Measurement of thickness of non-magnetic coating on magnetic metal substrate, magnetic method; JB/T 8393-1996 Magnetic coating thickness measuring instrument JJG 889-95 "Magnetic resistance method Thickness Gauge"

Features

● Full Chinese menu interface operation, simple and convenient;

● This instrument adopts the magnetic thickness measurement method, which can non-destructively measure the thickness of the non-magnetic coating (such as zinc, aluminum, chromium, copper, rubber, paint, etc.) on the magnetic metal substrate (such as steel, iron, alloy and   hard magnetic steel, etc.) wait)

● There are two measurement modes: continuous measurement mode (CONTINUE) and single measurement mode (SINGLE);

● There are two Operating Modes: direct mode (DIRECT) and group mode (AB);

● There are five statistics: average value (MEAN), maximum value (MAX), minimum value (MIN), test times (NO.),

  Standard Deviation (S.DEV);

●A variety of calibration methods: the instrument is basically zero-calibrated, and the system error of the instrument can be corrected by calibration with five test pieces;

● With storage function: it can store 4 types of workpieces, each type of workpiece has 26 groups, each group has 15 measured values, and a total of 1560 measured values;

● With delete function: delete a single suspicious data in the measurement, and also delete all data in the storage area for new measurement;

● Set the limit: the measured value outside the limit can be automatically alarmed;

● Buzzer prompts during operation;

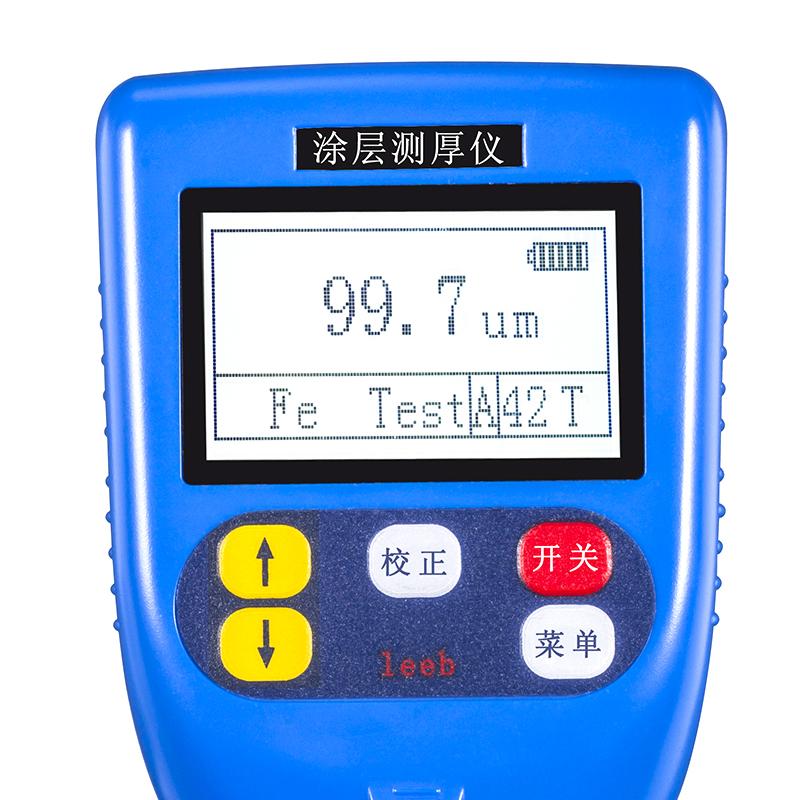

● With bright LED backlight display, it is convenient to use in dim light environment.

● There are two shutdown methods: manual shutdown and automatic shutdown

Packing list：host, standard test piece, substrate, 4 AA batteries, documents, instrument case

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
