TA801C

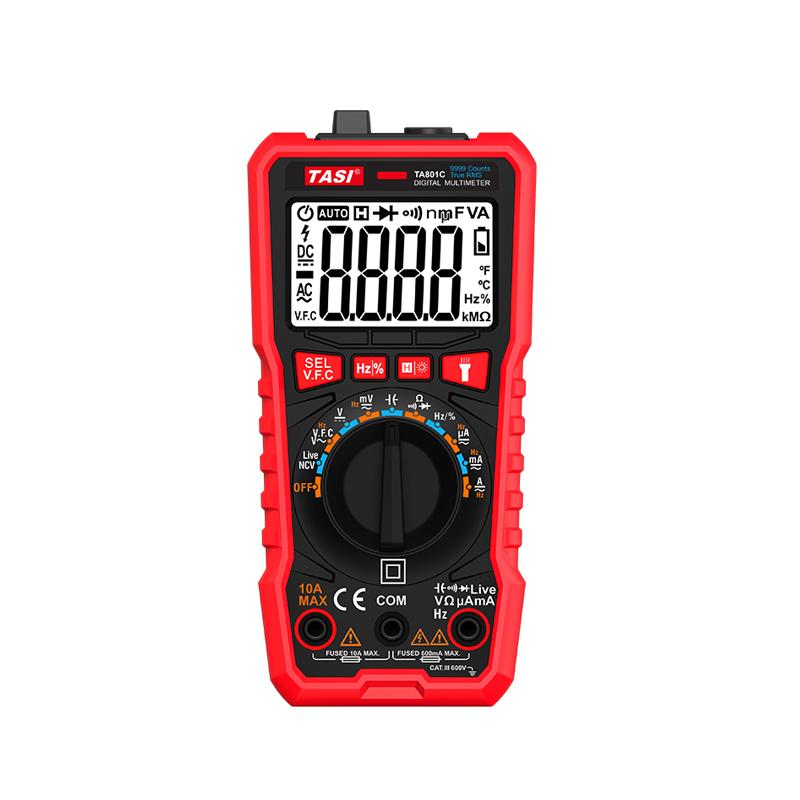

TASI TA801C Automatic Range Digital MultimeterSPEC
TASI TA801C Automatic Range Digital MultimeterDetails
TASI TA801C Automatic Range Digital MultimeterPacking list
- SKU
- NB022814
- DC Voltage
- 99.99mV/999.9mV/9.999mV/99.99V/600V
- DC Voltage - Accuracy
- 0.5%+2
- AC Voltage
- 99.99mV/999.9mV/9.999mV/99.99V/600V
- AC Voltage - Accuracy
- 1.2%+3/1.0%+10
- DC current
- 999.9uA、9999uA、99.99mA、600mA、10A
- DC current - Accuracy
- 1.0%+2、2.0%+2、3.0%+2
- AC current
- 999.9uA、9999uA、99.99mA、600mA、10A
- AC current - Accuracy
- 1.0%+5、2.0%+5、3.0%+5
- resistance
- 999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ
- Resistance - Accuracy
- 0.8%+2/3.0%+5
- capacitor
- 9.999nF/99.99nF/999.9nF/9.999uF/99.99nF/999.9nF/9.999mF/99.99mF
- Capacitance - Accuracy
- 3.0%+10/3.5%+10
- frequency
- 9.999Hz~9.999MHz/9.999Hz~9.999KHz
- Frequency - Accuracy
- 0.1%+5

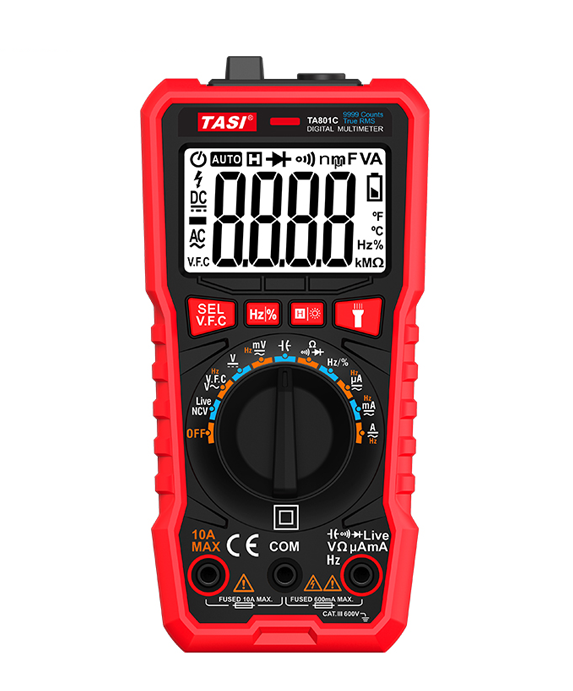

TA801C
Automatic Range Digital Multimeter
Features
1. High-precision automatic range design;
2. NCV non-contact Voltage induction function;
3. Flashlight lighting function;
4. Use single-chip microcomputer to control the backlight on and off, and the automatic shutdown on and off to meet the work needs of different occasions;
5. It has the function of judging zero line and live line;
6. Full protection function, anti-high Voltage ignition circuit design;
7. 100mF large range capacitance measurement;
8. Dial prompt sound and light off and on function;
9. VFC variable frequency Voltage measurement function.
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
