AWL-1001-M

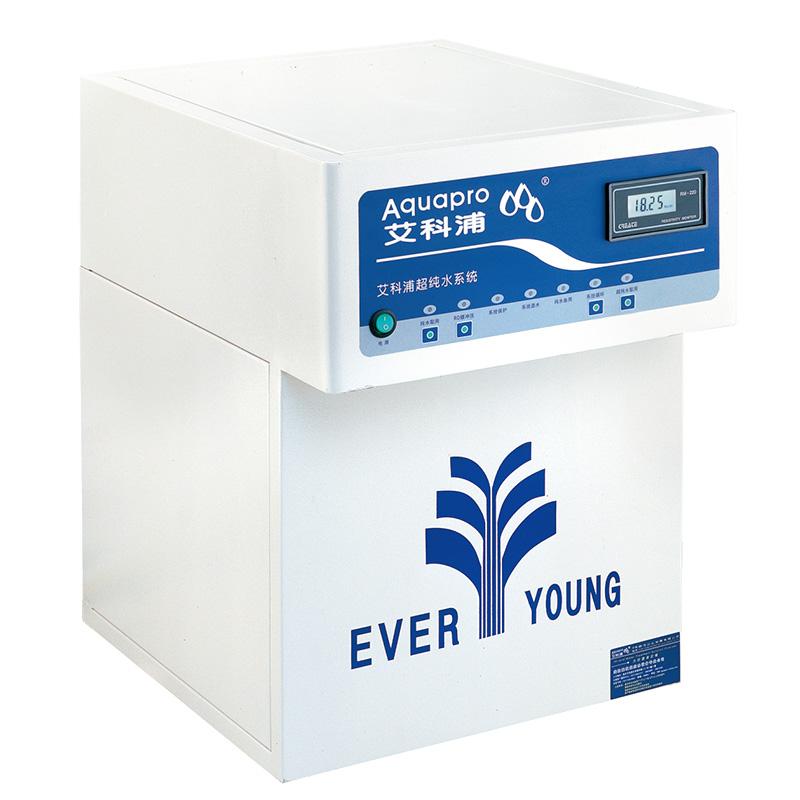

AIC AWL-1001-M Laboratory ultrapure water machineSPEC
AIC AWL-1001-M Laboratory ultrapure water machineDetails
AIC AWL-1001-M Laboratory ultrapure water machinePacking list
- SKU
- NB022876
- Flow Rate
- 240L/day
- Flow velocity
- 1.0-2.0 L/min
- Pure water quality
- Conductivity 2-10μs/cm@25 ℃, in line with the Chinese laboratory water specification GB/T6682-2008 tertiary water standard
- Ultrapure water quality
- Electrical resistivity: 18.2MΩ .cm@25 ℃; TOC * < 5ppb; Microorganisms < 1cfu/ml; Particles (> 0.2um) < 1/ml; Absorbance (254nm, 1cm optical path) ≤ 0.001; Soluble silicon [in terms of (SiO2) ], mg/L < 0.01
- Inlet source
- Municipal tap water, raw water conductivity < 1000μs/cm@25 ℃, total hardness < 200ppm, PH: 6.5-8, free chlorine < 1ppm;
- inlet pressure
- 2-5Kg, water temperature 5-35 ℃
- Operating Environment
- Temperature 5~ 40 ℃, avoid direct sunlight
- Power
- 220V/50HZ, Power: 350W
- Host size
- 540*380*480mm
- Produced water quality
- tertiary water
Features
Tap water enters and the water is produced automatically and continuously, which greatly meets the water needs of the laboratory;
Deep desalination is more suitable for incoming water sources with high salt content (such as northern CHINA). It can effectively reduce the desalination burden of the post-purification column and reduce the equipment operating cost by more than double;
Quickly reaches 18.25MΩ stable water quality upon startup, saving water, electricity and time;
The microcomputer chip fully automatically controls the operation of the equipment and meets GLP safety requirements;
Power-on self-check, water shortage protection alarm, automatic reset after power outage, automatic shutdown after the pure Water Tank is full, ultra-low Voltage protection, UV lamp failure alarm and other functions;
Using imported RO membrane, ion exchange resin, polished nuclear grade resin, silent high-pressure pump, solenoid valve, etc., product performance is maximized;
RO automatically flushes and sterilizes regularly to maximize the service life of accessories;
The water quality online monitoring system can instantly measure the quality of produced water.
Features
1) Important parts are imported with original packaging, and the materials comply with the standards of the American NSF and Water Quality Association;
2) Strictly implement the ISO9001:2008 quality management system to ensure uniform and stable product quality;
3) Standardized module design and production to ensure product maintenance and repair;
Application
Gas chromatography analysis, chromatography mass spectrometry, atomic absorption spectroscopy, atomic emission spectroscopy, spectrophotometry, ultra-high pressure liquid chromatography, effective liquid chromatography, protein electrophoresis, NP analyzer, VOC analysis, TOC analysis.
