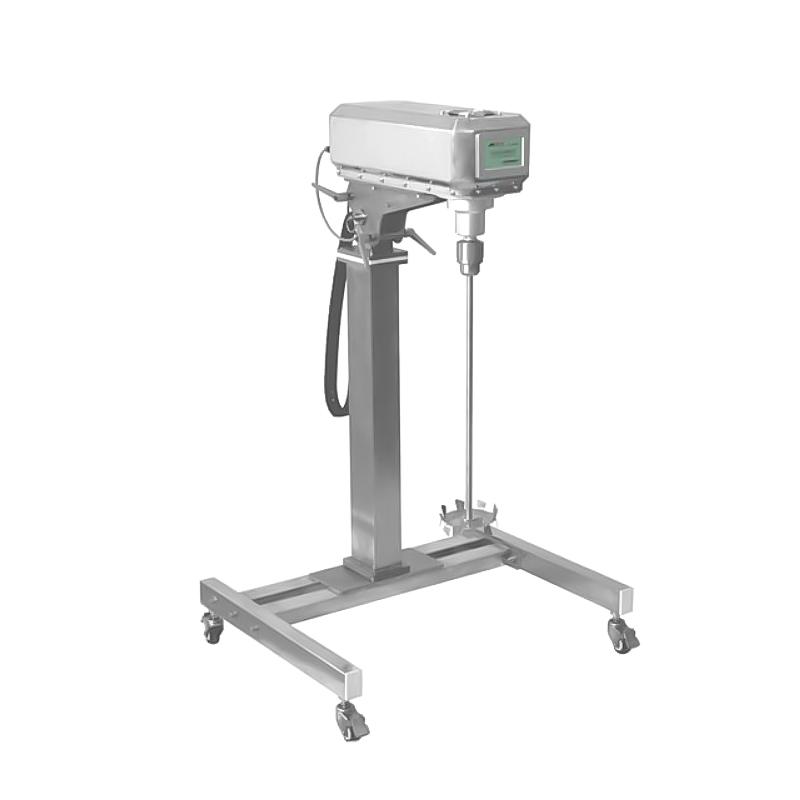

ANGNI AM1000 Laboratory Electric Stirrer
AM1000
AN AM1000 Laboratory Electric StirrerSPEC
AN AM1000 Laboratory Electric StirrerDetails
AN AM1000 Laboratory Electric StirrerPacking list
- SKU
- NB022912
- Rated Voltage
- AC 220 V
- Rated Frequency
- 50/60Hz
- Input Power
- 2200W
- output power
- 1500W
- drive type
- Brushless DC Motor
- Max Torque
- 716.2N.cm
- Max Torque
- 2148.5N.cm
- Operating Mode
- S1 (continuous) min
- Rotation speed display
- LCD
- Control mode
- Touch screen control mode
- Speed range
- 50~2000rpm
- Speed regulation mode
- Promise
- Timer
- 1 ~ 6000min
- Rotation speed dynamic detection function
- Yes
- Rotation speed trend Linear dispersion
- Yes
- Temperature dynamic detection function
- Yes
- Rotation speed memory function
- Yes
- Overload protection
- Yes
- Impeller fixing method
- Quick chuck
- Rotary collet clamping range
- 3~16mm
- Stirringrod penetration diameter
- No
- Impeller type
- Dissolving Impeller (Material: SS 316L Stainless Steel)
- Processing Capacity
- 200L
- maximum viscosity
- 100000mPa.s
- Environmental temperature
- ≤40℃
- Allowable Relative Humidity
- ≤80%
- Protection level
- IP 40；500mm ★

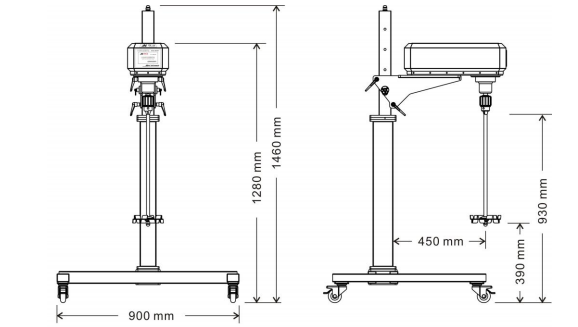

- Dimensions of the whole machine
- 800*730*1250mm
- Machine Weight
- 52 kg
- Impeller material
- 3Cr13 stainless steel
The electronic constant speed mixer is driven by a brushless DC motor, which is suitable for mixing and mixing low-to-medium and high-viscosity liquids in the laboratory. The structure of the machine is reasonable and compact, ultra-low noise, maintenance-free, the stirring speed is controlled by the microprocessor, which can timely and effectively compensate for the speed change caused by load changes and power supply Voltage fluctuations, and the constant speed is reliable. Built-in automatic overload protection device to ensure the safety of long-term and high-load continuous operation of the experiment; knob control of running state makes the experimental operation easier, stepless adjustment of stirring speed to meet the need to correct the stirring speed at any time during the experiment; digital display setting and actual output stirring speed to ensure the intuitive collection of experimental data; operation Timer Control to ensure that the temporality of the experiment is effective and controllable. Stable stirring speed, competent for the mixing of high-viscosity media and slurry.
