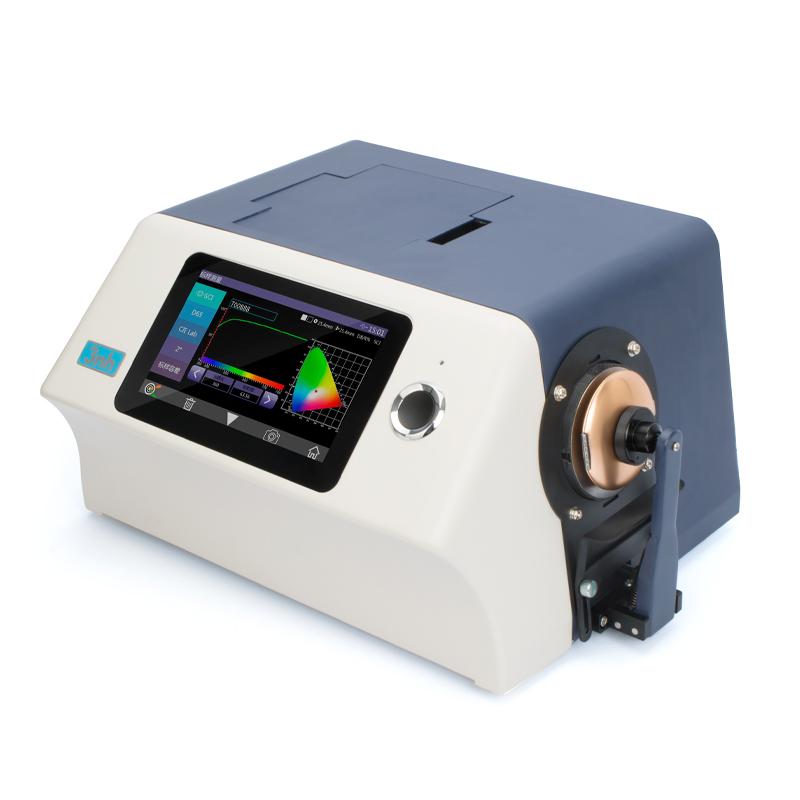

3NH YS6002 desktop color haze meter, transmission: D/0; transmission: φ 25.4mm

SE
The YS6002 desktop color haze meter meets the transmission D/0 geometrical optics structure specified by CIE 15. The instrument illumination Light source is a 360~780nm composite full Light spectrum LED Light source (D65), and the interval of 10nm Light spectrum acquisition is realized by precision concave grating and 256 pixel CMOS Detector.
Model：
Certificate
Contact
Details SPEC Con VIDEO OI

3NH YS6002 Desktop Color Haze MeterSPEC

3NH YS6002 Desktop Color Haze MeterDetails

3NH YS6002 Desktop Color Haze MeterPacking list

SKU
NB023210
Lighting method
Transmission: D/0 (diffuse illumination, 0 ° direction reception); approximate CIE15 specifies 0/0 (parallel light illumination/0 degree reception); meets standards: ASTM D1003/1044, CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ASTM E308, DIN5033 Teil7
Integrating sphere size
F154mm
lighting source
360~780Nm combined LED light source
Spectroscopic method
Concave grating
sensor
256-Pixel dual array CMOS image sensor
Measurement Wavelength range
360~780nm
wavelength spacing
10nm
Half Bandwidth
10nm
Transmittance range
0~200%
Measurement aperture
Transmission: Φ25.4mm
Color space
CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99
Color difference formula
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
Chromaticity indicator
Haze (ASTM D1003/1044), Transmittance T, WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), TI (ASTM E313, CIE/ISO), Isochromatic Spectral Index Mt, lightfastmess, color fastness, force, coverage Cobalt Platinum Index, Gardner Index
Observer angle
2°/10°
Observation light source
D65,A,C,D50,D55,D75,F1,F2,F3,F4，F5，F6,F7,F8,F9，F10,F11,F12
show
Light spectrum graphs/data, sample chromatic values, color difference values/graphs, chromaticity graphs, Color simulation, Pass/Fail results, Color bias
Measurement time
About 1.5s
Sexual repeability
Spectral transmittance: test transmission reference white standard deviation within 0.05% (400~700nm: within 0.04%): chromatic value: Φ25.4mm, ΔE * ab within 0.03 (after instrument preheating correction, the average value of 30 times of transmission reference white is measured at intervals of 5s
Inter-station difference
Φ25.4mm, ΔE * ab within 0.15 (the measurement average value of 5 standard transmission color plates from the original factory)
Weight
Approx. 9.6kg
Power Supply
DC 24V, 3A power adapter Power
Lighting source life
5 years more than 3 million measurements
Display
TFT true color 7inch, capacitive touch screen
interface
USB, print serial port
Store data
5000 master standards and 20,000 samples
language
Simplified Chinese, Traditional Chinese, English
Operating temperature range
0~40℃（32~104°F）
Storage temperature range
-20~50℃（-4~122°F）
Standard accessories
Power adapter, manual, quality management software (official website download), data cable, reflection whiteboard, reflection black cylinder, transmission blackboard, 25.4 caliber, transmission test fixture assembly
Optional accessories
Micro printer
YS6002
Desktop Color Haze Meter

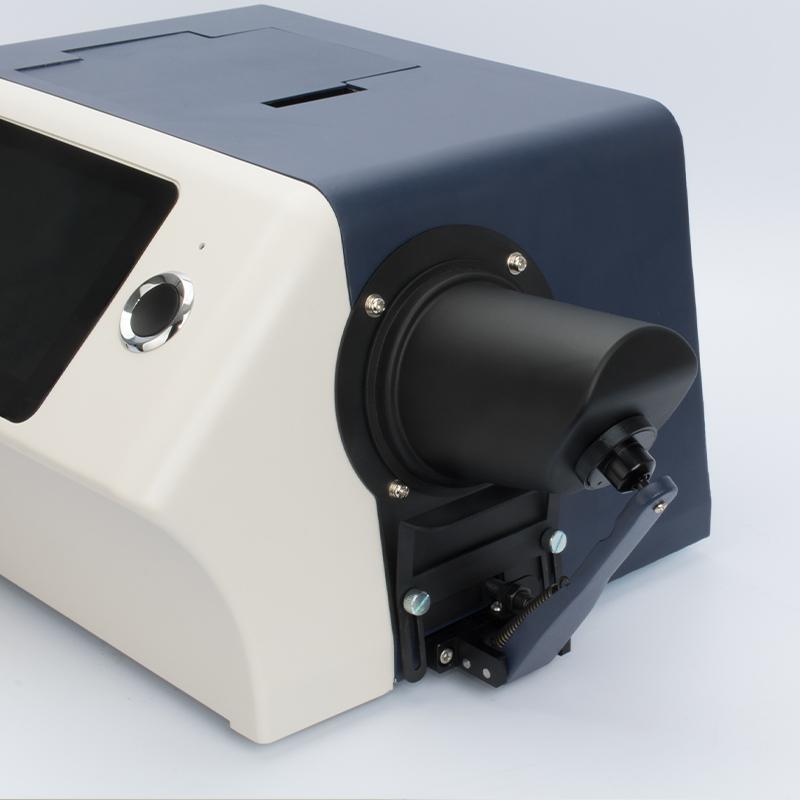

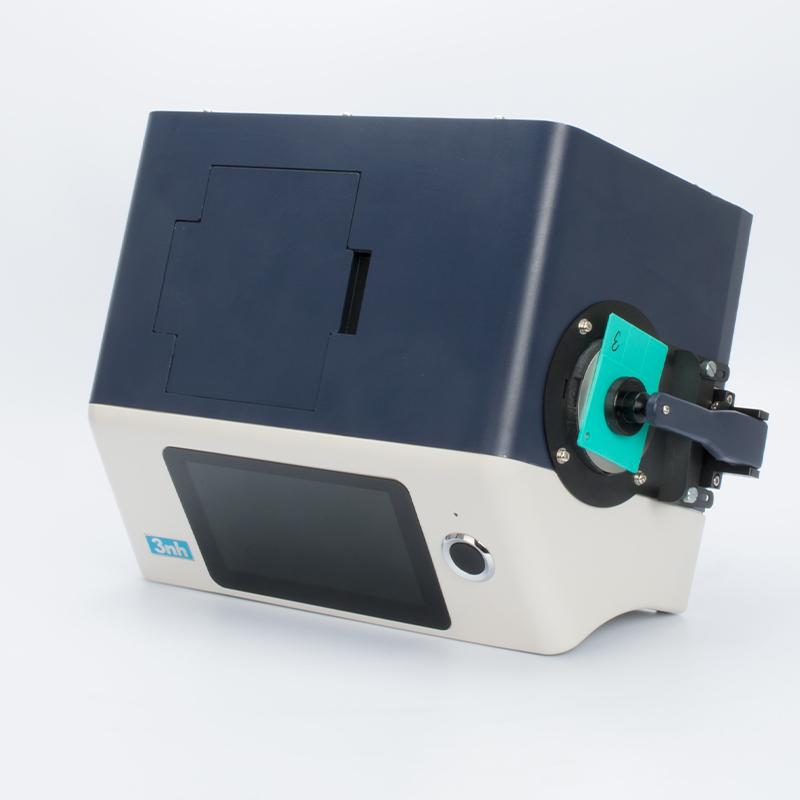

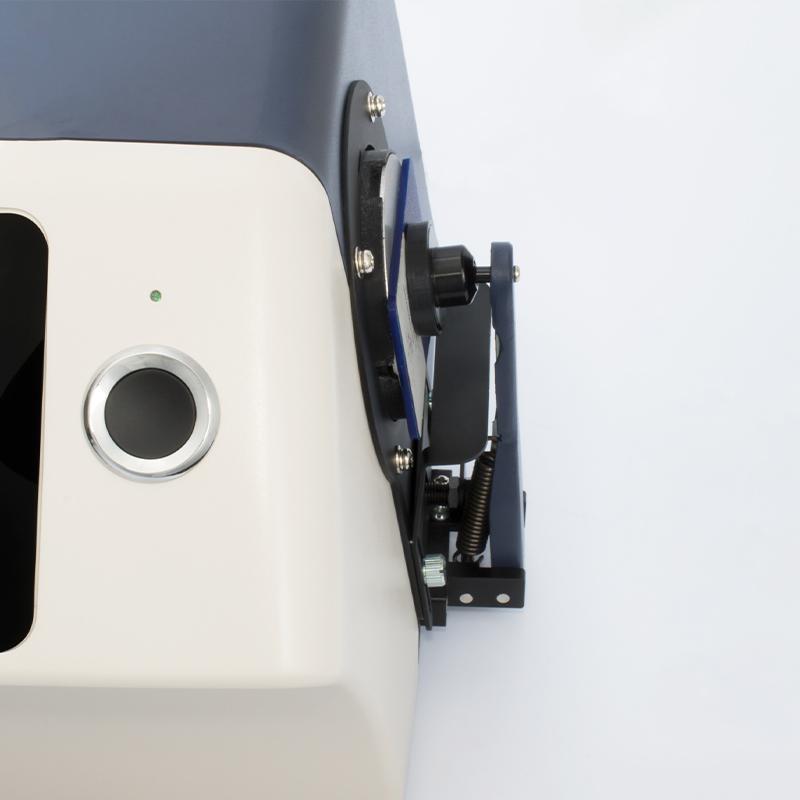

3NH YS6002 desktop color haze meter, transmission: D/0; transmission: φ 25.4mm Picture

Introduction

YS6002 desktop color haze meter meets the transmission D/0 (diffuse illumination, 0° direction reception) geometrical optical structure specified by CIE 15 (it can also achieve approximate transmission 0/0 (parallel light illumination/0 degree reception) geometrical optical structure) . The illumination source of the instrument is a 360~780nm composite full-spectrum LED light source (D65), and the spectrum acquisition is realized at an interval of 10nm through a precision concave grating and a 256-pixel CMOS Detector. Accurate testing of various optical indicators (haze, transmittance, chromaticity, color difference, yellowness, whiteness, cobalt-platinum index, Gardner index, etc.) is realized in accordance with industry standards. It is widely used in glass processing, plastic processing, film manufacturing, display screen processing and packaging industries, liquid liquid analysis, laboratory fields and other industries.

features

a. High hardware configuration: 7-inch TFT pure color capacitive touch screen; 25,000 storage spaces; USB/Bluetooth 4.0 dual communication mode; concave grating;

b. Higher optical configuration and optical resolution, 154mm integrating sphere, concave grating, 256-pixel CMOS Detector, dual optical paths;

c. Adopt 360~780 full-spectrum combination LED light source with high life and low power consumption (close to D65 light source spectrum);

d. Easily realize accurate testing of C/A/D65 light source haze (ASTM D1003/1044), transmittance, cobalt-platinum index, and Gardner index;

e. A variety of measurement modes: quality control mode, sample mode, to meet the needs of more customers;

f. Independent light source Detector and temperature sensor to monitor light source and environmental changes at all times to ensure reliable test data;

g. Two standard observer angles of 2/10, a variety of light source modes, a variety of color systems, chromaticity indicators that meet multiple standards, and meet the needs of various customers for chromaticity testing;

h. Good human-computer interaction and test accuracy and stability;

i. PC-side software has powerful function extensions;

FAQ
QDoes this desktop color haze meter meet the HG/T4009 standard?
A This desktop color haze meter is suitable for HG/T4009. Please consult customer service for detailed application definition.
