3NH YG268 Glossiness Meter

SE
Three-angle detection, automatic correction, in line with JJG696 first-level Glossmeter requirements; 35,000 large-capacity storage; standard quality management software, support for a variety of Measurement modes.
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

3NH YG268 GlossmeterSPEC

3NH YG268 GlossmeterDetails

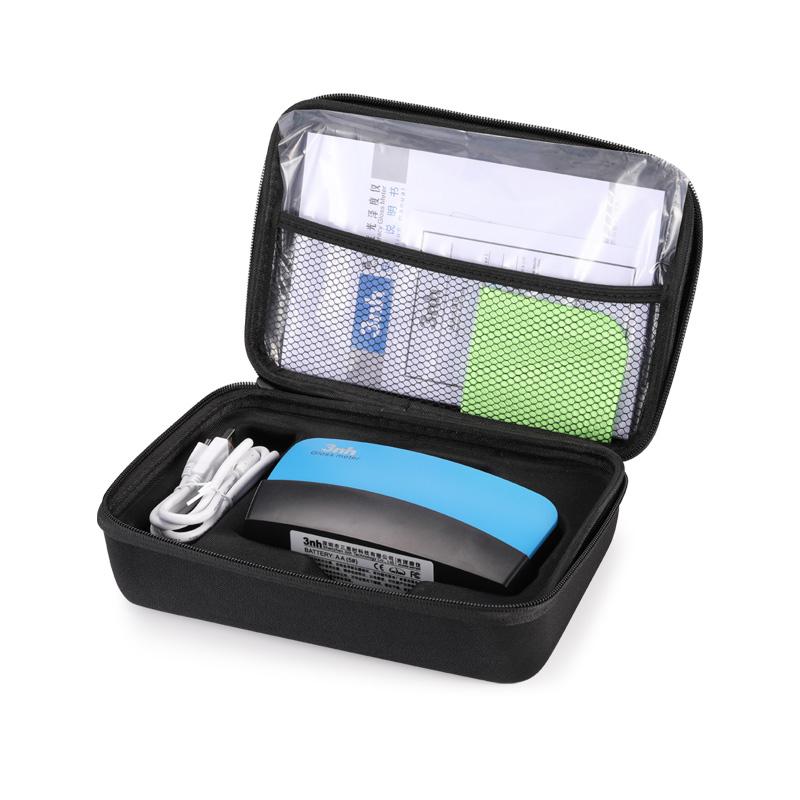

3NH YG268 GlossmeterPacking list

SKU
NB023225
Geometry
20°/60°/85°
Measuring Areas
9*10mm(20°)；9*15mm（60°)；5*38mm(85°)
Measuring range
20 °: 0~2000GU 60 °: 0~1000GU85 °: 0~160GU
Division Value
0.1GU
Measurement mode
Basic mode, statistical mode, continuous mode, quality control mode
Measurement time
0.5s
Repeatability
0~100GU:±0.2GU ;  100~2000GU:±0.2%GU
Accuracy
Meet the requirements of JJG 696 first-class working glossiness instrument
Automatic shutdown time
30~120 seconds optional
Calibrate
Automatic inspection and calibrating/manual calibrating
Operating language
Simplified Chinese, English, Traditional Chinese
data storage
35,000 items (15,000 items in basic mode and continuous mode, 10,000 items in quality control mode, 10,000 items in statistical mode)
Display
2.3 inch black and white display
Dimensions
160*52*84mm
Weight
Approx. 300g (including calibration box and battery)
Power
1 AA alkalinity battery (AA alkalinity battery or NiMH rechargeable battery), can be measured more than 10,000 times; or use USB port
Data Interface
USB, Bluetooth ® 2.1
software
GQC6 quality management software, Quality control report printing, more function expansion
Operating Temperature
0~40℃
Storage temperature
-20~50℃
Environment Operating Humidity
Less than 85% RH, no condensation
YG268
Glossmeter
Three-angle detection, automatic correction, in line with JJG696 first-level Glossmeter requirements; 35,000 large-capacity storage; standard quality management software, support for a variety of Measurement modes.

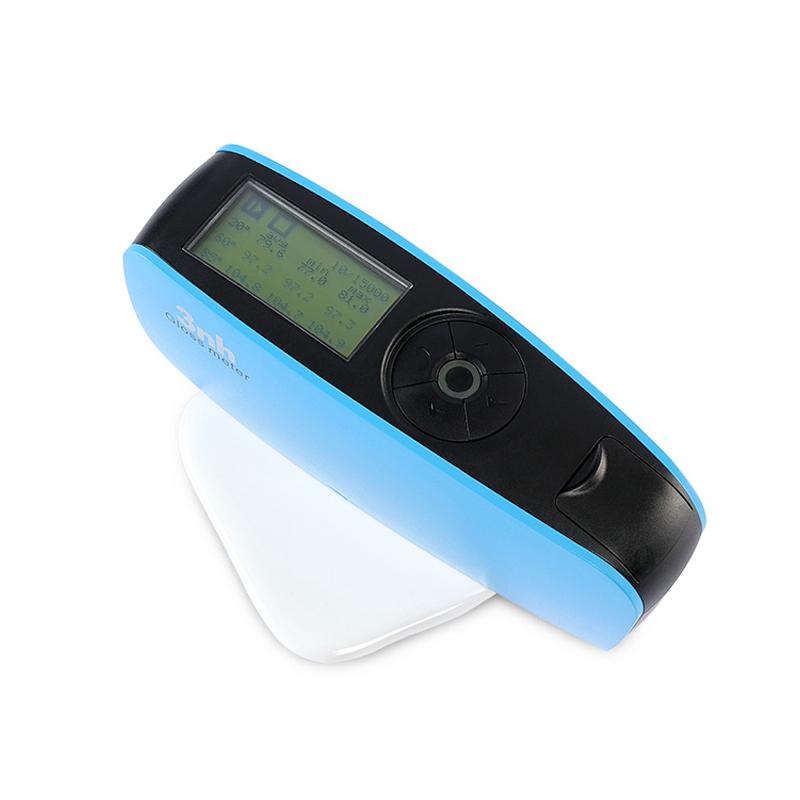

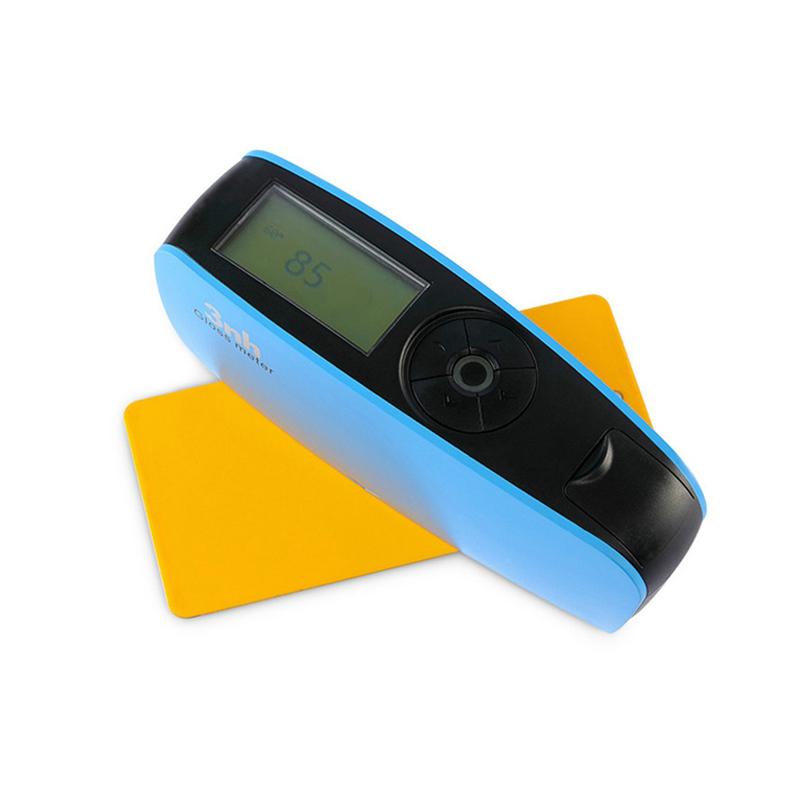

3NH YG268 Glossiness Meter Picture

YG268 three-angle high-precision gloss meter is a gloss measuring instrument designed and manufactured with reference to the international standard ISO2813 and Chinese national standard GB/T9754. It has the function of automatically checking and calibrating the standard plate, equipped with high-end quality management software, and meets JJG696 first-class working gloss Meter requirements.

Features

1. The aesthetic surface design is closely combined with ergonomics;

2. It has the function of automatically checking and calibrating the standard plate;

3. Meet the requirements of JJG696 first-class gloss meter;

4. Large-capacity storage space, which can store 35,000 pieces of measurement data;

5. With automatic shutdown function, 30~120 seconds can be freely selected;

6. Comply with the standards ISO2813, ASTMD523, GB/T9754;

7. Equipped with quality management software, which can print quality inspection reports to achieve more functional expansion;

8. Multiple Operating Modes and multiple function settings can meet different needs of customers.

Application

Used for gloss measurement and quality inspection in paint ink, coating, paper printing, plastic electronics, furniture, ceramics, electroplating, hardware, marble and other industries.

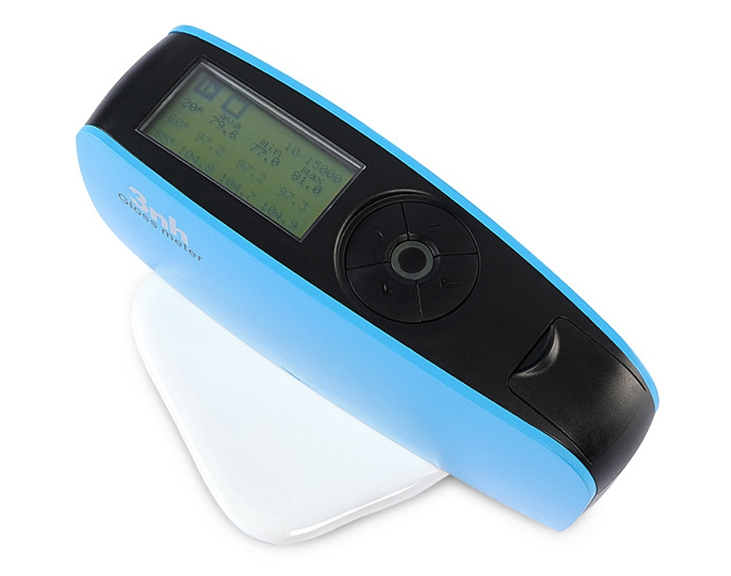

3nh/3nh YG268 three-angle gloss meter display

FAQ
QTest tiles, ceramics, which model glossmeter is recommended?
A This one is OK, single-angle YG60 or three-angle YG268 are OK.
QMeasured values for the 20 60 85 degree angles mentioned in the glossmeter, in the case of the same measurement sample, will the three angles differ greatly?
A Yes, similar to the effect of the human eye seeing the past from different angles
QYG268 glossmeter. Measurement certificate included as standard?
A No Third Party Measurements,
QDoes the 3nh glossmeter meet the ISO2813 standard?
A The YG268 glossmeter can refer to
QWhat is the calibrating of this three-angle gloss meter? Is it automatic?
A Hello, the calibrate of this YG268 gloss meter is automatically inspected and calibrated when it is turned on, or you can calibrate it manually.
QHow many sets of measurement data can the 3nh YG268 three-angle Gloss meter store? Our laboratory technology requires a large capacity.
A Hello, this YG268 three-angle gloss meter is a gloss meter with large storage space, which can meet your needs. The storage is large enough, and there are 35,000 pieces.
