CHNSPEC CS-800 Desktop Colorimeter reflection measurement Colorimeter

Measurement port facing up, 11mm caliber, using D/8 Illumination condition, can simultaneously measure SCI and SCE, spectral reflectance standard deviation within 0.08, chromatic value Delta E * ab MAX Maximum 0.03, inter-table difference within 0.2, provide all necessary color equations, standard Color management software and Measurement test report.
Model：
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

CHNSpec CS-800 ColorimeterSPEC

CHNSpec CS-800 ColorimeterDetails

CHNSpec CS-800 ColorimeterPacking list

SKU
NB000240
Lighting method
D/8 (Scattering Light source, 8 degrees Viewing Angle) SCS Optical inspection engine (spectroscopic integration system), ETC (real-time calibrated technology), with SCI (including specular reflection component)/SCE (excluding specular reflection component) synchronous measurement function
Sensors
Dual Path Array Sensors
Measurement time
0.5s
Measurement caliber
Φ11mm
Spectroscopic reflectance Repeatability
Standard deviation within 0.08%
Operating language
Chinese, English
Interface
USB
Viewing Angle
CIE 2°/10°
Available Light Sources
CLEDs (Full Band Equalized Led Light sources)
Color difference formula
delta E * ab, delta E * CH, delta E * uv, delta E * cmc (2:1), delta E * cmc (1:1), delta E * 94, delta E * 00, delta Eab (Hunter), 555, shade classification
data storage
40,000 test data
Power supply Voltage
Charging, repeability, continuous measurement 20000 times, 7.4V/6000mAh
display mode
Light spectrum map/data, sample chromatic value, color difference value/map, pass/fail result, Color bias, Color simulation, Display measurement area, Historical data color simulation, Manual input standard sample, Generate test report
Operating environment
0~45 ℃, Relative Humidity 80% or less (at 35 ℃), no water condensation
Storage environment
-25~ 55 ℃, Relative Humidity 80% or less (at 35 ℃), no water condensation
Dimensions
350*300*200mm
Weight
About 4.5kg
Integrating sphere size
Φ40mm
Wavelength range
400~700nm
wavelength interval
10nm
Light spectrum Bandwidth
5nm
Reflectance Measurement Range
0~200%
Reflectance resolution
0.0001
Color Space
CIE-L * a * b, L * C * h, L * u * v, XYZ, Yxy, reflectance, Hunterlab, Munsell MI, CMYK
Lighting source life
10 years 3 million times
Inter-instrument Agreement
ΔE*ab<0.2
Display
5-Inch full-color true color screen
Color scheme
can be matched
UV Light source
No UV Light source
Chroma indicator
WI, YI, TI, homochromatic index MI, colour fastness, discoloration fastness, ISO luminance, 8 Glossiness, A density, T density
Repeatability of chromatic value
Delta E * ab 0.015, MAX Maximum 0.03
CS-800
Colorimeter
Measurement port facing up, 11mm caliber, using D/8 Illumination condition, can simultaneously measure SCI and SCE, spectral reflectance standard deviation within 0.08, chromatic value Delta E * ab MAX Maximum 0.03, inter-table difference within 0.2, provide all necessary color equations, standard Color management software and Measurement test report.
CHNSPEC CS-800 Desktop Colorimeter reflection measurement Colorimeter Picture

Introduction

Color spectrum CS-800 Spectrophotometer is a kind of desktop Spectrophotometer , the test aperture is facing up, the measurement aperture is 11mm, it is a high-performance Spectrophotometer .The illumination observation geometric conditions of the CS-800 Spectrophotometer adopt the D/8 structure, which can measure both SCI and SCE at the same time, and has real-time calibration technology.CS-800 Spectrophotometer It integrates full-band LED composite light source, dual-path beam splitting system, ETC real-time calibration and other technologies, the standard deviation of spectroscopic reflectance is within 0.08, the chromaticity value is 0.03 maximum, and the difference between stages is within 0.2.The CS-800 benchtop Colorimeter is suitable for:The need to measure color difference and analyze color in various fields such as coatings, printing, textiles, plastics, food, products, and automobiles.

Product application advantages

▪ The CS-800 desktop Spectrophotometer adopts D/8 illumination observation geometric conditions, and the test aperture is designed upwards, which is convenient for measuring samples in different states such as solids, particles, powders, pastes, etc.

▪ Solid samples (plates, fabrics) can be placed directly on the measuring port, and particles (tablets, masterbatches), powders (pigments, coffee), pastes (ketchup) can be placed in a petri dish and then placed on the test port for measurement.

▪ The CS-800 benchtop Spectrophotometer adopts ETC real-time calibration technology (Every Test Calibration),CS-800 benchtop ColorimeterSystem hardware and software are calibrated. This technology fundamentally solves the long-term measurement stability and data drift problems of color measuring instruments. The standard deviation of spectroscopic reflectance is within 0.08, the chromaticity value ΔE*ab is 0.03, and the difference between stages is within 0.2.

▪ The CS-800 desktop Spectrophotometer can be used through a PC and color management software connection, which is convenient for enterprise quality monitoring and color data management. It can digitize the user's color management, compare the color differences, generate test reports, provide a variety of color space measurement data, and customize the customer's color management work.

Features

▪ 5-inch true color display

▪ The test aperture is facing upwards, which is convenient for the measurement of samples in different states such as solids, granules, powders, pastes, etc

▪ Φ11mm measuring aperture

▪ CS-800 benchtop Spectrophotometer With LED light source, it is very durable and can measure up to 3 million times in 10 years

▪ Simultaneous measurement of SCI (including specular reflection) and SCE (elimination of specular reflection)

▪ Obtained domestic (CN) metrology certification

▪ It can be connected to USB to transfer data, and can be operated on the PC software on the host computer

▪ Massive storage space: CS-800 Spectrophotometer 40,000 test data can be recorded

▪ Novel and stylish design based on ergonomics

▪ Simple operation mode, simple operation interface

▪ Low-power design, large-capacity rechargeable lithium battery configuration

▪  CS-800 Spectrophotometer It can be connected to a micro printer for printing

▪ CLEDs official full-band equalized LED light source is adopted

CS-800 Benchtop Spectrophotometer Spectral Loss vs. Equilibrium Comparison

▪ ETC real-time calibration technology

▪ Automatic gloss compensation technology

The CS-800 benchtop Spectrophotometer automatically compensates for different gloss

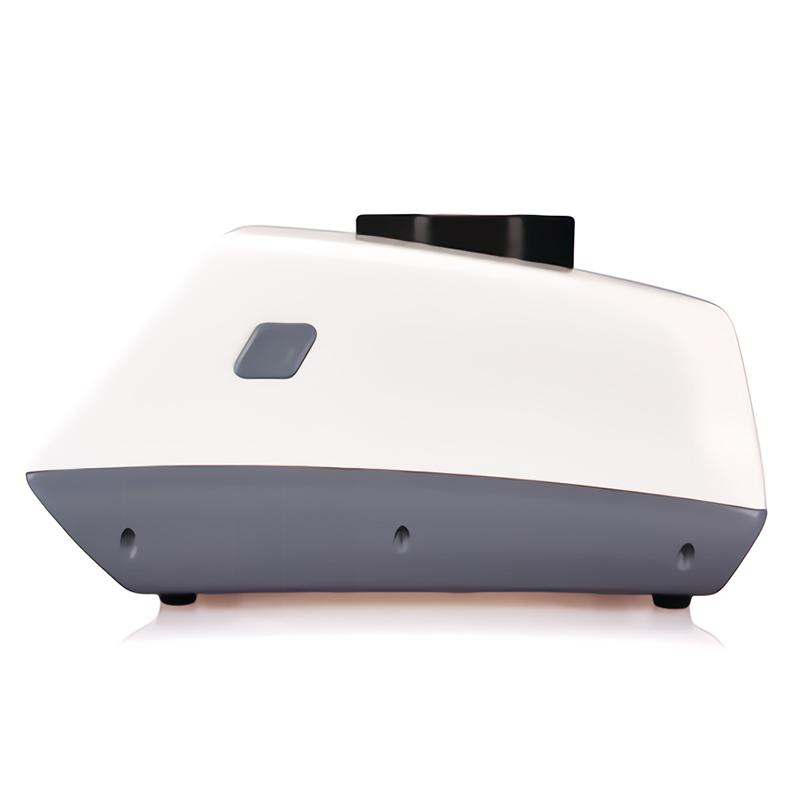

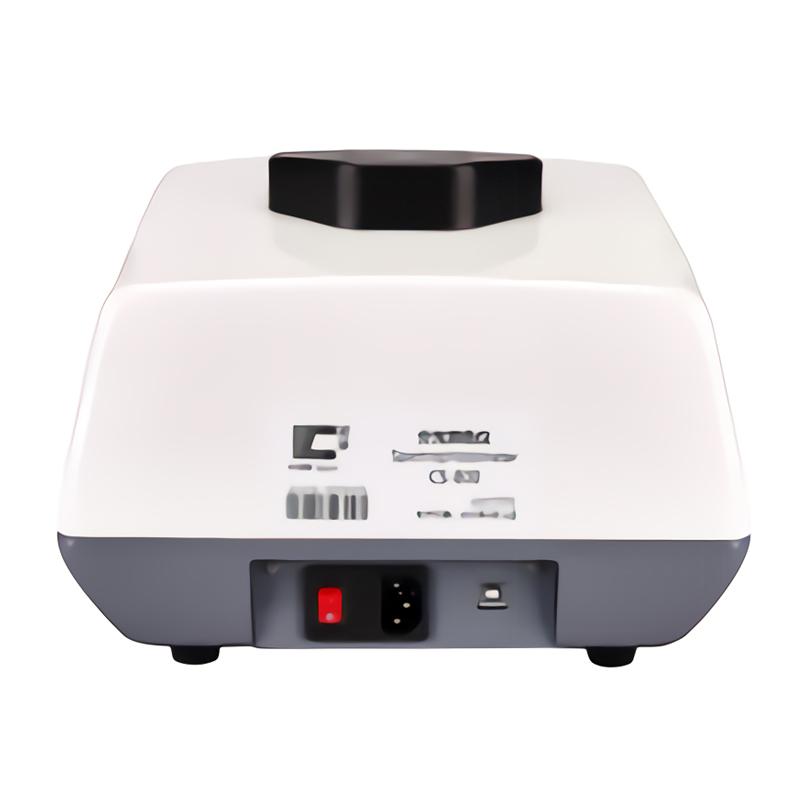

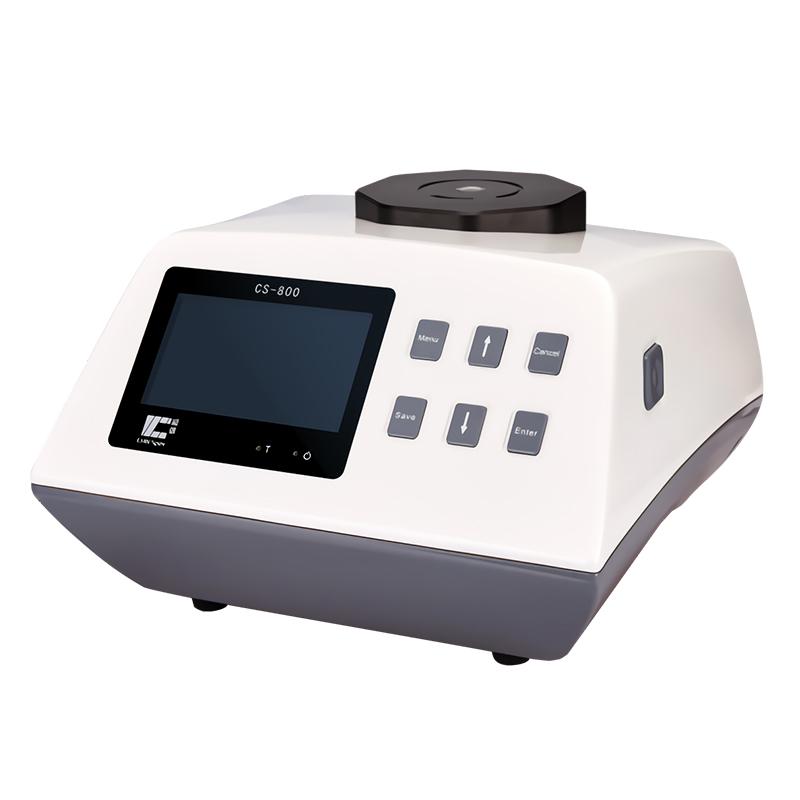

Actual picture of the product

Color spectrum CS-800 desktop Spectrophotometer real picture

FAQ
QMeasure the color difference of ketchup
A Can test
QMeasure the light reflection value of different Colors?
A CHNSPEC CS800, can measure the reflectance of objects
QWe produce fruit sparse beverages. Using this equipment to detect, the Lab is OK, right?
A Hello, CS-800 does not work for liquid testing. It takes 820 or 810 to use liquid.
QWhat is the test caliber of this CS-800 colorimeter?
A Hello, the measurement diameter is φ 11mm.
QWhat is the reflectance of this colorimeter? Is the resolution high?
A Hello, the reflectance range is 0~ 200% and the resolution is 0.0001.
QDo you have the instruction manual for this colorimeter?
A Hello, the manual can be read or downloaded directly on the product page.
QCan this desktop colorimeter of color spectrum measure the color difference of liquids?
A Hello, it can be measured, placed in a culture dish, and placed at the measurement port for measurement.
QCan CS800 measure the reflectance of objects?
A Hello, the reflectance measurement range of CS-800 colorimeter test is 0~ 200%.
QMeet GB/T6688 Colorimeter
A CS-800 Colorimeter, please refer to it.
QDoes the CS-800 have a built-in correction function?
A No, they are all externally calibrated. All instruments have two calibrated boxes with one black and one white.
