HYQC-1500 1.5 cubic meters environment Test Chamber Glass

SE
The 1.5 cubic meter environment Test Chamber of the ring instrument HYQC-1500 has a Test Chamber volume of 1500L and an inner size of 900 * 1850 * 900mm. The HYQC-1500 environment Test Chamber adopts a stainless steel frame.
Model：
Certificate
Contact
Details SPEC Con CAT

huangyi HYQC-1500 1.5 cubic meters environment Test Chamber (Glass)SPEC

huangyi HYQC-1500 1.5 cubic meters environment Test Chamber (Glass)Details

huangyi HYQC-1500 1.5 cubic meters environment Test Chamber (Glass)Packing list

SKU
NB024242
Test chamber material
Adopt stainless steel frame, 10mm float plate Glass.
Gas leakage rate
Under the overpressure of 1000 Pa, the gas leakage rate is less than 0.5% of the box Volume per minute; in use, the gas leakage rate is less than 1% of the gas supply gas flow.
Box Doors and Flanges
Press the seal with two compression handwheels
configuration structure
Test chamber plus stainless steel sample holder, fluorescent lamp, fan, and sampling port
Air sampling system
The sampling holes are located at a height of 1.3m from the bilge, a total of three, on the left bulkhead. Material is copper joint, ball valve control
Inner size
900W*1850H*900Dmm
Test box Volume
About 1500L
HYQC-1500
1.5 cubic meters environment Test Chamber (Glass)

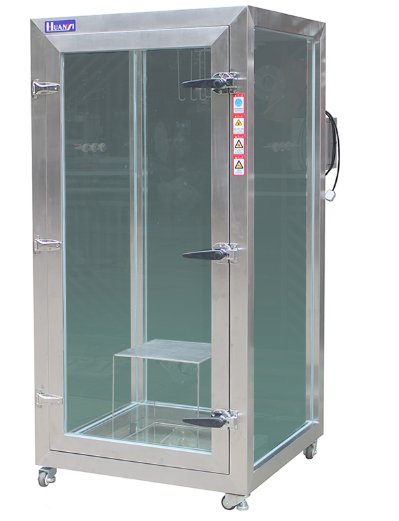

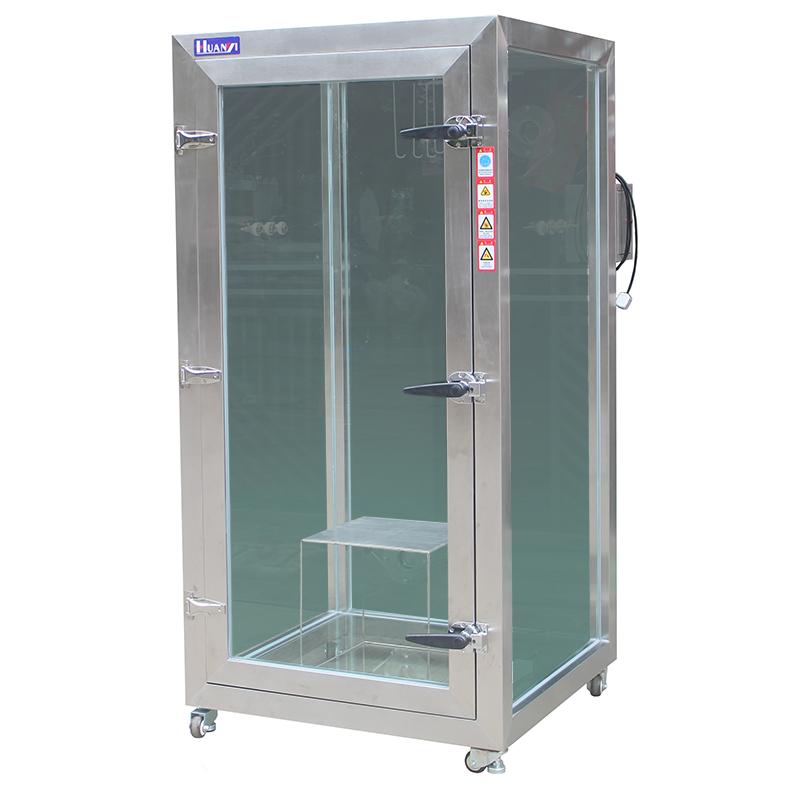

HYQC-1500 1.5 cubic meters environment Test Chamber Glass Picture

Introduction

Conforms to QB/T 2761-2006 "Method for Determination of Purification Effect of Indoor Air Purification Products".

The HYQC-1500 environmental Test Chamber of HYQC-1500, a 1.5 cubic meter environment Test Chamber, adopts stainless steel frame and 10mm float glass. No background interference or memory effect on the test. No absorbent material, smooth and clean surface. An airtight, non-absorbent sealing strip is used at the hatch opening.


FAQ
QExcuse me, a box is enough for the HYQC-1500 test, right? Or do you need another gas generator?
