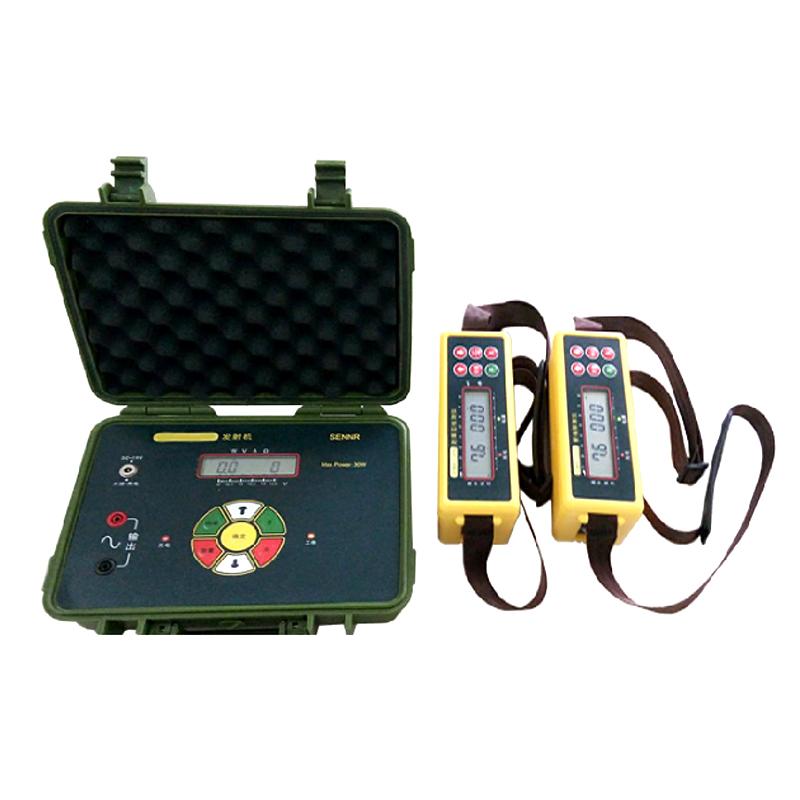

SENNR-2898 Anti-corrosion layer Detector

SENNR-2898

Anti-corrosion layer Detector

Introduction

SENNR series buried pipeline anti-corrosion layer condition Detector can conveniently and accurately detect the position, direction, depth, precise location and size of the anti-corrosion layer damage point of the buried pipeline without digging the overburden. The instrument can also be used for the detection of pipeline anti-corrosion layer on the surface of cement asphalt and other high-impedance pipelines, which solves the problem that similar foreign instruments cannot detect pipeline anti-corrosion layer on cement asphalt pavement.

Features

1. Flat design and keyboard operation are adopted to improve the reliability of field use.

2. The ABS material of the instrument shell is small in size, light in weight and easy to operate;

3. Adopt new digital filtering technology, which has stronger anti-interference ability;

4. The "human capacitance method" is used to detect the damage point of the anti-corrosion layer, and the cement asphalt pavement is easily detected.

5. Display the dB value of the signal strength of the damage point of the anti-corrosion layer, determine the size of the damage point of the anti-corrosion layer, and do not need to rely on experience to judge;

6. Metal-plated connectors to improve the reliability of field use;

7. The measurement of pipe depth and current size can be directly read, and the operation is simple and convenient;

8. With a guiding function to indicate the direction of the pipeline, the image is intuitive, and the detection speed is faster;

9. The receiver has a wide dynamic adjustment range, which is 100 times that of the general anti-corrosion layer Detector;

10. Multi-frequency output of transmitter, suitable for more application sites;

11. Multimeter function: it can measure output Voltage, current, impedance and power;

12. The transmitter and receiver have built-in power supply, which is powered by large-capacity lithium battery pack, which is energy-saving and environmentally friendly and greatly reduces the weight of the instrument

Product parameters

Technical parameters of the transmitter:

Operating frequency: 512Hz

Transmitter power: 0~30W on, can be adjusted automatically

Output impedance matching: 5-500Ω, automatic matching

Launch range: 0.03-5Km, can gradually move to 5Km away

Power Supply: 14.8V lithium battery

Operating temperature: -20°C~+50°C

Weight: 3.0 kg (with battery)

Dimensions: 274×225×98mm

Technical parameters of the probe tube:

Positioning accuracy: 5% of the buried depth of the pipeline±;

Bathymetry accuracy: 5% of the buried depth ±of the pipeline;

Baymetric range: ≤6m;

Power supply: 7.4V lithium battery;

Operating temperature: -20°C ~+50°C

Weight: 0.6Kg (including battery)

Dimensions: 165×90×68mm

Technical parameters of the Detector:

Leak detection accuracy: ≥0.25mm2

Power supply: 7.4V lithium battery;

Operating temperature: -20°C ~+50°C

Weight: 0.6Kg (including battery)

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
