NIRUN STM-2T Digital Stormer Viscometer Coating paints inks

SE
Digital touch, in line with the international standard ASTM D562, for the determination of Coating paints inks, Measurement range 40~141KU, 32~ 1099g, 27~ 5274cP.
$1024.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

NiRun STM-2T Digital Stormer ViscometerSPEC

NiRun STM-2T Digital Stormer ViscometerDetails

NiRun STM-2T Digital Stormer ViscometerPacking list

SKU
NB024653
Display
Digital touch
Measuring range
40 ~ 141KU, 32 ~ 1099g, 27 ~ 5274cP
Unit display
KU / g / cP
Swirl/spin speed
200rpm
Sexual repeability
±0.5%F.S
Accuracy
±1%
Power
220V/50Hz
Lifting method
Knob lift
Applicable standard
ASTM D562、GB9269
Container size
1pint
STM-2T
Digital Stormer Viscometer
Digital touch, in line with the international standard ASTM D562, for the determination of Coating paints inks, Measurement range 40~141KU, 32~ 1099g, 27~ 5274cP.
NIRUN STM-2T Digital Stormer Viscometer Coating paints inks Picture

It is used to measure the viscosity of paints, coatings, inks, etc., which is expressed by KU value) (the technical indicators of the instrument model cover the technical indicators of STM-1 to STM-4 Stormer viscometers in the existing market, in line with international standards ASTM, D562 .


Optional :

Special viscosity constant temperature Water Tank, micro printer.

SNB data acquisition and graphing software, standard oil.

technical features

  • 5-inch touch screen, easy to operate, rich display information

  • Anti-static shell, PC lifting rod

  • RTD temperature probe standard configuration

  • ARM chip processor, faster data processing speed

  • This model covers the indicators of STM-1 to STM-4 in the existing market. No weights and pulleys are required, which simplifies the test procedure.

  • The structure design of the manual lifting frame reduces the requirements for the control of the test liquid level

  • Conform to coating industry standard ASTM D562, GB9269

  • Stepper motor direct drive, no gear, accurate speed

  • Can lock viscosity value, KU value, load value, temperature value

  • Viscosity value shows continuous change

  • Print port with automatic test data output

  • Computer full range linear calibration

  • AC power adapter 100V-240V, good anti-interference

structure diagram

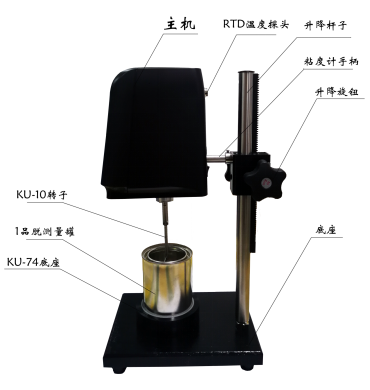

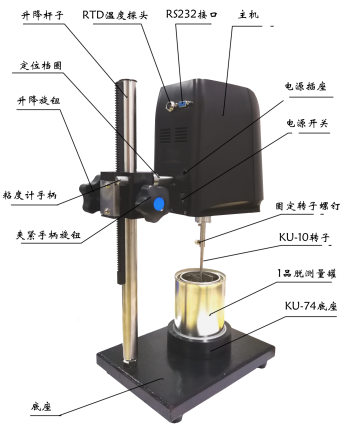

NIRUN STM-2T digital viscometer front structure diagram 1NIRUN STM-2T digital viscometer side structure diagram 2

FAQ
QI want to measure the KU viscosity of paints, which instrument should I choose?
A The STM-2T digital Stormer Viscometer is designed for paints, directly displays KU values, meets ASTM D562 standards, is easy to operate, has a 5-inch Touchscreen at a glance, and automatically locks test data.
QWhat are the practical functions of this viscosity meter?
A The STM-2T has a full range of functions: automatic viscosity locking, with temperature Probe, data can be printed or exported. It simplifies operation, no weight and pulley, manual lifts reduce liquid level control requirements, process data quickly, and is suitable for daily mass inspection.
QWhat is the difference between Stormer Viscometer and Rotational Viscometer?
A The differences between Stormer Viscometer and Rotational Viscometer are as follows: The principle is different 1: Stormer Viscometer: When the object does torsional motion in the fluid, it will be damped by the fluid tack, the amplitude will be attenuated, and the energy lost due to the damping of the liquid tack will be replenished, so that the amplitude of the object is maintained in the state before the interaction with the fluid. This part of the replenished energy is related to the viscosity and Density of the fluid. The measurement of this part of the replenished energy can determine the viscosity of the fluid according to a certain relationship. Swirl/spin Viscometer: When swirl/spin the object entering the fluid to be tested, or keep the object stationary, and make the fluid around the object swirl/spin flow, due to the presence of shear stress, the object in these fluids will be affected by tack torque. If swirl/spin and other conditions are guaranteed to be the same, the size of the tack moment will change with the viscosity of the fluid. By measuring the size of the tack moment, the viscosity of the fluid can be obtained according to the viscosity formula. Structural differences 2: Stormer Viscometer: Stormer Viscometer is a kind of rotational viscometer, but the structure is relatively special. Swirl/spin Viscometer: Swirl/spin Viscometers can choose rotors, choose containers, and more.
QFind a Digital Stormer Viscometer for GB/T9268
A This is the STM-2T Digital Stormer Viscometer.
QHow big is this Nirun STM-2T measurement container?
A Hello, the container of the STM-2T Stormer Viscometer is 1 pint or 0.5 pint.
QDoes Nirun STM2T Stormer Viscometer support temperature measurement of samples?
A Hello, STM-2T has an RTD temperature probe, which can meet your requirements.
