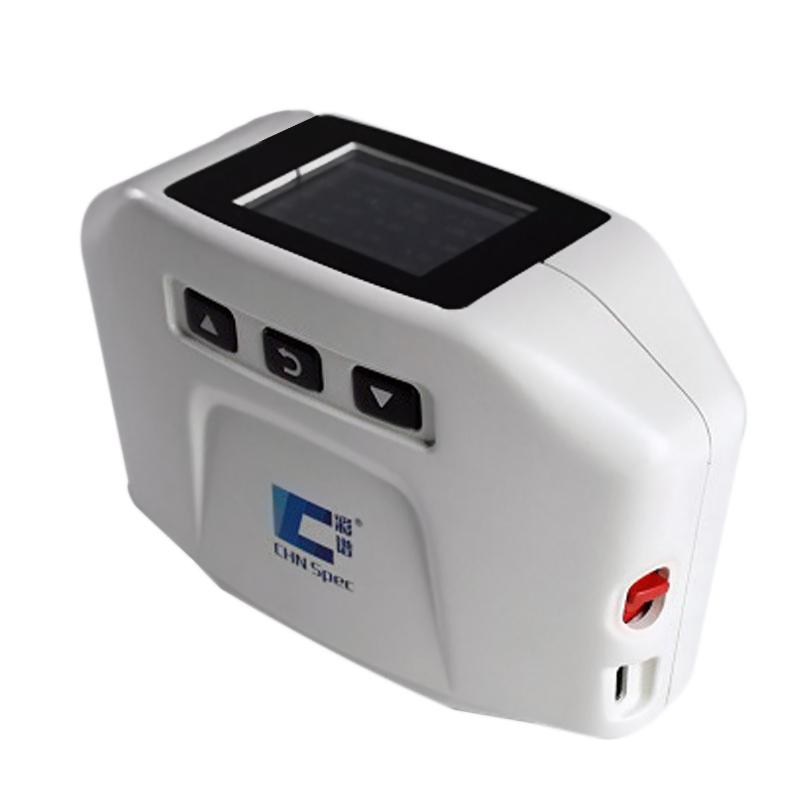

Color measurement of three angle Colorimeter particles

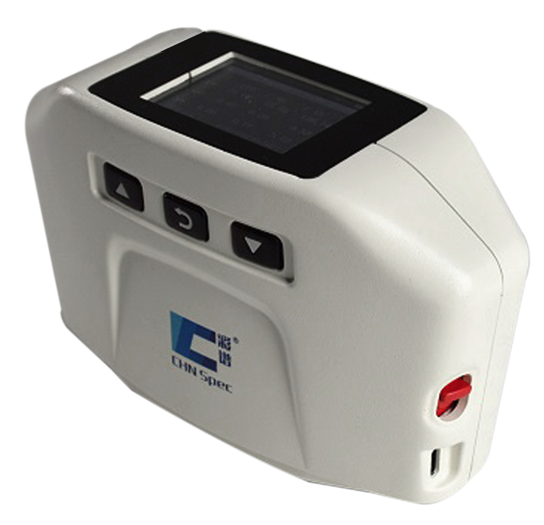

CS-392

Three Angle Colorimeter

Specialized in measuring automotive paint, measurable particle Color, 15 °, 45 °, 110 ° three-angle measurement, Repeatability dE ≤ 0.05, integrating sphere diffuse particle measurement, suitable for measurement of automotive surface paints Reflection spectrum and Color data.

Introduction

The overall color impression of effect topcoats varies depending on Viewing Angles and viewing conditions. The multi-angle effect color meter puts multiple functions in a handheld instrument, which can measure multi-angle color difference. It is a multi-angle color measuring instrument specially developed for the automotive paint industry. It is suitable for measuring the reflection spectrum and color data of automotive surface paint.

CS-392 also adds the function of measuring special particle color, which can detect the aluminum foil characteristics of paint.

• Using LED light source, long life, no need to replace for ten years

• Meet the color measurement of effect topcoats with particles


• Support three-angle measurement to meet different measurement angle requirements

• The Bluetooth version can be customized to connect mobile devices such as mobile phones

• Small opening for easy measurement of curved surfaces

• large storage space

• Special test car paint

Features

1. Measure the color data at three angles of 15°, 45°, and 110°, and can measure the color and effect data of the effect topcoat.

2. Adopt stable and long-life LED light source, which can be used for up to 10 years

3. In order to ensure the stable placement of the instrument during measurement, a pressure contact is installed at the bottom of the multi-angle Colorimeter. The instrument will display an error message unless the contacts are in full contact with the measuring surface

4. Built-in LCD display, you can view the measurement results in real time

5. Built-in lithium battery, can measure data anytime and anywhere

6. You can connect mobile phones or computers and other devices via Bluetooth, no longer constrained by data lines

7. Measuring the particle level, more comprehensive measurement of the effect finish

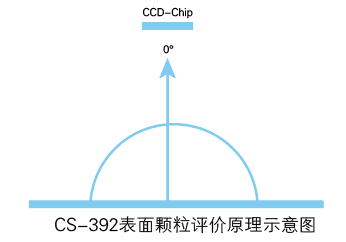

8. Under the conditions of simulating direct sunlight and diffuse light, use a high-resolution CMOS sensor to measure and control the particle level

Applications

1. Automobile paint formula search

CS-390 and CS-392 multi-angle color measuring instruments have faster and more accurate paint color retrieval and matching capabilities. The color measuring instrument is combined with automotive refinish paint formula color measurement software, which can greatly improve the accuracy of color matching and retrieval capabilities , so as to improve the efficiency of automobile repair.

2. The factory quality inspection of the mobile phone effect back cover

At present, more and more colorful effects are used on the back cover of mobile phones. Today, with the vigorous development of 5G, the mobile phone industry is about to usher in spring, and the quality inspection of the mobile phone back cover is becoming more and more important. CS-390 and CS-392 multi-angle The color measuring instrument can well solve the color quality inspection problem of the colorful effect back shell.

plan

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
