CHNSPEC TH-100 Haze Meter 15mm/21mm

TH-100

haze meter

Using CIE-A, CIE-C, CIE-D65 Light source, can measure haze and transmittance, TH-100 haze meter measurement aperture size of 15mm/21mm, suitable for plastic, film, Glass, LCD panel, touch screen and other fields.

Introduction

CHNSpec TH-100 haze meter is suitable for one-stop measurement solution of haze and transmittance of transparent and translucent materials such as plastic, film, glass, LCD panel, touch screen, etc.

Instrument introduction

1. Meet the following test standards: GB/T 2410 standard, ASTM D 1003 standard, ISO 13468 standard, ISO 14782 standard

2. Satisfy the measurement of haze and total transmittance under the three standard lighting sources of CIE-A, CIE-C and CIE-D65

3. No need to warm up, ready-to-use test, the test time is only 2 seconds

4. Adopt LED light source, long service life, no need to replace for ten years

5. Attached computer data management software, which can print test reports

6. The instrument can store 20,000 sets of data

7. It is possible to compare and measure the sample and the standard sample to realize the judgment of qualified products

8. The instrument has its own accessory storage drawer, which is convenient for the storage and protection of accessories

9. With an open measurement area, it liberates the restriction on the size of the sample

10. It adopts 5.0-inch TFT display screen and has a good human-computer interaction interface

11. Support vertical measurement and horizontal measurement, to meet the test of different samples such as sheet, film and liquid

12. Small size, weight 6kg, easy to carry

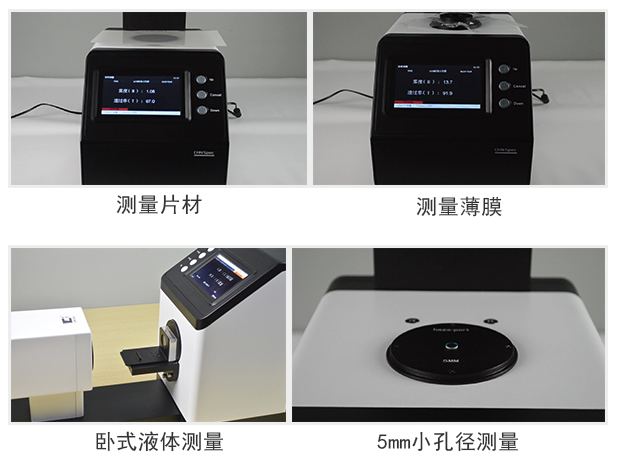

test case

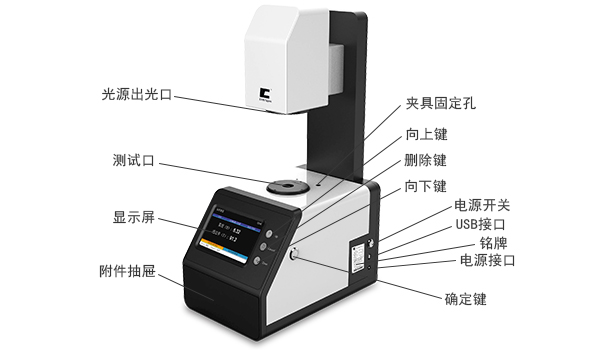

structure diagram

Packing list：Whole machine x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
