TEELEN DXS-1 Inverted Biological Microscope

SE
Trinocular Inverted Biological Microscope 100-400 times, with 10X phase contrast objective
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

Teelen DXS-1 Inverted Biological MicroscopeSPEC

Teelen DXS-1 Inverted Biological MicroscopeDetails

Teelen DXS-1 Inverted Biological MicroscopePacking list

SKU
NB025466
Eyepiece tube
Three eyepieces, 30 ° tilt
Focusing system
Coaxial coaxial fretting focusing, with locking and limiting device, fretting grid value: 2 μm.
converter
Four holes (inward ball positioning)
stage
Double-decked mechanical moving stage, moving range: 30mm in longitudinal direction, 75mm in transverse direction. Culture dish pallet 1: inner groove size: 68mm; culture dish pallet 2: inner groove size: 34mm (width) X77.5mm (length), can be adapted to round culture dish < unk > 68.5mm
condenser
Plug-in phase contrast condenser working distance 30mm.
lighting system
6V20W halogen lamp, adjustable luminance
Color filter
Frosted Glass, Blue and Green Color Filters
DXS-1
Inverted Biological Microscope
Trinocular Inverted Biological Microscope 100-400 times, with 10X phase contrast objective

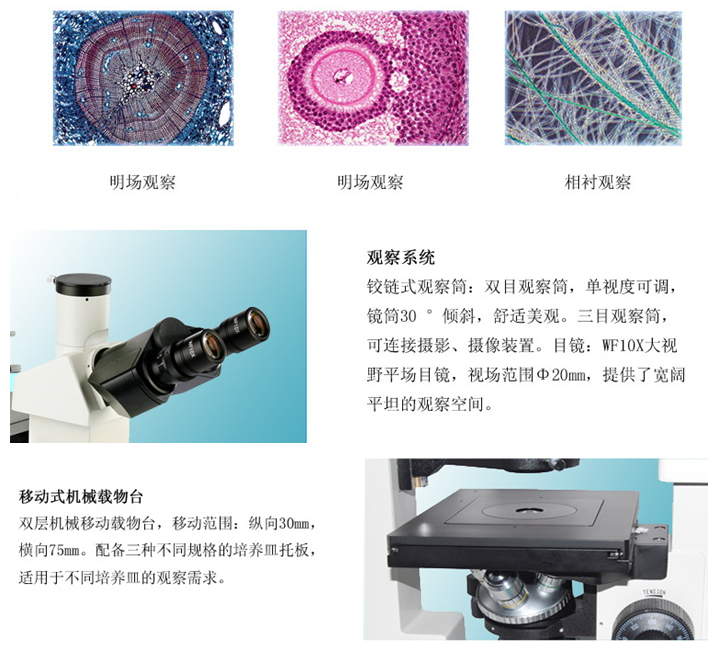

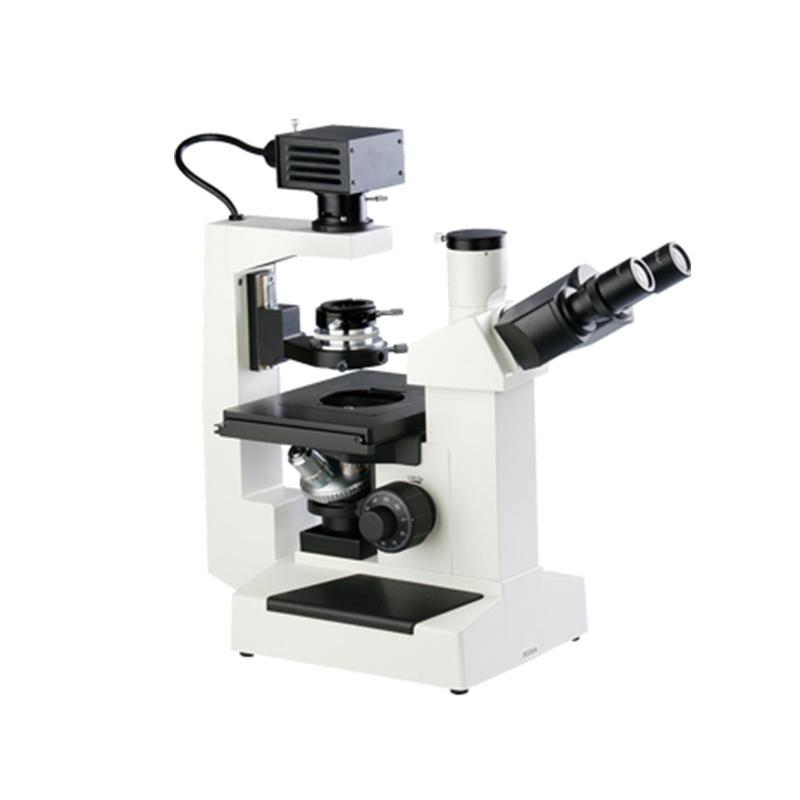

TEELEN DXS-1 Inverted Biological Microscope Picture

Instrument Introduction

DXS-1 Inverted Biological Microscope is equipped with long working distance plan achromat objective lens, wide field eyepiece and adjustable condenser. The product is compact in structure and the design of the operating part is reasonable, which makes the observer feel relaxed and comfortable during the operation of the instrument. The product is suitable for microscopic observation of cell tissue and transparent liquid tissue, as well as dynamic microscopic observation of cultured tissue in a petri dish. It can be applied to scientific research institutes, colleges and universities, medical and health, inspection and quarantine, agriculture, animal husbandry and dairy and other departments


FAQ
QIs there a Microscope that can conform to the pathological section, connect the computer, and invert these parameters?
A DXS-1 plus UC500 camera
QDo you have the inverted biological Microscope involved in GB/T4074.10?
A The DXS-1 Inverted Biological Microscope will do
